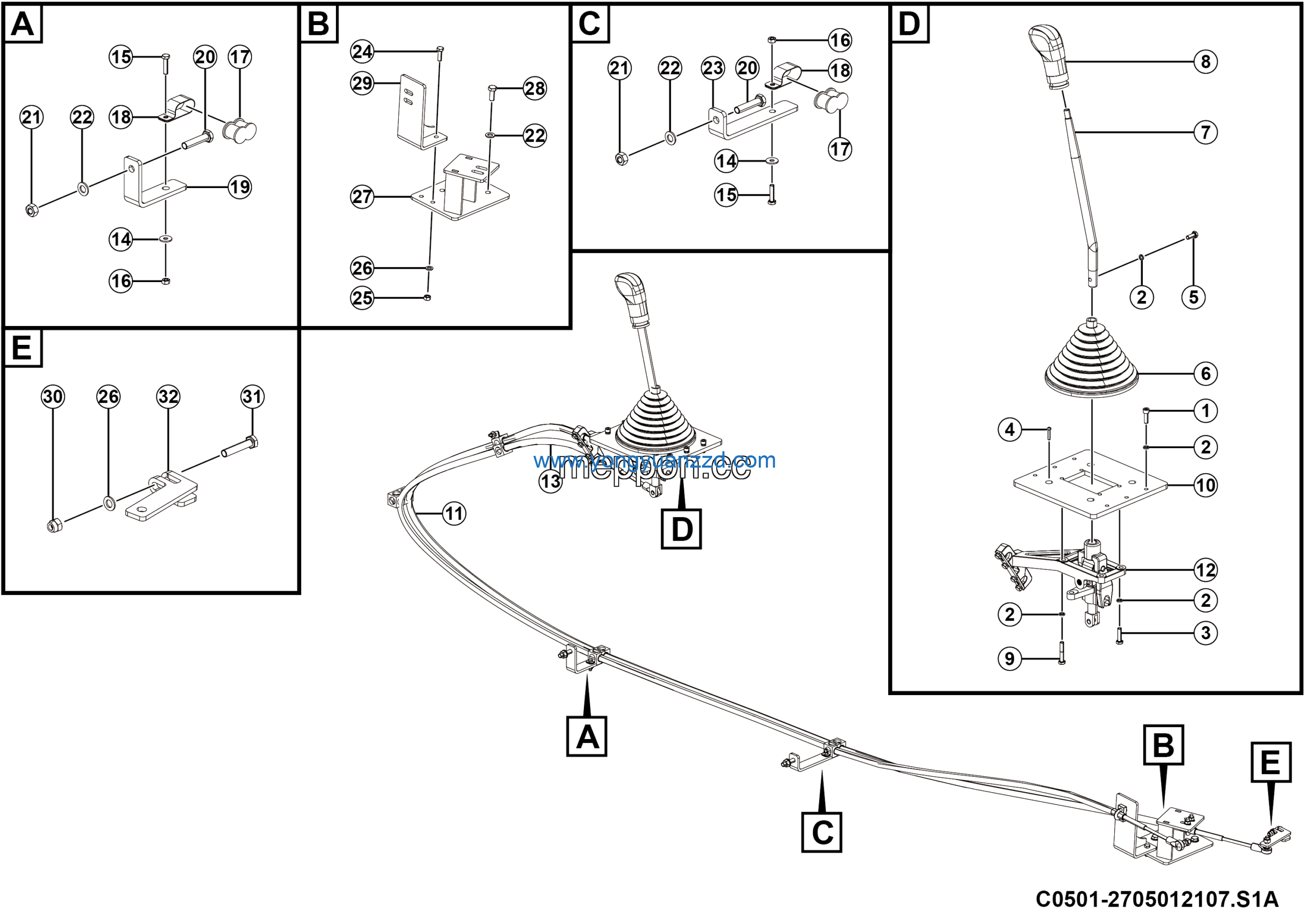

LGMG MT106H 2025 – Shift-control assembly – C0501-2705012107.S1A
Category: 2025 > MT106H > M106HW3A0M707
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Block | 27050105101 | 1 |
| 2 | Selector cable assy3700 | 4110707857 | 1 |
| 3 | Controller（RH） | 4110705489 | 1 |
| 4 | Shift cable assy 3900 | 4110707858 | 1 |
| 5 | Washer GB96.1-6EpZn-300HV | 4015000198 | 3 |
| 6 | Bolt GB5783-M6*25EpZn-8.8 | 4011000276 | 3 |
| 7 | Nut GB6170-M6EpZn-8 | 4013000028 | 3 |
| 8 | Grommet | 27050109751 | 3 |
| 9 | Clamping band | 27050109741 | 3 |
| 10 | Support ⅰ | 27050106571 | 1 |
| 11 | Screw GB70.1-M8*25-8.8 | 4014000171 | 6 |
| 12 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 2 |
| 13 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 14 | Washer GB97.1-10EpZn-300HV | 4015000162 | 5 |
| 15 | Support plate | 27050109101 | 1 |
| 16 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 2 |
| 17 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 18 | Washer GB97.1-8EpZn-300HV | 4015000072 | 3 |
| 19 | 1 | 27050115051 | 1 |
| 20 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 3 |
| 21 | Selecting flexible shaft welding | 27050120752 | 1 |
| 22 | Washer GB93-8-65Mn | 4015000036 | 11 |
| 23 | Nut GB889.1-M8EpZn-8 | 4013000210 | 1 |
| 24 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 1 |
| 25 | Rocker selection | 27050111022 | 1 |
| 26 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 2 |
| 27 | Screw GB818-M5*25EpZn-4.8 | 4014010009 | 4 |
| 28 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 1 |
| 29 | Dust cover assembly | 27050101191 | 1 |
| 30 | Transmission control lever | 27050106171 | 1 |
| 31 | Shift lever | 27050105251 | 1 |
| 32 | Bolt GB5782-M8*45EpZn-8.8 | 4011000298 | 2 |
