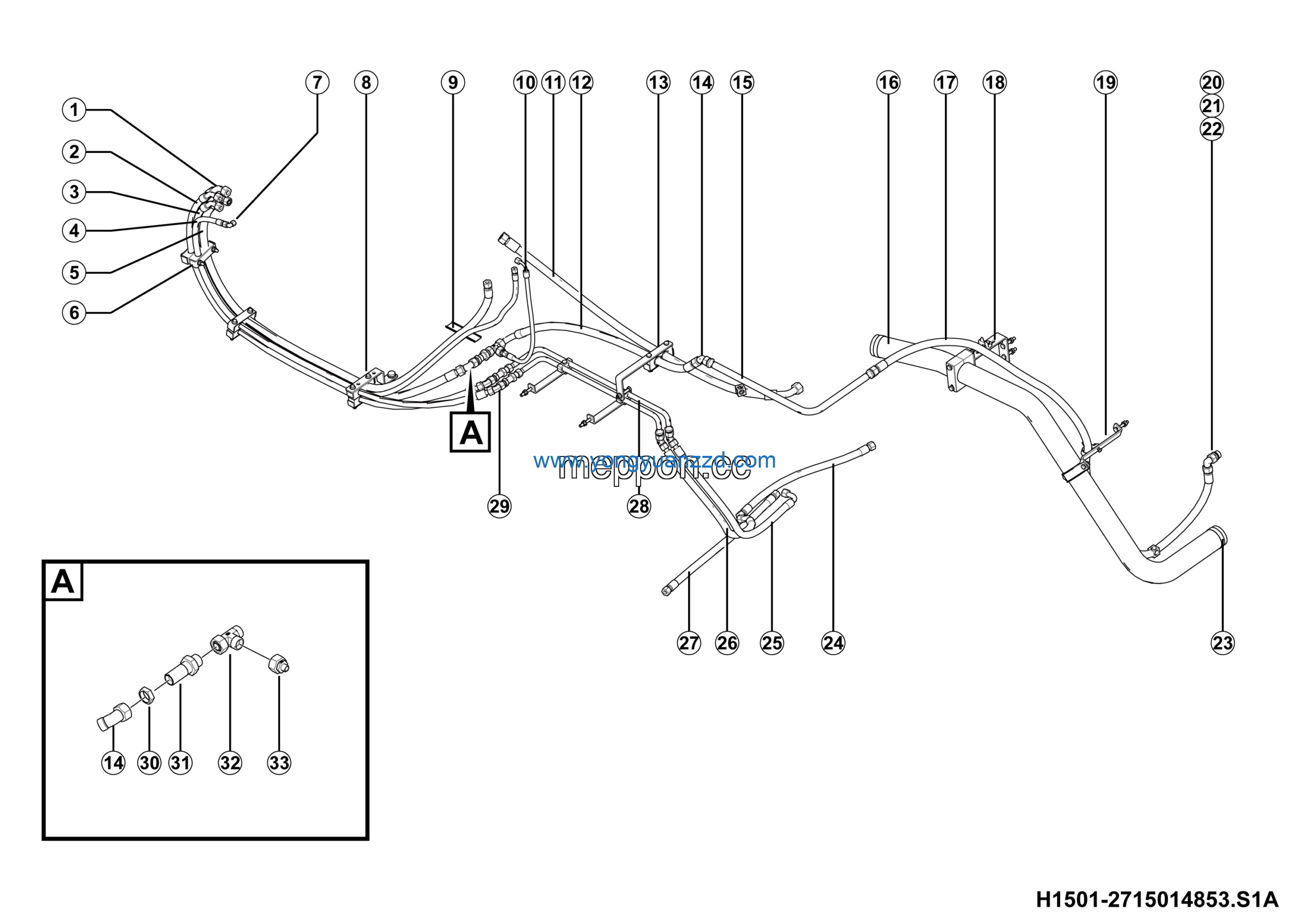

LGMG MT106H 2025 – Steering accessories assy – H1501-2715014853.S1A
Category: 2025 > MT106H > M106HW3E0M012
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose F481CACF080804-550 | 4120705421-005 | 1 |
| 2 | Hose f351tccace222212-1370 | 4120711794-003 | 1 |
| 3 | Hose f481cacf181810-1100 | 4120711793-003 | 1 |
| 4 | Hose holder assembly | 27150144831 | 1 |
| 5 | Combination joint LGB143-12616 | 4041001417 | 2 |
| 6 | Return steel pipe welding | 27150129021 | 1 |
| 7 | Oil suction hose 80*6 | 27150140171 | 1 |
| 8 | Hose f481caca181810-2150 | 4120712185-002 | 1 |
| 9 | Bracket assy 01 | 27150148551 | 1 |
| 10 | Oil suction bracket assembly | 27150128991 | 1 |
| 11 | Hose LGB166-010180 | 4041010169-005 | 1 |
| 12 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 13 | O-ring LGB168-12331 | 4041000779 | 1 |
| 14 | Straight joint LGB120-02628 | 4041000796 | 1 |
| 15 | Butterfly spring clamp φ70-φ92 | 4190708164 | 2 |
| 16 | Hose F351TCCACA151508-700-AG | 4120711551-003 | 1 |
| 17 | Hose F351TCCACF151508-950-AG | 4120713720 | 1 |
| 18 | Hose F351TCCACE151508-800-AG | 4120713721 | 1 |
| 19 | Hose F351TCCACA151508-700-AG | 4120711551-002 | 1 |
| 20 | Steering pipe assembly | 27150129091 | 1 |
| 21 | Combination joint LGB143-12213 | 4041001218 | 3 |
| 22 | Hose LGB129-006187 | 4041010379-008 | 1 |
| 23 | Nut | 27150103221 | 1 |
| 24 | Clapboard joint m26 | 27150116661 | 1 |
| 25 | Tee CC-26 | 4190002536 | 1 |
| 26 | Reducing joint RED18/08LOMDCF | 4120001300 | 1 |
| 27 | Hose LGB129-006187 | 4041010379-009 | 1 |
| 28 | Hose F481CACA080804-2400 | 4120707111-001 | 1 |
| 29 | Hose f351tccaca151508-2050 | 4120711798-001 | 1 |
| 30 | Pipe rubber clamp assy | 27150120831 | 2 |
| 31 | Combination joint LGB143-01406 | 4041001047 | 1 |
| 32 | Holder assembly b | 27150128981 | 1 |
| 33 | Cable protector | 27140108701 | 1 |
