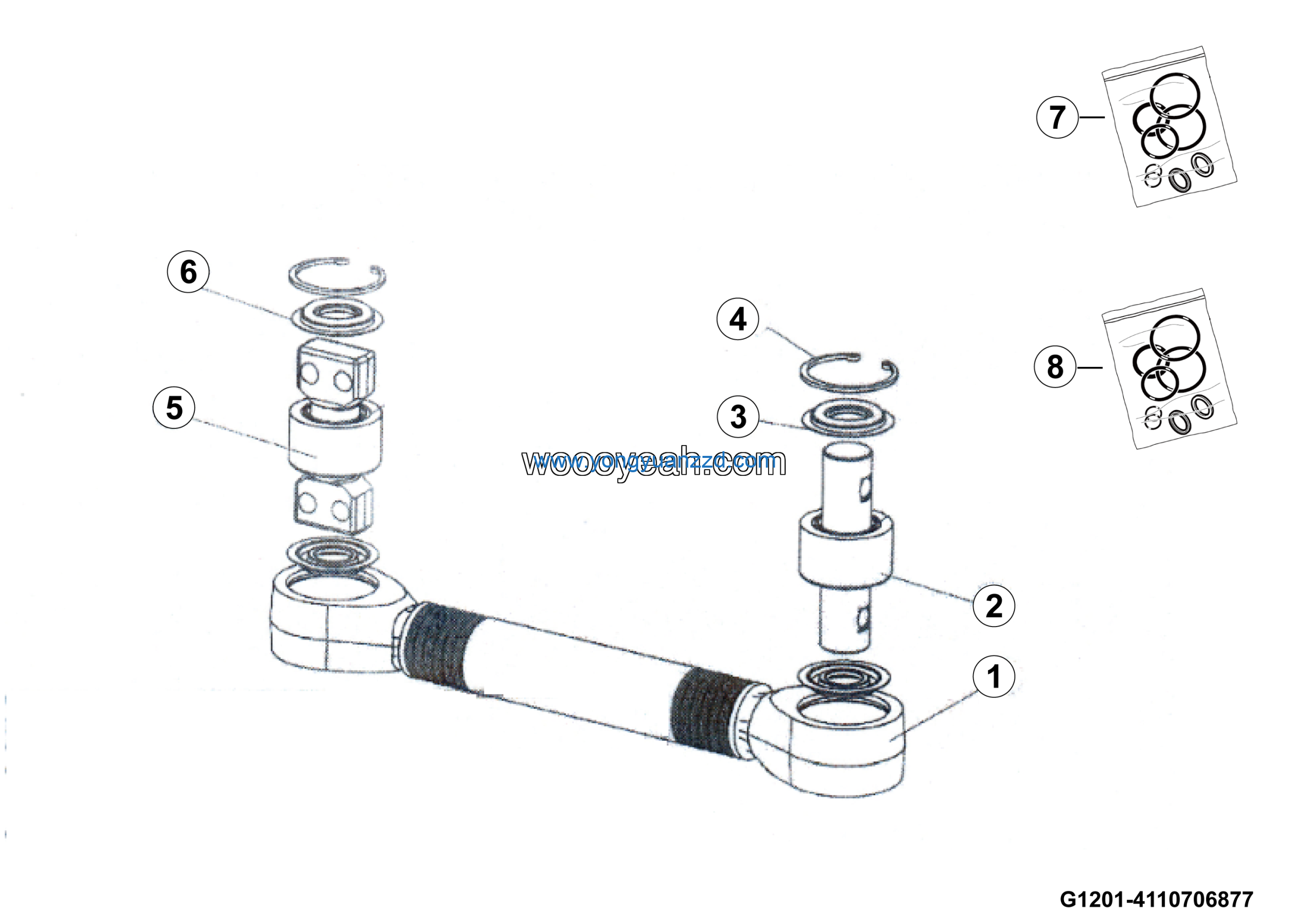

LGMG MT106H 2025 – UPPER THE THRUST ROD ASSEMBLY – G1201-4110706877
Category: 2025 > MT106H > M106HW3A0M707
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Torque rod body L738D95T12d98 | 4110706876001 | 1 |
| 2 | Bushing assy | 4110706876002 | 1 |
| 3 | Sealing ring 112 | 4110706877003 | 2 |
| 4 | Snap ring 112×5 | 4110706877004 | 2 |
| 5 | Bushing assy | 4110706877005 | 1 |
| 6 | Scraper seal | 4110705577002 | 2 |
| 7 | THE THRUST RODREPAIR BAG | 4110706907 | 1 |
| 8 | THE THRUST RODREPAIR BAG | 4110706908 | 1 |
