LGMG Off-Highway Dump Truck 2022 – Upper thrust rod assy LG12-698 – G1200-4110703194
Category: 2022 > Off-Highway Dump Truck > MT106M > M106MW3A0M001

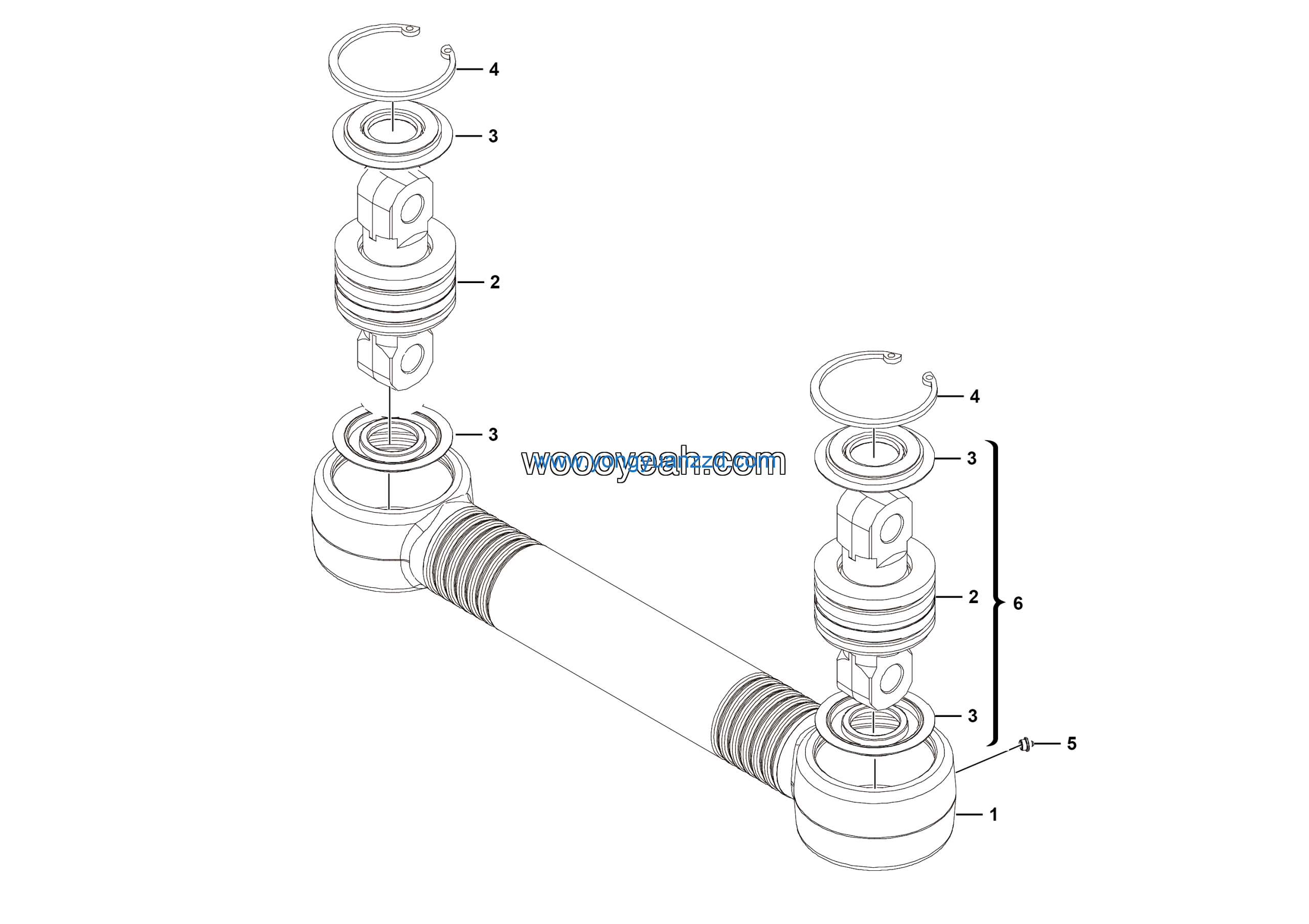

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Upper thrust rod body | 4110703194001 | 1 |
| 2 | Joint ball pin assy CY3034F | 4110703034005 | 2 |
| 3 | Scraper seal | 4110703034003 | 4 |
| 4 | Retaining ring for hole | 4110703034004 | 2 |
| 5 | Grease nipple JB7940.1-M10*1 | 4030000065 | 2 |
| 6 | Thrust rod ball pin repair kit（Spherical bearing type） | 4110703038 | 1 |
