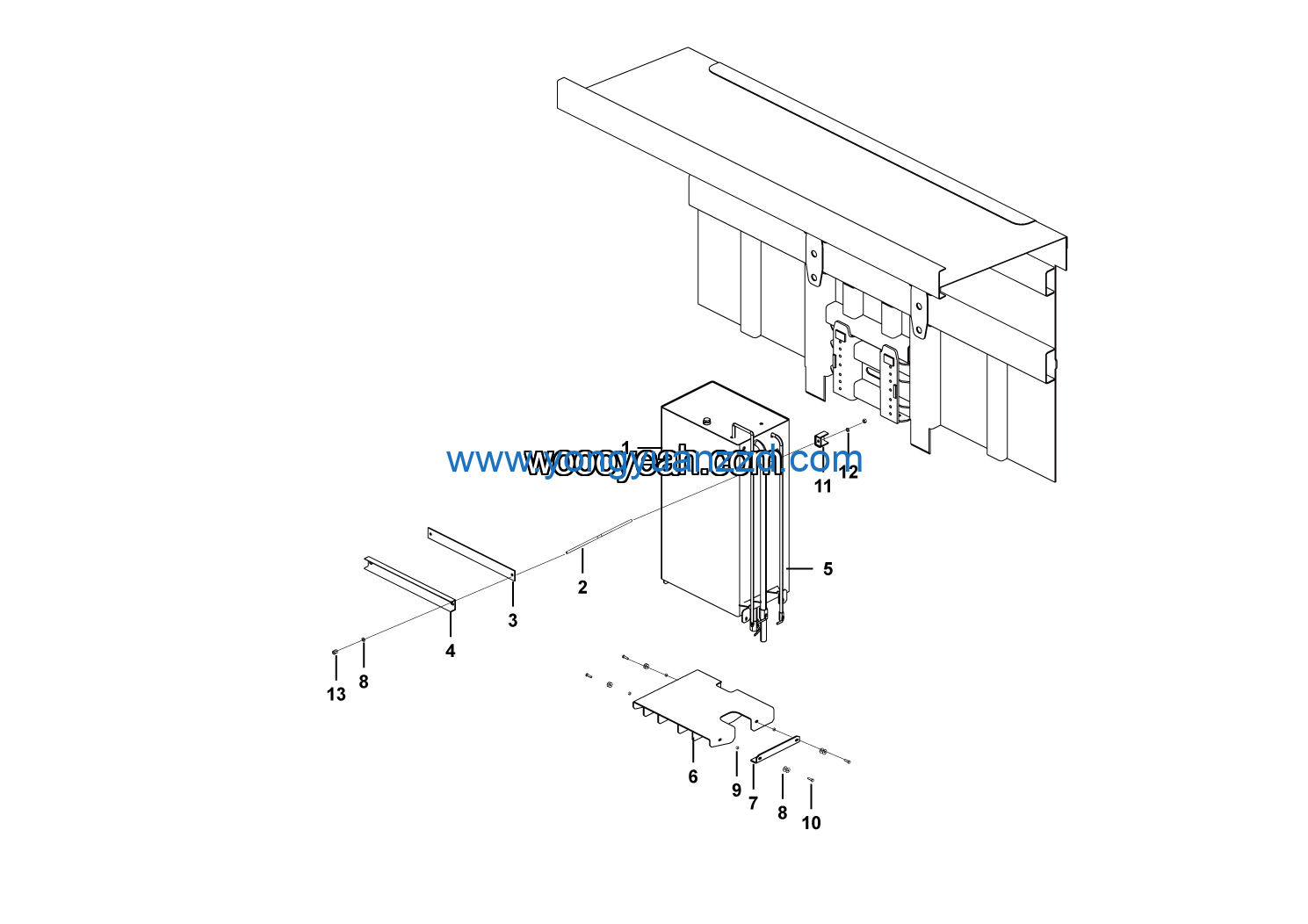

LGMG MT106H 2025 – WATER TANK ASSEMBLY – J3801-2738010634
Category: 2025 > MT106H > M106HW3A0M811
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 2 | The spray tank lock | 27380102811 | 4 |
| 3 | Washer GB97.1-16EpZn-300HV | 4015000181 | 4 |
| 4 | Nut GB6170-M16EpZn-8 | 4013000016 | 8 |
| 5 | Spray water tank weldment LG16-PLSX（Flame red） | 4120710544 | 1 |
| 6 | Stud | 27380102801 | 4 |
| 7 | Rubber plate | 27380102461 | 2 |
| 8 | Plate | 27380106491 | 2 |
| 9 | Spraying tank sign | 27220104902 | 1 |
| 10 | Seat | 27380106501 | 1 |
| 11 | Plate | 27380106481 | 1 |
| 12 | Washer GB96.1-12EpZn-300HV | 4015000186 | 8 |
| 13 | Nut GB6170-M12EpZn-8 | 4013000011 | 4 |
