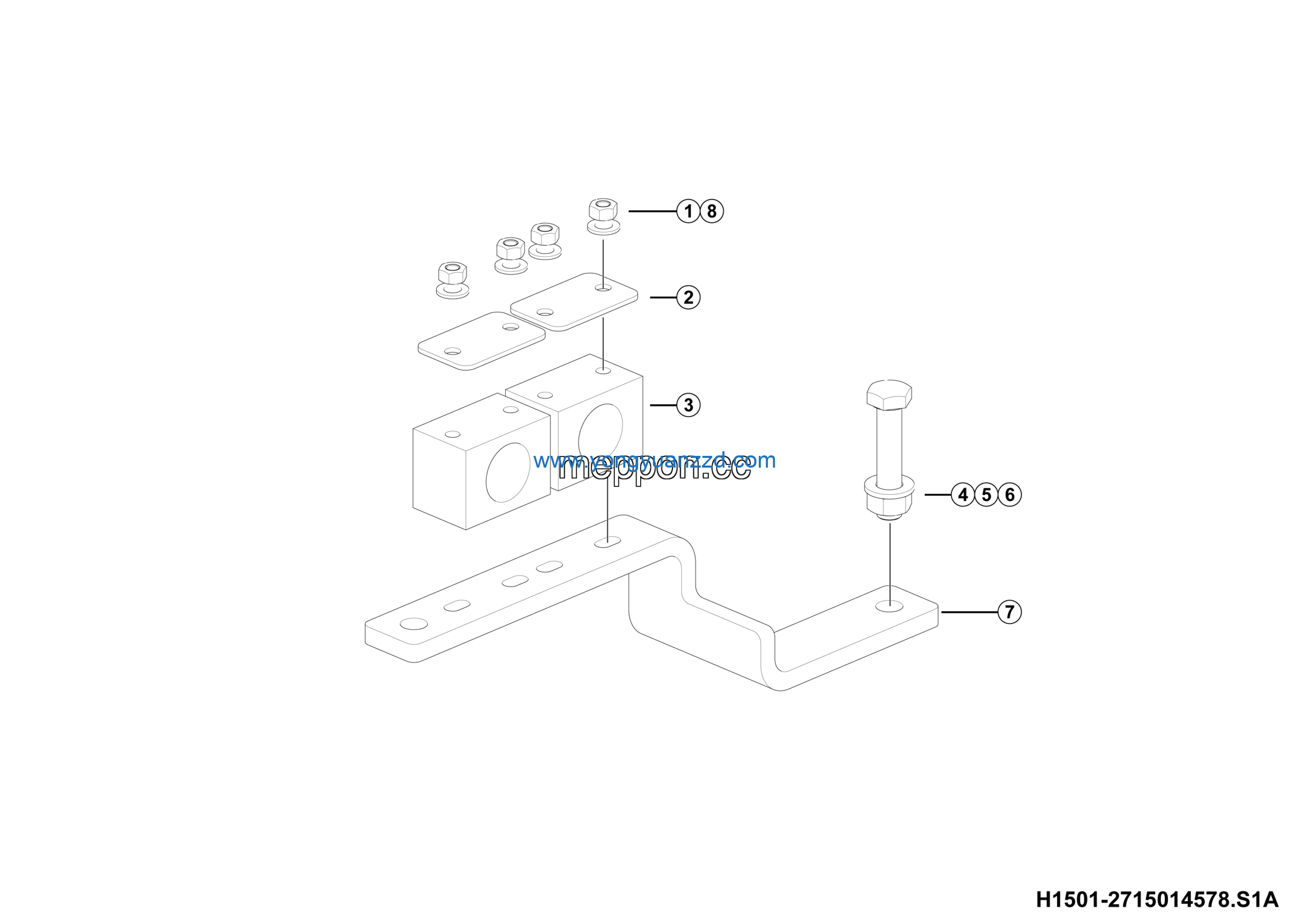

LGMG MT116H 2025 – Bracket assy 02 – H1501-2715014578.S1A
Category: 2025 > MT116H > M116HY3A0M041
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M6EpZn-8 | 4013000028 | 4 |
| 2 | Blind flange 48*30*3 | 27150132491 | 2 |
| 3 | Pipe clamp TLPG-325 | 4120712636 | 2 |
| 4 | Bracket 255*75*59.5 | 27150145761 | 1 |
| 5 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 1 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 7 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 8 | Washer GB96.1-6flZnyc-300HV-480 | 4015010296 | 4 |
