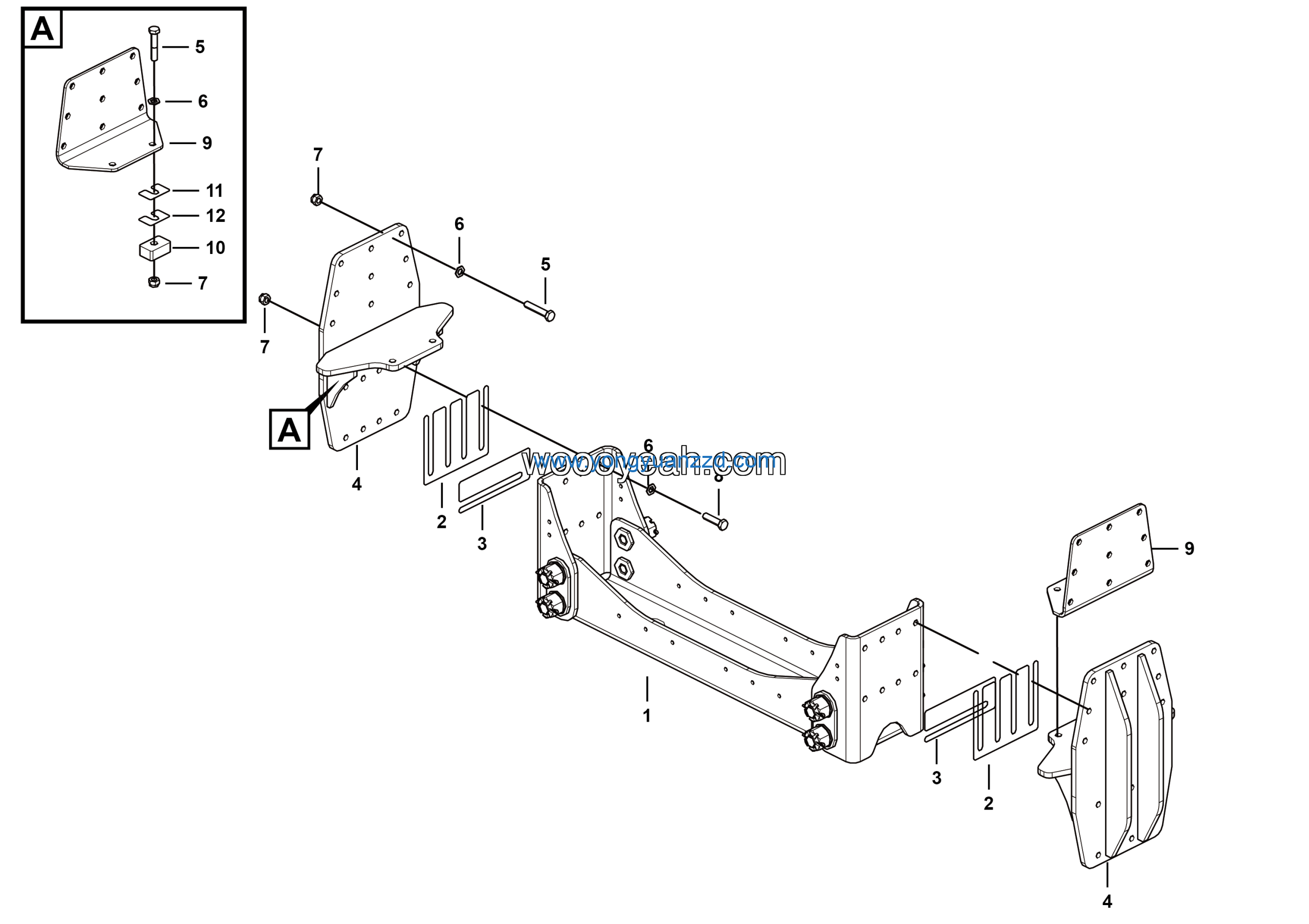

LGMG MT126H 2025 – Cross Beam Installation Assembly – G1201-2712017579.S1A
Category: 2025 > MT126H > C126HC3A0M009
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Support pad | 27120175471 | 4 |
| 2 | sdjusting shim | 27120118411 | 4 |
| 3 | adjusting shim | 27120118401 | 4 |
| 4 | Cross beam assembly | 27120175421 | 1 |
| 5 | Adjusting shim | 27120175481 | 2 |
| 6 | Adjustment gasket | 27120117822 | 2 |
| 7 | Welding of cross beam side seat | 27120175431 | 2 |
| 8 | BOLT GB5782-M16*85flZnyc-12.9-480 | 4011010545 | 22 |
| 9 | Washer GB97.1-16EpZn-300HV | 4015000181 | 76 |
| 10 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 38 |
| 11 | Bolt GB5782-M16*60flZnyc-12.9-480 | 4011010623 | 16 |
| 12 | Bending plate | 27120175461 | 2 |
