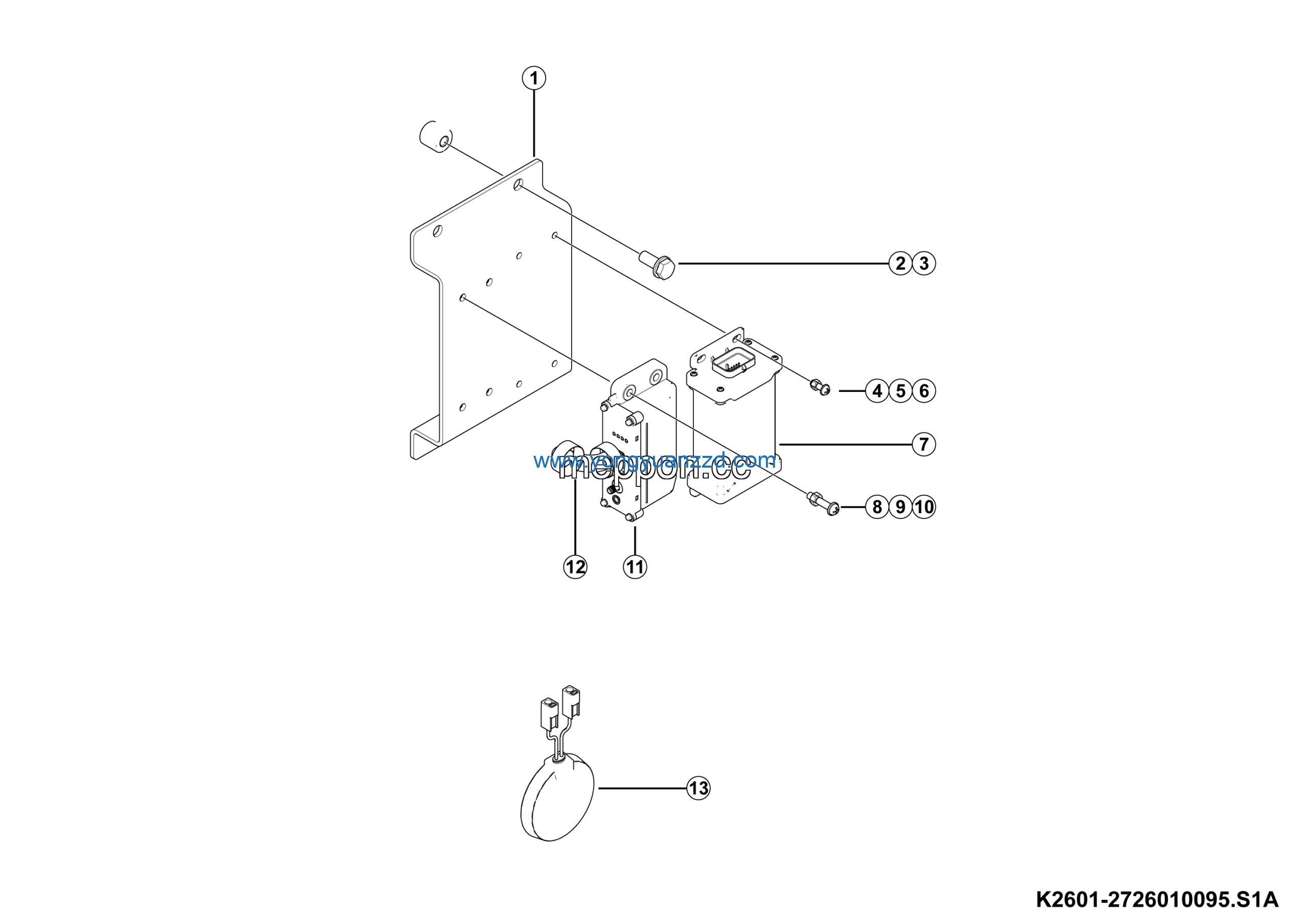

LGMG MT126H 2025 – Gps assy (cummins engine) – K2601-2726010095.S1A
Category: 2025 > MT126H > C126HC3A0M009
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M6EpZn-8 | 4013000028 | 4 |
| 2 | T-BOX GPS-YK10034CC | 4130712783 | 1 |
| 3 | Gps adapter harness 200 | 2726010069-001 | 1 |
| 4 | Communication antenna | 4130712784 | 1 |
| 5 | Bracket 245*160*40 | 27200190291 | 1 |
| 6 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 7 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 8 | Screw GB818-M5*16EpZn-4.8 | 4014000088 | 4 |
| 9 | Washer GB97.1-5EpZn-300HV | 4015000110 | 4 |
| 10 | Nut GB6170-M5EpZn-8 | 4013010029 | 4 |
| 11 | Torque limiting controller mtdjlylg126h-11(gd) | 4130713620 | 1 |
| 12 | Screw GB818-M6*30EpZn-4.8 | 4014010010 | 4 |
| 13 | Washer GB97.1-6EpZn-300HV | 4015000207 | 4 |
