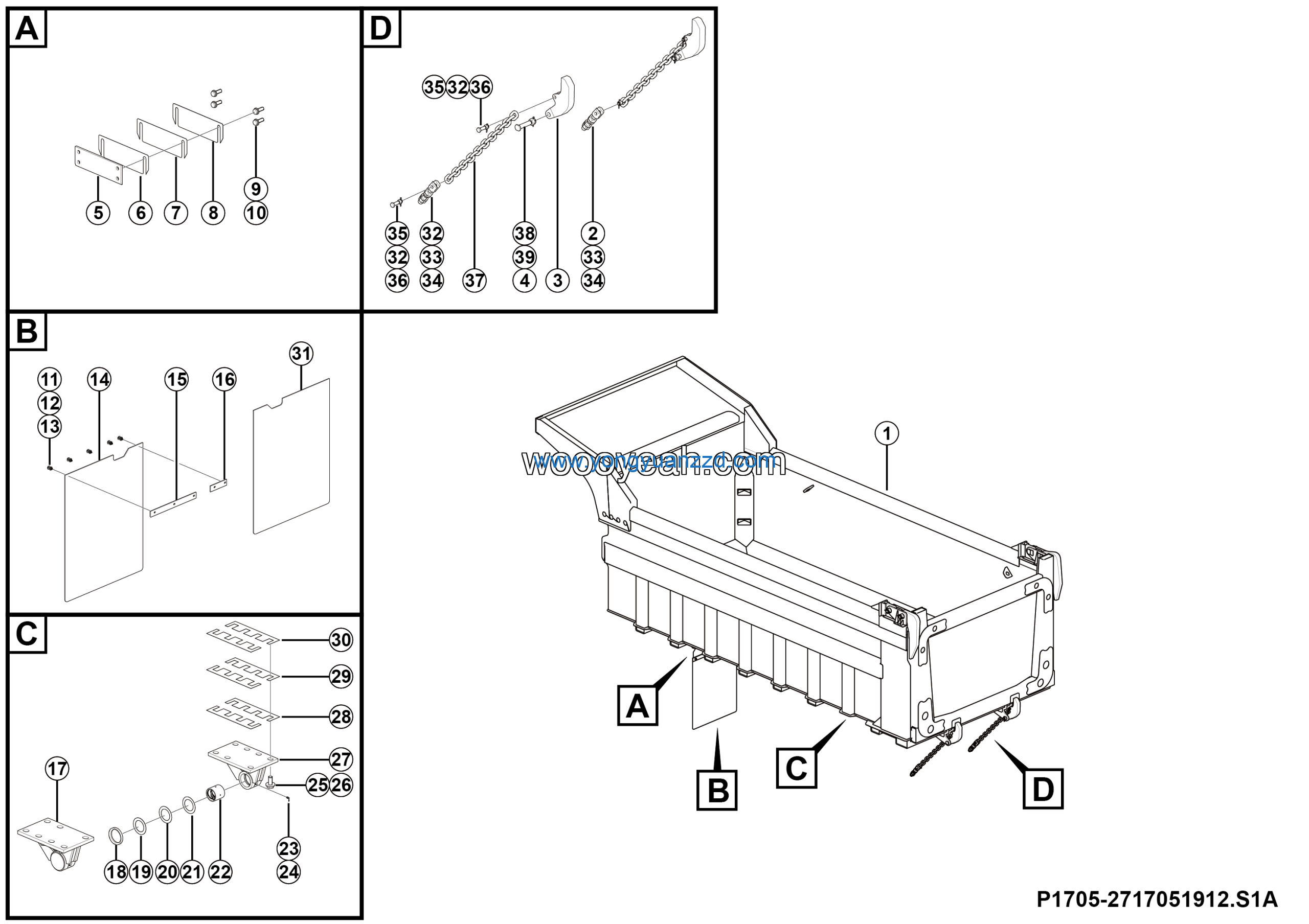

LGMG MT50 2025 – Body assy – P1705-2717051912.S1A
Category: 2025 > MT50 > M0500Y3E0M302
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
| 2 | Bolt GB5783-M8*35EpZn-8.8 | 4011000195 | 10 |
| 3 | Washer GB96.1-8EpZn-300HV | 4015000256 | 20 |
| 4 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 10 |
| 5 | Mud skin | 27170171821 | 1 |
| 6 | Plate | 27170171841 | 2 |
| 7 | Plate | 27170171831 | 2 |
| 8 | Flip seat | 27170171683 | 1 |
| 9 | Swivel seat spacer | 27170171771 | 2 |
| 10 | Swivel seat adjusting gasket | 27170171892 | 2 |
| 11 | Body wldmt | 27170519131 | 1 |
| 12 | Swivel seat adjusting gasket | 27170171882 | 2 |
| 13 | Swivel seat adjusting gasket | 27170171872 | 2 |
| 14 | Shaft sleeve | 27170175191 | 2 |
| 15 | Grease nipple JB7940.1-M10*1 | 4030000065 | 2 |
| 16 | Butter nozzle cap JXHF-00006 | 4120000015 | 2 |
| 17 | Bolt GB5786-M30*2*70EpZn-10.9 | 4011010282 | 16 |
| 18 | WASHER | 4015010208 | 16 |
| 19 | Flip seat | 27170171903 | 1 |
| 20 | Adjustibe heel plate 1 | 27170106822 | 4 |
| 21 | Adjustibe heel plate 2 | 27170106832 | 4 |
| 22 | Connecting yoke | 27170297203 | 2 |
| 23 | Adjusting shim3 | 27170117672 | 4 |
| 24 | Mud skin | 27170171851 | 1 |
| 25 | Nut GB6178-M16EpZn-8 | 4013000057 | 4 |
| 26 | Nut GB6170-M30EpZn-8 | 4013000173 | 4 |
| 27 | Nut GB6172.1-M30EpZn-8 | 4013000175 | 4 |
| 28 | Plate | 27170366964 | 4 |
| 29 | Pin GB91-5*45EpZn-Q235A | 4016010004 | 4 |
| 30 | Φ16 CHAIN | 27170123461 | 2 |
| 31 | Plate | 27170366972 | 2 |
| 32 | Nut GB6178-M24EpZn-10 | 4013010219 | 2 |
| 33 | Plate | 27170346761 | 2 |
| 34 | Pin GB91-6.3*50EpZn-Q235A | 4016000040 | 2 |
| 35 | Plate | 27170171781 | 2 |
| 36 | Side limit adjusting gasket | 27170171791 | 2 |
| 37 | Side limit adjusting gasket | 27170171801 | 2 |
| 38 | Side limit adjusting gasket | 27170171811 | 2 |
| 39 | Bolt GB5786-M12*1.5*35EpZn-8.8 | 4011010010 | 8 |
