LGMG MT50 2025 – Bracket installation 01 – H1501-2715013707.S1A
Category: 2025 > MT50 > M0500Y3E0M103

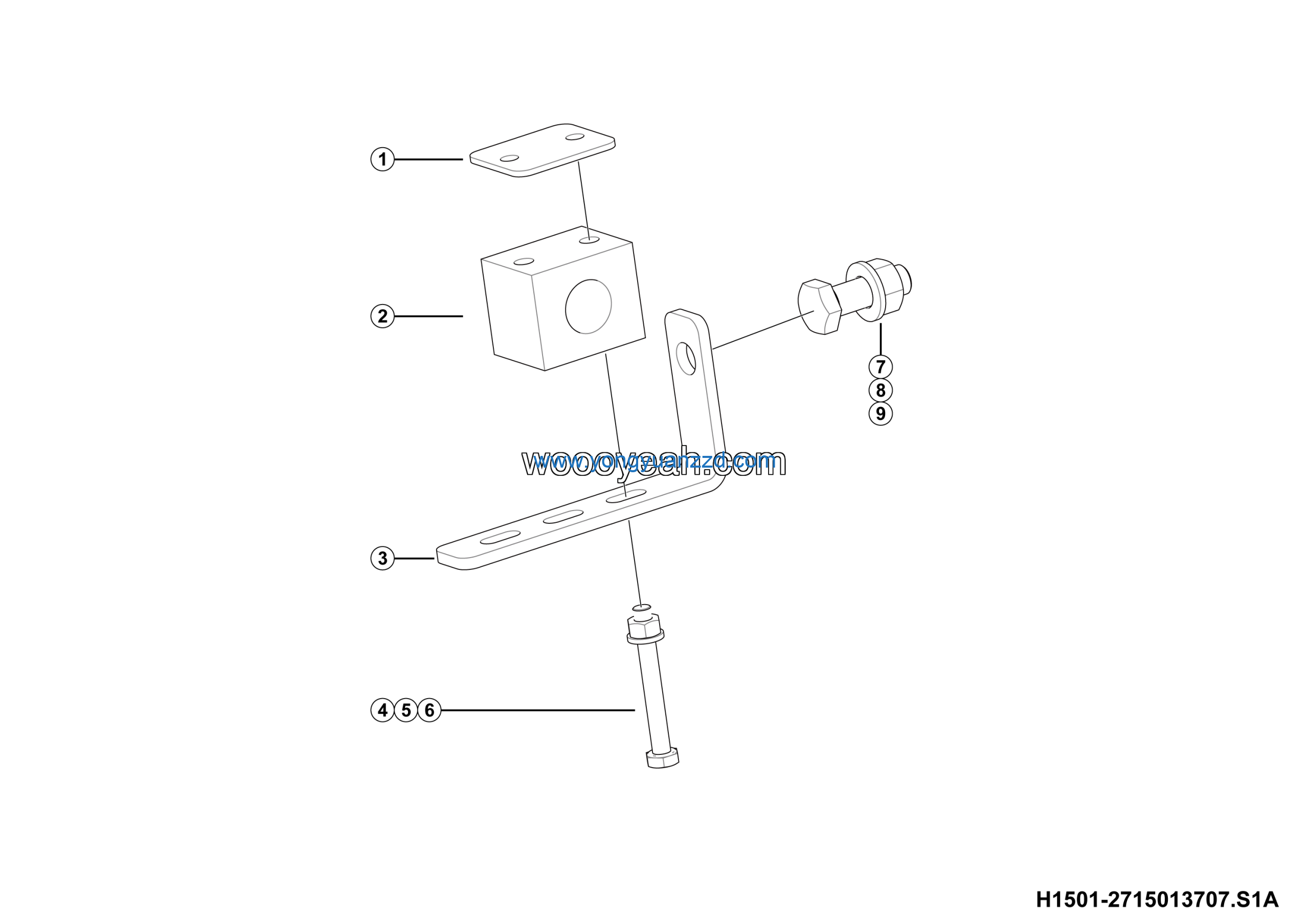

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Cover plate 40*33*2 | 27150137091 | 1 |
| 2 | Pipe clamp TLPG-218 | 4120713170 | 1 |
| 3 | Bracket 105*58*20 | 27150137101 | 1 |
| 4 | Bolt GB5783-M6*50EpZn-8.8 | 4011010249 | 2 |
| 5 | Washer GB97.1-6EpZn-300HV | 4015000207 | 2 |
| 6 | Nut GB6170-M6EpZn-8 | 4013000028 | 2 |
| 7 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 1 |
| 8 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 9 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
