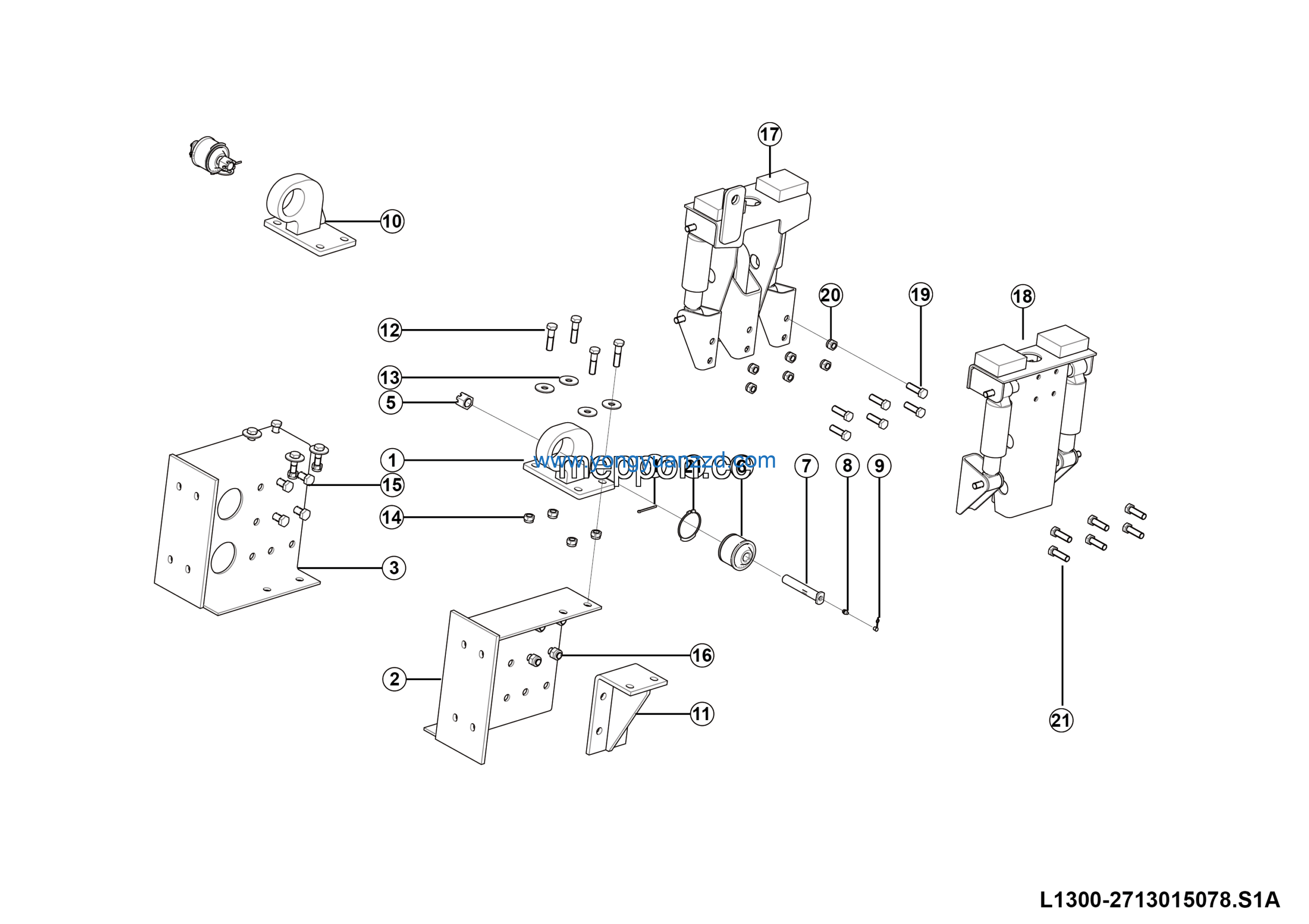

LGMG MT50 2025 – Cab mounting assy – L1300-2713015078.S1A
Category: 2025 > MT50 > M0500Y3E0M302
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Right mount weldment | 27130145831 | 1 |
| 2 | Support weldment | 27130145791 | 2 |
| 3 | Bolt GB5783-M14*65EpZn-10.9 | 4011010013 | 4 |
| 4 | Washer GB96.1-14EpZn-300HV | 4015000188 | 8 |
| 5 | Nut GB6185.1-M14EpZn-10 | 4013010135 | 8 |
| 6 | Bolt GB5783-M16*60EpZn-8.8 | 4011000594 | 8 |
| 7 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 8 |
| 8 | Right rear mounting assy | 27130145691 | 1 |
| 9 | Left rear mounting assy | 27130145681 | 1 |
| 10 | Bolt GB5783-M14*45EpZn-8.8 | 4011000203 | 12 |
| 11 | Left mount | 27130145821 | 1 |
| 12 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 12 |
| 13 | Snap ring GB894.1-70-65Mn | 4015010218 | 2 |
| 14 | Bolt GB5783-M14*55EpZn-10.9 | 4011010277 | 4 |
| 15 | Lh connection plate wldmt | 27130150791 | 1 |
| 16 | Rh connection plate wldmt | 27130150831 | 1 |
| 17 | Pin GB91-4*45EpZn-Q235A | 4016000057 | 2 |
| 18 | Nut GB6179-M20*1.5-10 | 4013010003 | 2 |
| 19 | Shock absorber | 4190000306 | 2 |
| 20 | Pin | 27130103521 | 2 |
| 21 | Grease nipple JB7940.1-M8*1 | 4030000525 | 2 |
| 22 | Butter nozzle cap JXHF-00006 | 4120000015 | 2 |
