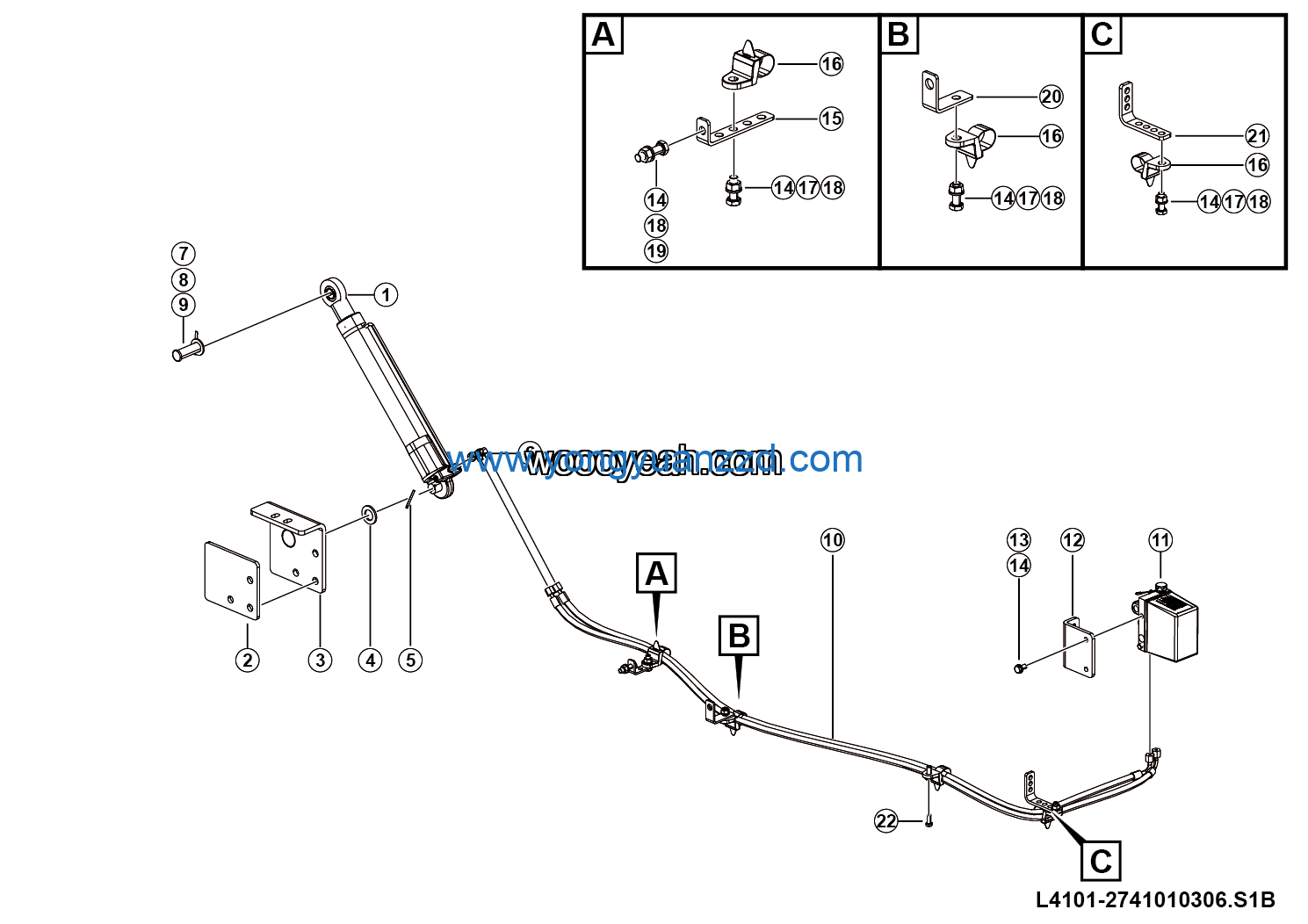

LGMG MT50 2025 – Cab tilting hyd assy – L4101-2741010306.S1B
Category: 2025 > MT50 > M0500Y3E0M302
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose F481CACF060604-1800 | 4120712218-010 | 2 |
| 2 | Hand pump | 4120001103 | 1 |
| 3 | Hand pump anchor plate | 27410100032 | 1 |
| 4 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 2 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 6 |
| 6 | Bracket 120*20*35 | 27410103051 | 1 |
| 7 | Cable tie HS-J117 | 4130704969 | 4 |
| 8 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 3 |
| 9 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 10 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 1 |
| 11 | Cab overturning cylinder | 4120001145 | 1 |
| 12 | Bracket | 27410100501 | 1 |
| 13 | L bracket 100*25*70 | 27150129891 | 1 |
| 14 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 15 | Plate 170*145*8 | 27410103091 | 1 |
| 16 | Tipping cylinder bracket weldment | 27410103071 | 1 |
| 17 | Washer GB97.1-24EpZn-300HV | 4015000167 | 1 |
| 18 | Pin GB91-4*45EpZn-Q235A | 4016000057 | 1 |
| 19 | Combination joint LGB143-01205 | 4041010126 | 2 |
| 20 | Pin GB882-B22*75EpZn-35 | 4016010114 | 1 |
| 21 | Washer GB97.1-22EpZn-300HV | 4015000184 | 1 |
| 22 | Pin GB91-5*45EpZn-Q235A | 4016010004 | 1 |
