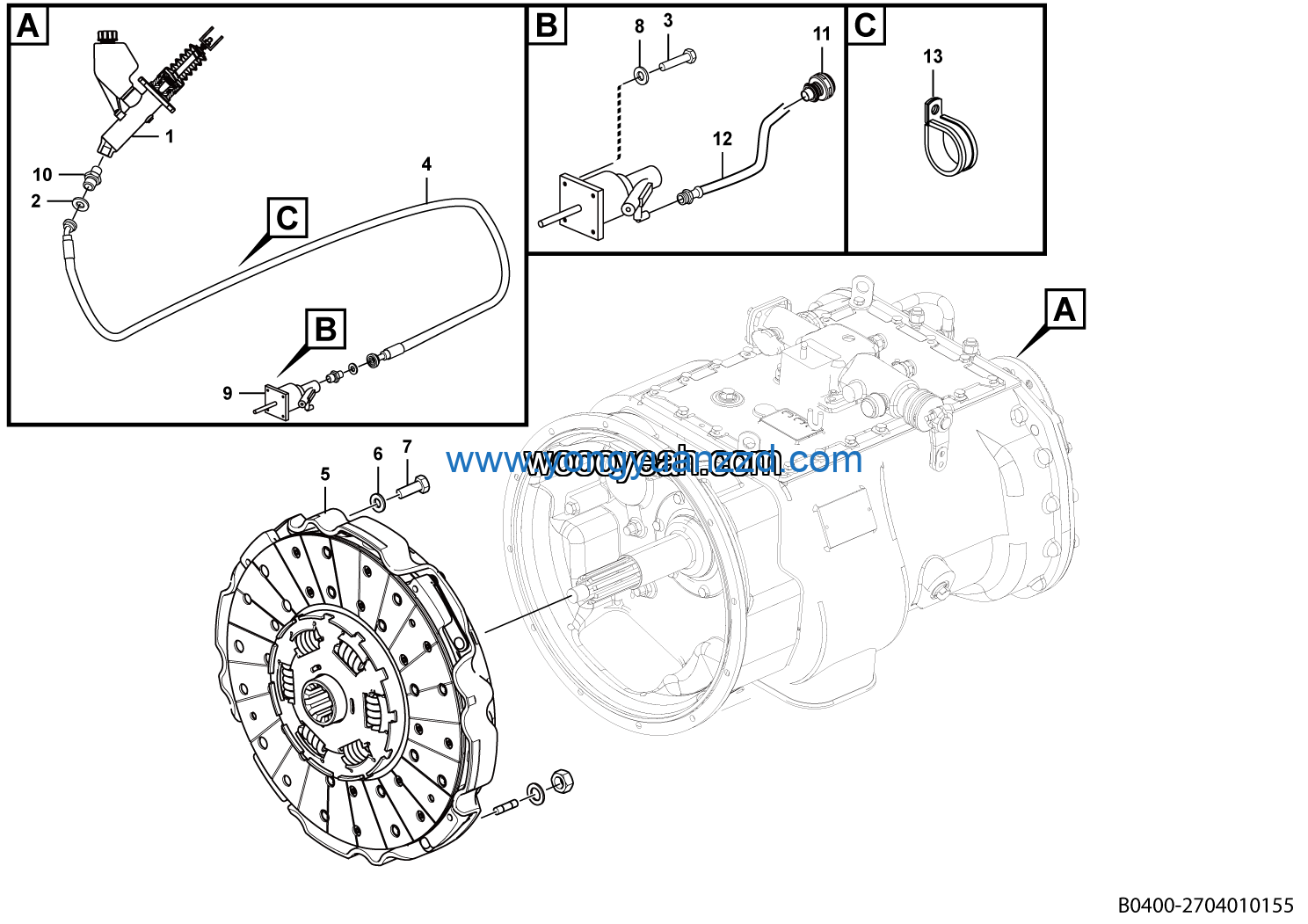

LGMG MT50 2025 – Clutch assy – B0400-2704010155
Category: 2025 > MT50 > M0500WA09
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Joint | 27040101651 | 2 |
| 2 | Breathing cap | 4120001137 | 1 |
| 3 | Hose assembly | 27040101621 | 1 |
| 4 | Clamp | 26370001911 | 1 |
| 5 | Clutch main pump | 4120000140 | 1 |
| 6 | Washer JB982-14 | 4015000121 | 2 |
| 7 | Bolt GB5783-M10*30EpZn-10.9 | 4011000763 | 4 |
| 8 | jiaoguan | 4030100463 | 1 |
| 9 | Clutch assy | 4110000245 | 1 |
| 10 | Washer GB97.1-10EpZn-300HV | 4015000162 | 10 |
| 11 | Bolt GB5782-M10*85EpZn-8.8 | 4011010016 | 10 |
| 12 | Washer GB93-10-65Mn | 4015000025 | 4 |
| 13 | Clutch cylinder | 4120001397 | 1 |
