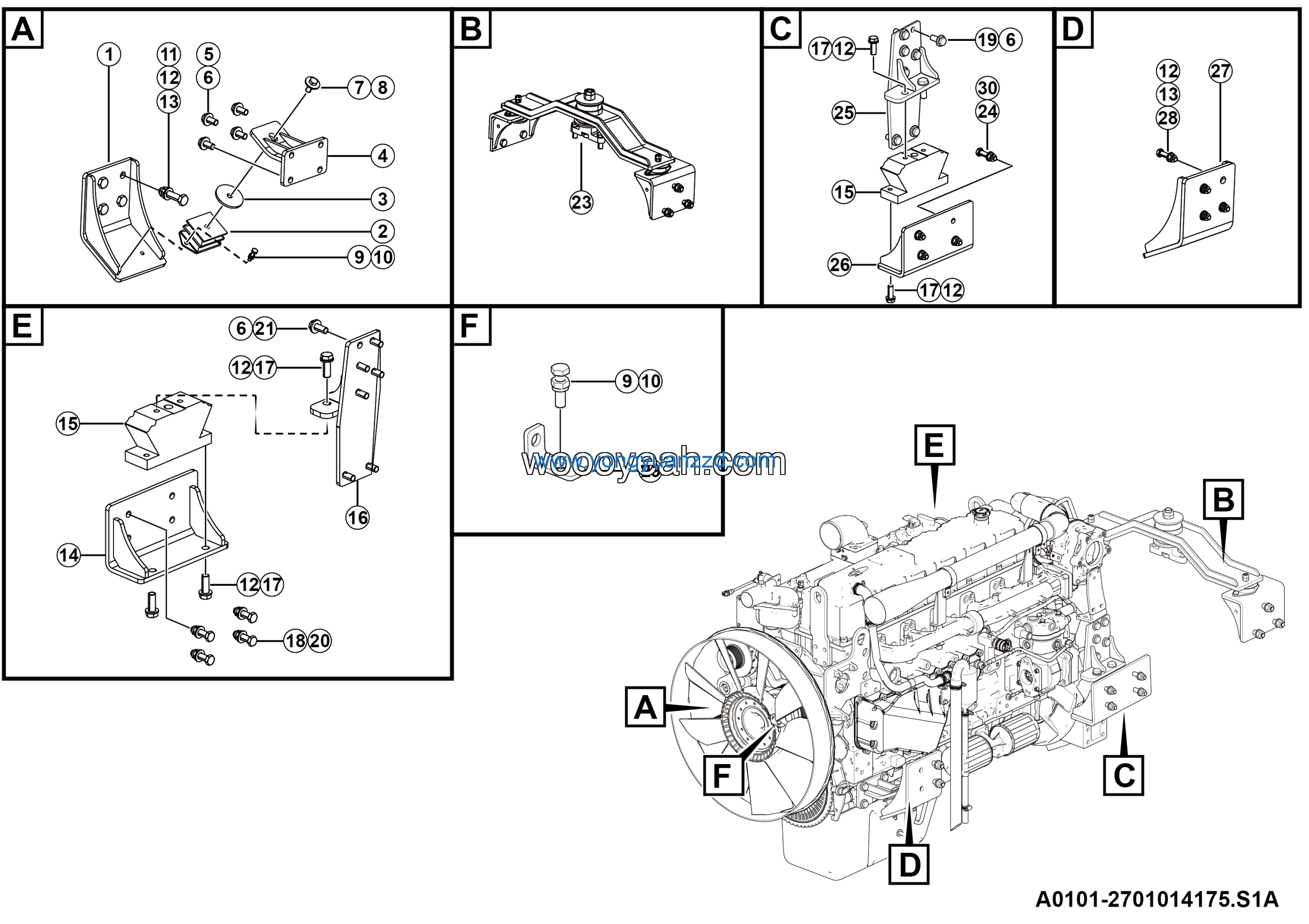

LGMG MT50 2025 – Engine installation – A0101-2701014175.S1A
Category: 2025 > MT50 > M0500Y3E0M103
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 4 |
| 2 | Bolt GB5783-M16*70flZnyc-12.9-480 | 4011010569 | 3 |
| 3 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 13 |
| 4 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 5 |
| 5 | Right rear mounting weldment | 27010136651 | 1 |
| 6 | RR engine mount cushion | 4110000296 | 2 |
| 7 | Rh rear bracket wldmt | 27010141761 | 1 |
| 8 | Bolt GB5786-M16*1.5*45flZnyc-12.9-480 | 4011010535 | 8 |
| 9 | Bolt GB5783-M14*50flZnyc-12.9-480 | 4011010549 | 4 |
| 10 | Bolt GB5783-M8*25flznyc-8.8-480 | 4011010743 | 1 |
| 11 | Right front mounting wldmt | 27010136631 | 1 |
| 12 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 8 |
| 13 | Bolt GB5786-M14*1.5*35flZnyc-12.9-480 | 4011010578 | 14 |
| 14 | Engine yc6mk375 | 4110708107 | 1 |
| 15 | Transmission mounting installation | 27010141781 | 1 |
| 16 | Bolt GB5783-M14*60flZnyc-12.9-480 | 4011010612 | 4 |
| 17 | Left rear bracket wldmt | 27010136541 | 1 |
| 18 | Left rear mounting weldment | 27010136511 | 1 |
| 19 | Left front mounting wldmt | 27010136601 | 1 |
| 20 | Bolt GB5783-M16*50flZnyc-12.9-480 | 4011010616 | 2 |
| 21 | Holder | 27200142321 | 1 |
| 22 | FR suspension cushion | 4110000331 | 2 |
| 23 | Nut GB6185.1-M8flZnyc-10-480 | 4013010378 | 1 |
| 24 | Trimmed gasket | 27010106821 | 2 |
| 25 | Front bracket wldmt | 27010136471 | 2 |
| 26 | Bolt GB5783-M14*30flZnyc-12.9-480 | 4011011004 | 8 |
| 27 | Washer GB97.1-14flZnyc-300HV-480 | 4015010341 | 31 |
| 28 | Bolt GB5786-M12*1.5*30flZnyc-12.9-480 | 4011010566 | 2 |
| 29 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 30 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 4 |
