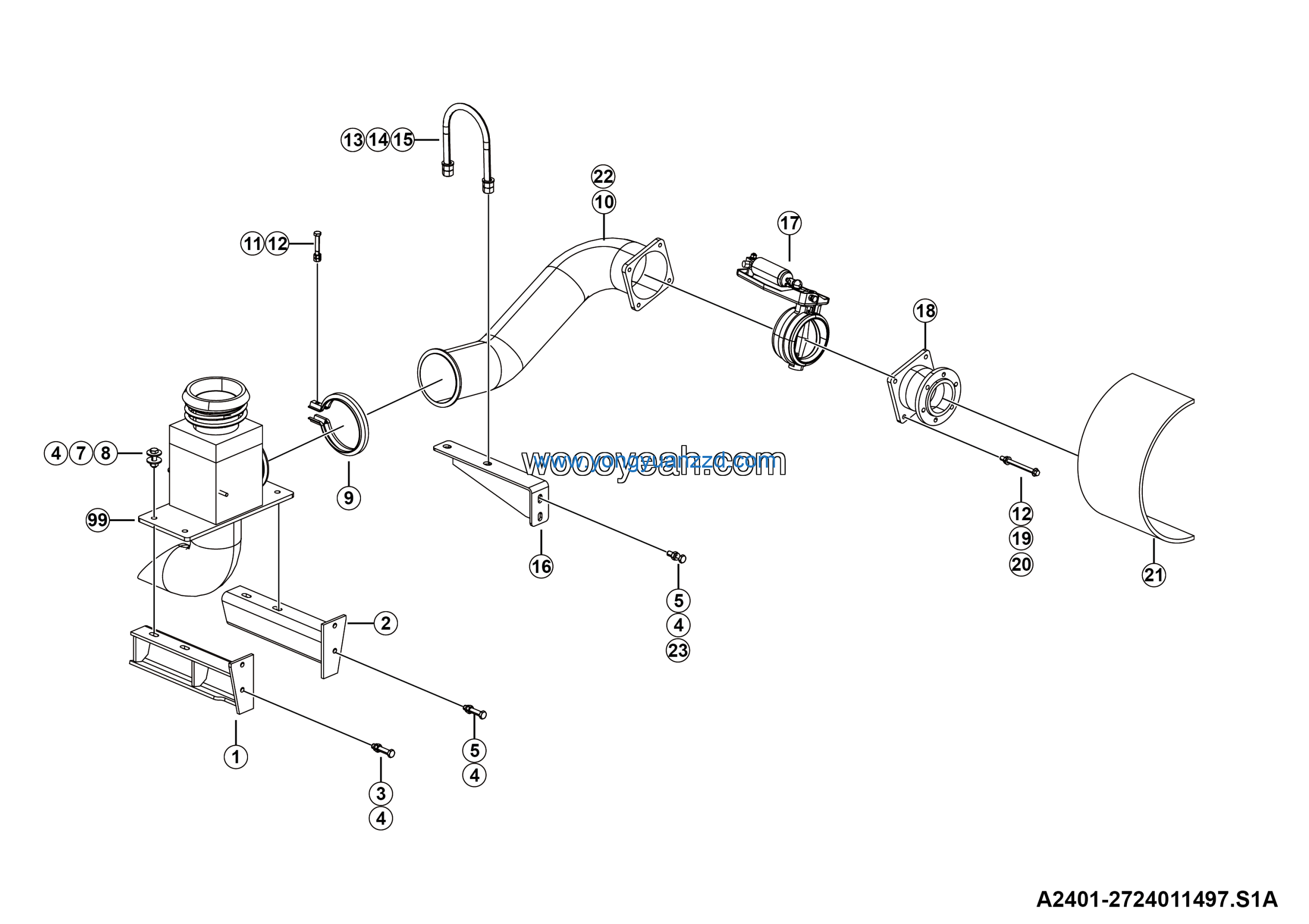

LGMG MT50 2025 – Exhaust & heating sys – A2401-2724011497.S1A
Category: 2025 > MT50 > M0500W2E0M102
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Exhaust pipe | 4110702240 | 1 |
| 2 | Bolt GB5782-M10*70EpZn-8.8 | 4011000051 | 1 |
| 3 | Nut GB6170-M10EpZn-8 | 4013000007 | 10 |
| 4 | U-BOLT | 27240101171 | 1 |
| 5 | Washer GB97.1-16EpZn-300HV | 4015000181 | 2 |
| 6 | Nut GB6170-M16EpZn-8 | 4013000016 | 4 |
| 7 | FI*ED BRACKET | 27240101142 | 1 |
| 8 | Exhaust brake butterfly valve | 4110001352 | 1 |
| 9 | JOINT NIPPLE | 27240101121 | 1 |
| 10 | Bolt GB16674.1-M10*120EpZn-8.8 | 4011000601 | 4 |
| 11 | Bracket | 27240102911 | 1 |
| 12 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 13 | Turbocharger heat insulation grm-lg-d190-220 | 4190711469 | 1 |
| 14 | Exhaust pipe insulation cotton LG24-GR-003 | 4110705912 | 1 |
| 15 | Washer GB97.1-12EpZn-300HV | 4015000168 | 6 |
| 16 | Bracket | 27240102891 | 1 |
| 17 | Bolt GB5783-M12*60EpZn-8.8 | 4011000284 | 2 |
| 18 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 10 |
| 19 | Bolt GB5783-M12*45EpZn-8.8 | 4011000207 | 4 |
| 20 | Exhaust conversion box | 4110702241 | 1 |
| 21 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 22 | Washer GB96.1-12EpZn-300HV | 4015000186 | 8 |
| 23 | Clamp | 4110000768 | 1 |
