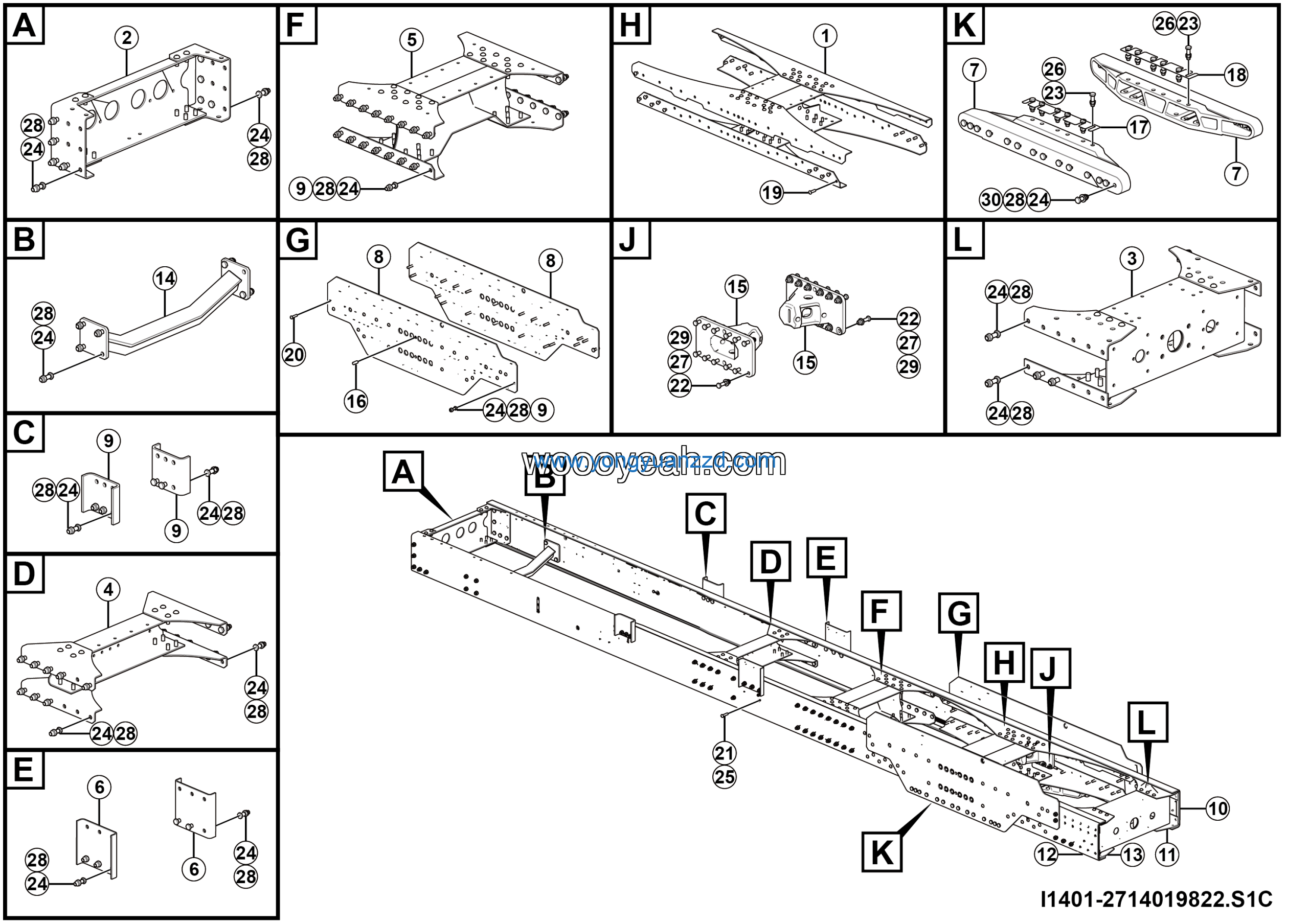

LGMG MT50 2025 – Frame – I1401-2714019822.S1C
Category: 2025 > MT50 > M0500Y3E0M103
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Rh stiffening beam 7100*284*72 | 27140198261 | 1 |
| 2 | Rh longit beam 7100*300*80 | 27140198251 | 1 |
| 3 | Lh stiffening beam 7100*284*72 | 27140198241 | 1 |
| 4 | Lh longit beam 7100*300*80 | 27140198231 | 1 |
| 5 | Stiffening beam wldmt with side plates | 27140210361 | 1 |
| 6 | Torque rod mount at beam end | 27120178592 | 2 |
| 7 | Cylindrical pin | 27120106921 | 4 |
| 8 | ADJUSTMENT GASKET | 27140115641 | 2 |
| 9 | ADJUSTMENT GASKET | 27140115651 | 2 |
| 10 | RIVET GB867-14*46 | 4019000112 | 22 |
| 11 | Stiffening beam assy | 27140198321 | 1 |
| 12 | RIVET GB867-14*55 | 4019000116 | 34 |
| 13 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 3 |
| 14 | BOLT GB5785-M14*1.5*65flZnyc-12.9-480 | 4011010942 | 24 |
| 15 | Bolt GB5786-M14*1.5*50-12.9 | 4011010606 | 12 |
| 16 | BOLT GB5786-M16*1.5*50-12.9 | 4011010738 | 121 |
| 17 | Nut GB6170-M10EpZn-8 | 4013000007 | 3 |
| 18 | Nut GB6185.2-M14*1.5-12 | 4013010266 | 12 |
| 19 | Nut GB6185.2-M14*1.5flZnyc-12-480 | 4013010568 | 24 |
| 20 | Nut GB6185.2-M16*1.5-12 | 4013010222 | 121 |
| 21 | Washer GB1230-14EpZn-45 | 4015000358 | 24 |
| 22 | Crossbeam 1 assy | 27140198551 | 1 |
| 23 | Washer GB1230-16EpZn-45 | 4015000001 | 28 |
| 24 | Tail beam assy | 27140198631 | 1 |
| 25 | Crossbeam assy 1 | 27140198461 | 1 |
| 26 | Crossbeam 2 assy | 27140198401 | 1 |
| 27 | Connecting plate 230*220*40*6 | 27140198621 | 2 |
| 28 | Mid mount | 27140198671 | 2 |
| 29 | Side connecting plate 1988*530*8 | 27140198391 | 2 |
| 30 | Fr connecting plate 180*160*50*10 | 27140198611 | 2 |
