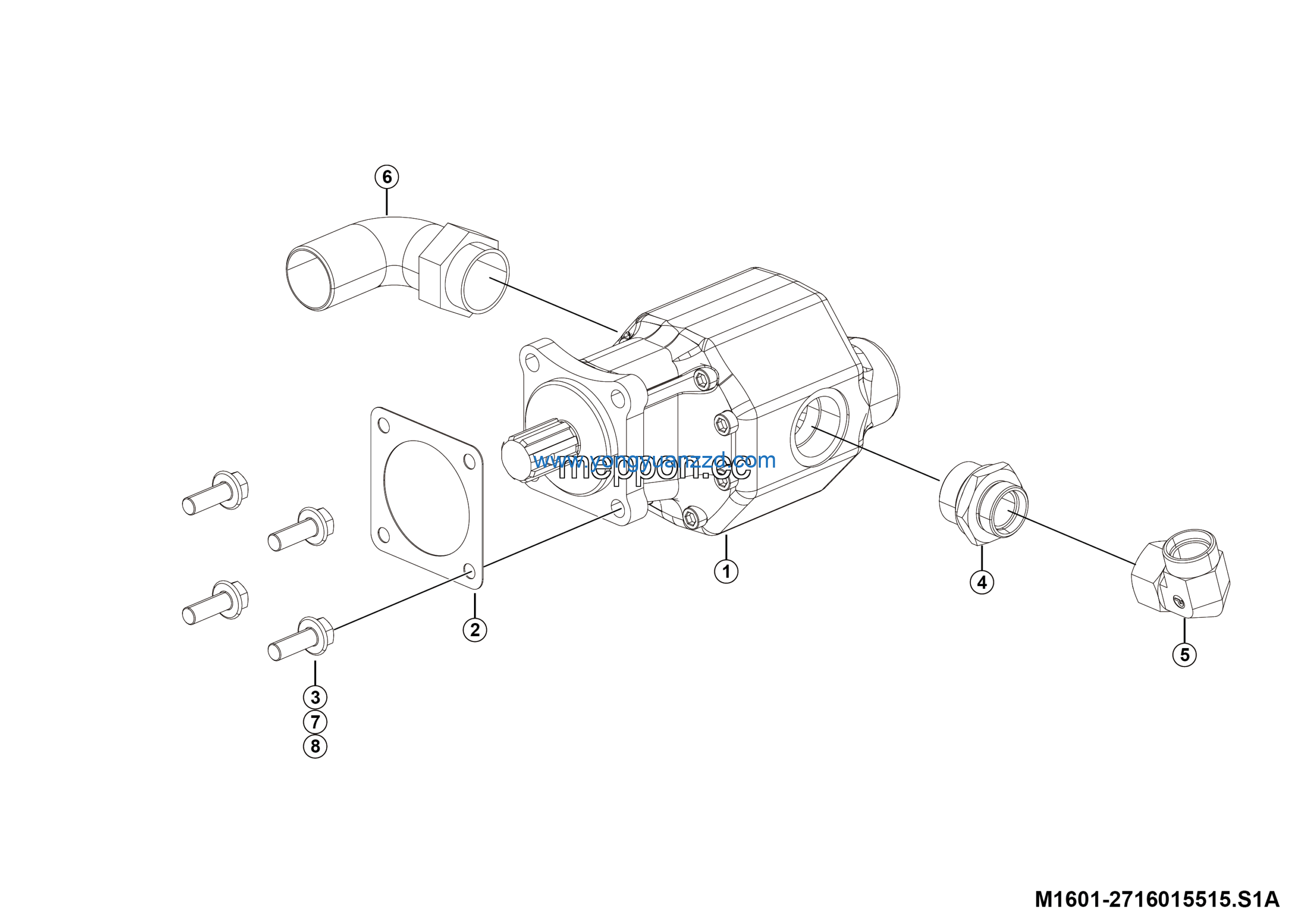

LGMG MT50 2025 – Gear pump assy – M1601-2716015515.S1A
Category: 2025 > MT50 > M0500W2E0M303
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Lifting pump 250bar | 4120001019 | 1 |
| 2 | Gasket | 27160104721 | 1 |
| 3 | Nut GB6170-M12EpZn-10 | 4013000150 | 4 |
| 4 | Joint GE28LR11/4EDOMD | 4190001242 | 1 |
| 5 | Fitting 1-1/4/28l | 27160155161 | 1 |
| 6 | Low pressure joint G1 1/4-φ46 | 4120001011 | 1 |
| 7 | Bolt GB5783-M12*55EpZn-10.9 | 4011000761 | 4 |
| 8 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
