LGMG MT50 2025 – Maintenance-free balance shaft assy d110 – G1201-4110707267
Category: 2025 > MT50 > M0500Y3E0M401

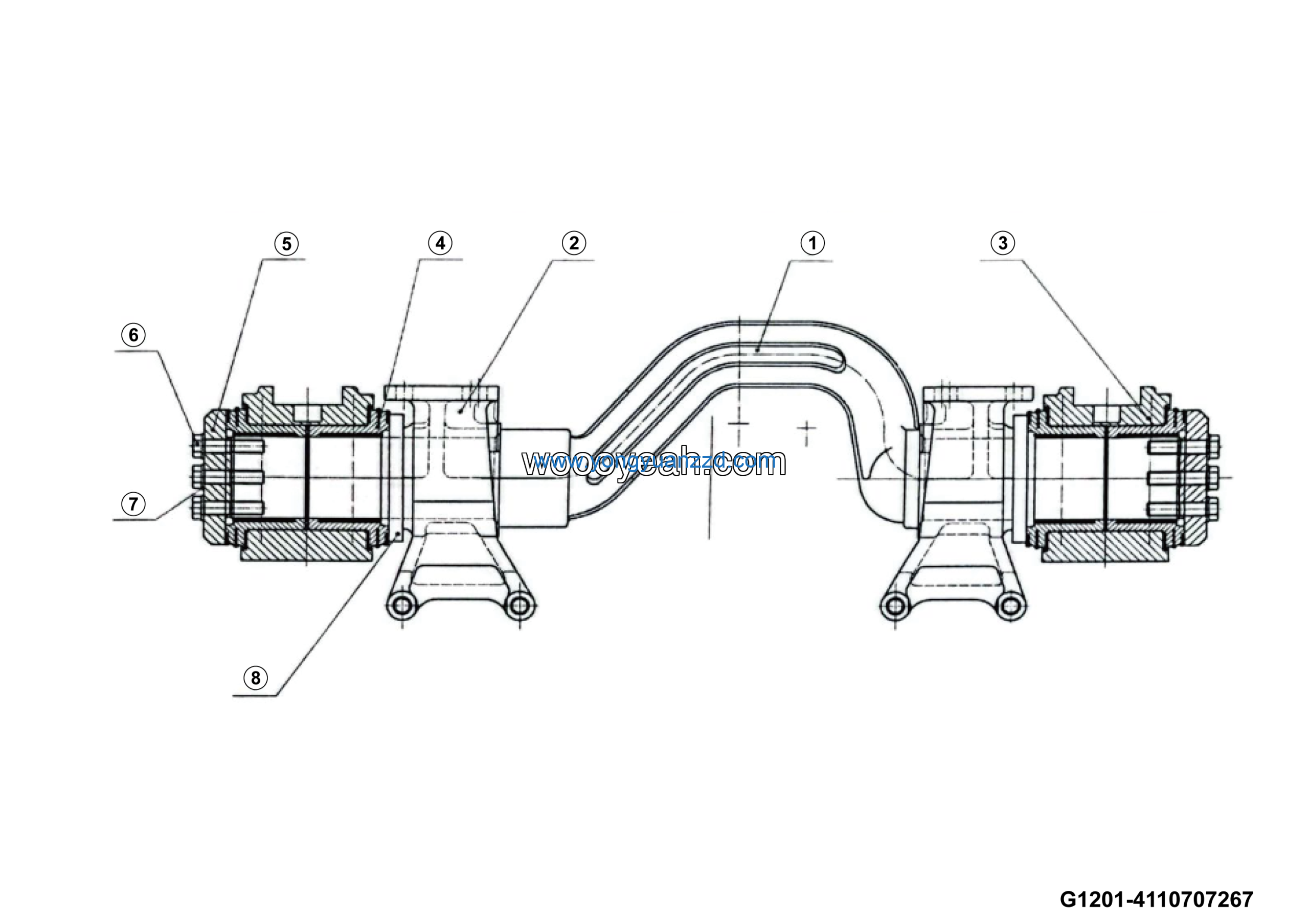

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Trunnion shaft d110 83029180001 | 4110707267001 | 1 |
| 2 | Balance shaft bracket jh9125520233 | 4110707266002 | 2 |
| 3 | Trunnion 83029180003 | 4110707267003 | 2 |
| 4 | Trunnion shaft rubber bearing d110 83029180005 | 4110707267004 | 4 |
| 5 | Flange 83029180006 | 4110707267005 | 2 |
| 6 | End cap bolt m18*75 yjq151b2080tf2 | 4110707267007 | 14 |
| 7 | Washer q41220f9 | 4110707267008 | 28 |
| 8 | Trunnion shaft d110 spacer 83029180004 | 4110707267006 | 2 |
