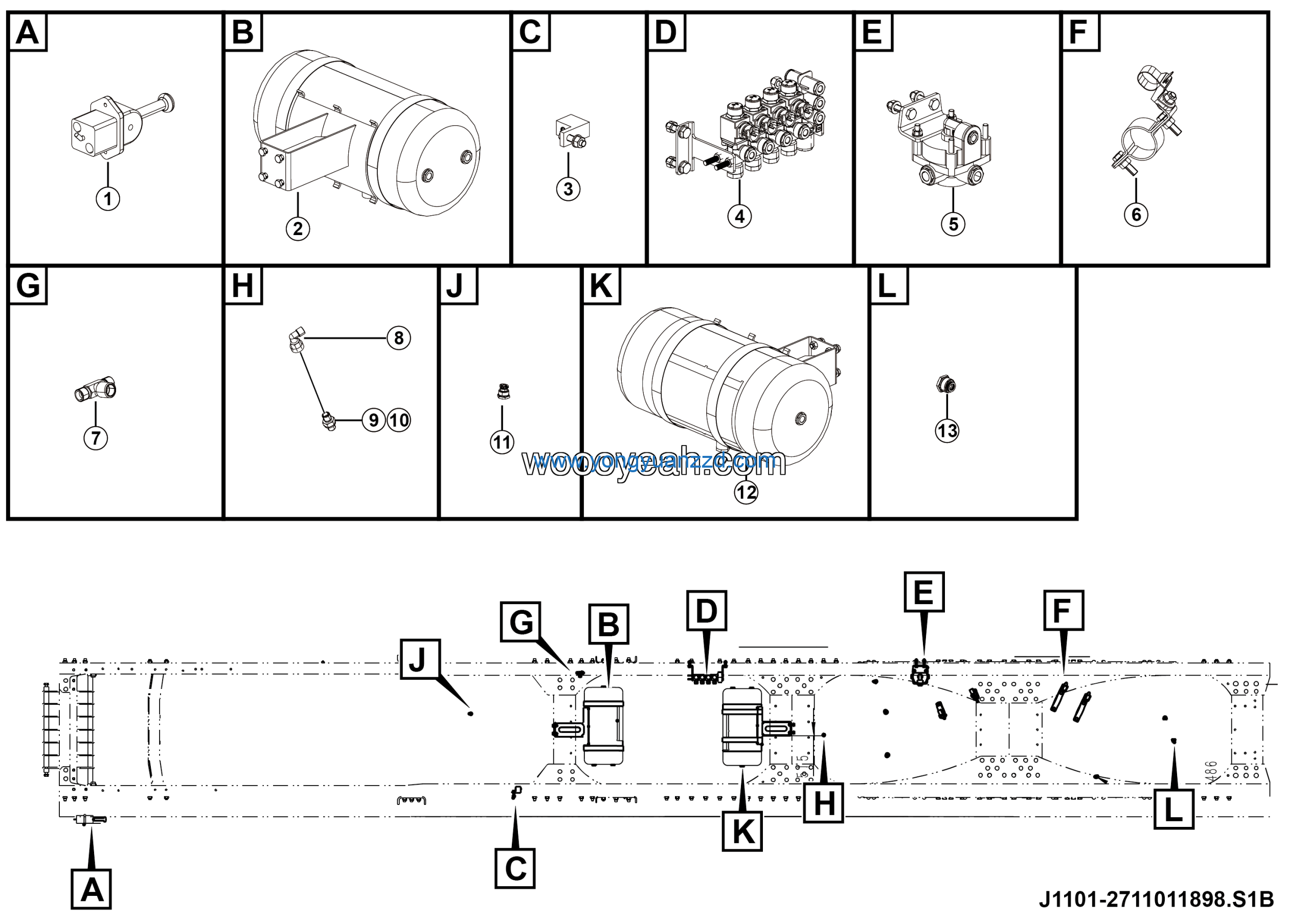

LGMG MT50 2025 – Parking brake assy – J1101-2711011898.S1B
Category: 2025 > MT50 > M0500W2E0M303
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer JB982-12 | 4015000327 | 3 |
| 2 | Nut seat | 27110107611 | 1 |
| 3 | 20l air reservoir assy | 27110117961 | 1 |
| 4 | Nut seat | 27110107601 | 4 |
| 5 | Hand brake valve | 4120000134 | 1 |
| 6 | 20l air reservoir assy | 27110117922 | 1 |
| 7 | Support | 27100120871 | 1 |
| 8 | Quadruple solenoid valve assy | 27100155241 | 1 |
| 9 | Asm | 27100121021 | 1 |
| 10 | Air hose bracket assy | 27110117761 | 4 |
| 11 | T-connector M14-M12-M14 | 27110101341 | 1 |
| 12 | Combination joint LGB143-01205 | 4041010126 | 1 |
| 13 | Joint M12-M12 | 27110101331 | 3 |
