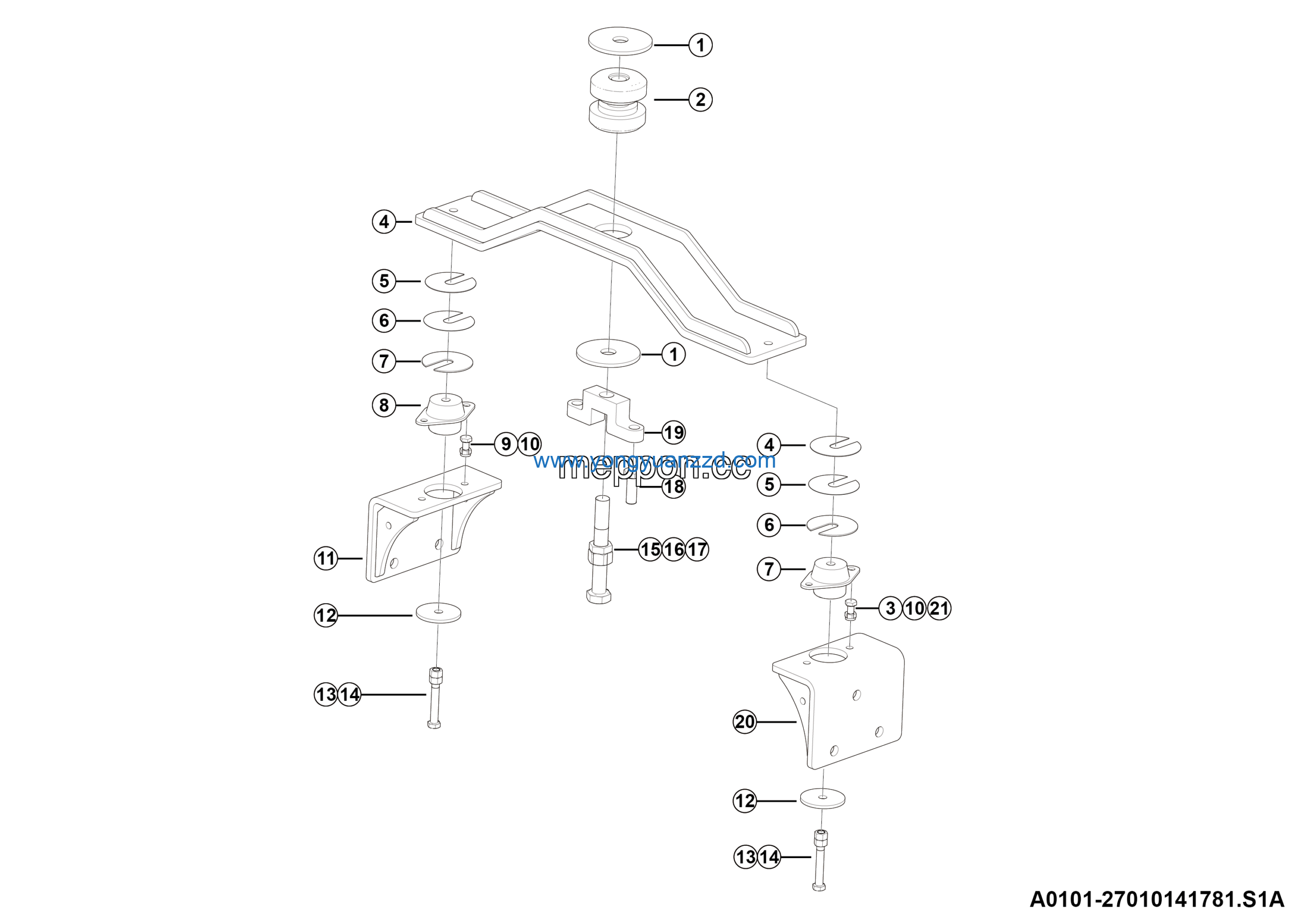

LGMG MT50 2025 – Transmission mounting installation – A0101-27010141781.S1A
Category: 2025 > MT50 > M0500Y3E0M108
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 6 |
| 2 | Rh auxiliary support wldmt | 27010136711 | 1 |
| 3 | Frame | 27010109081 | 2 |
| 4 | Bolt GB5782-M12*90EpZn-8.8 | 4011000414 | 2 |
| 5 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 4 |
| 6 | Bolt GB5782-M22*160EpZn-8.8 | 4011010411 | 1 |
| 7 | Nut GB6170-M12flZnyc-8-480 | 4013010295 | 4 |
| 8 | Nut GB6172.1-M22EpZn-8 | 4013010231 | 2 |
| 9 | Bolt GB5783-M16*45flZnyc-12.9-480 | 4011010621 | 2 |
| 10 | Intermediate spacer | 27010136431 | 1 |
| 11 | Plate | 27010105441 | 2 |
| 12 | Left auxiliary support wldmt | 27010136691 | 1 |
| 13 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 8 |
| 14 | Shock absorber Ⅰ | 4190000694 | 1 |
| 15 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 4 |
| 16 | Auxiliary support wldmt | 27010139752 | 1 |
| 17 | Adjusting gasket | 27050103661 | 2 |
| 18 | TUNING WASHER | 27050104201 | 2 |
| 19 | Adjusting gasket | 27050103671 | 2 |
| 20 | Auxiliary support shock absorber | 4190001361 | 2 |
| 21 | Bolt GB5783-M16*50flZnyc-12.9-480 | 4011010616 | 6 |
