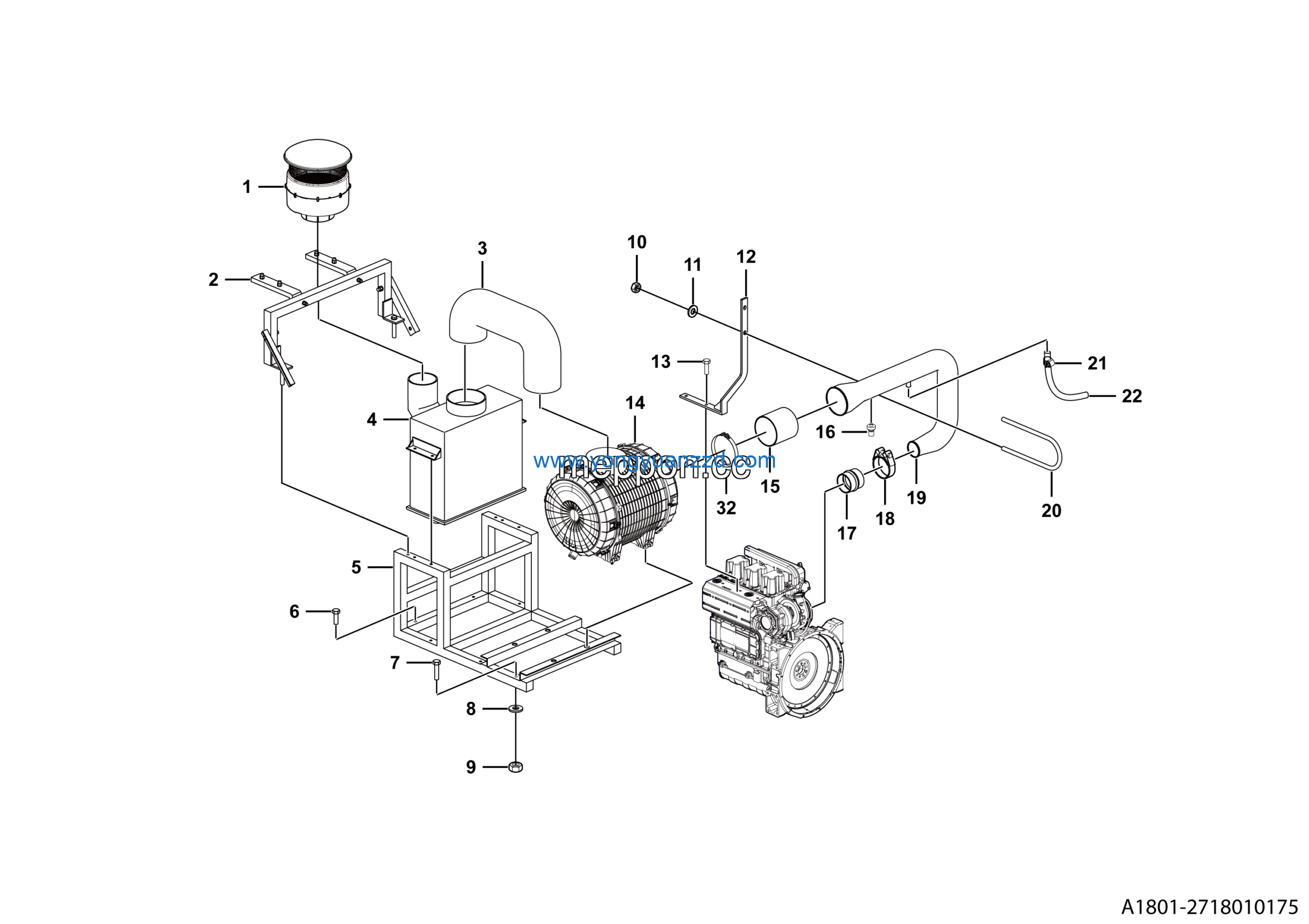

LGMG MT50 Mine Truck – Air filter assy – A1801-2718010175
Category: Mine Truck > MT50 > M0500WE41
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M16EpZn-8 | 4013000016 | 4 |
| 2 | Washer GB97.1-16EpZn-300HV | 4015000181 | 2 |
| 3 | Plate | 27180101742 | 1 |
| 4 | Bolt GB5783-M12*25EpZn-8.8 | 4011000197 | 2 |
| 5 | Air filter | 4110000340 | 1 |
| 6 | Pipe | 27180103281 | 1 |
| 7 | Vacuum level alarm | 4110001427 | 1 |
| 8 | Intercooling pipe φ100-100 | 4190000103 | 1 |
| 9 | No longer used | 4019010001 | 2 |
| 10 | Pipe | 27180101734 | 1 |
| 11 | Air pre-filter assy | 4110000012 | 1 |
| 12 | U-BOLT | 27240101171 | 1 |
| 13 | Hose clamp JB8870-D40 | 4017000008 | 2 |
| 14 | PIPEJB8406-B25*2000 | 4110000830 | 1 |
| 15 | T-bolt clamp φ188-φ196 | 4190002630 | 1 |
| 16 | Prefilter holder assy | 4110000010 | 1 |
| 17 | Connecting hose | 4110000338 | 1 |
| 18 | Desert air filter assy | 4110000007 | 1 |
| 19 | Air filter holder | 4110000831 | 1 |
| 20 | Bolt GB5782-M10*75EpZn-8.8 | 4011000052 | 2 |
| 21 | Bolt GB5782-M10*110EpZn-10.9 | 4011000986 | 6 |
| 22 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 23 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
