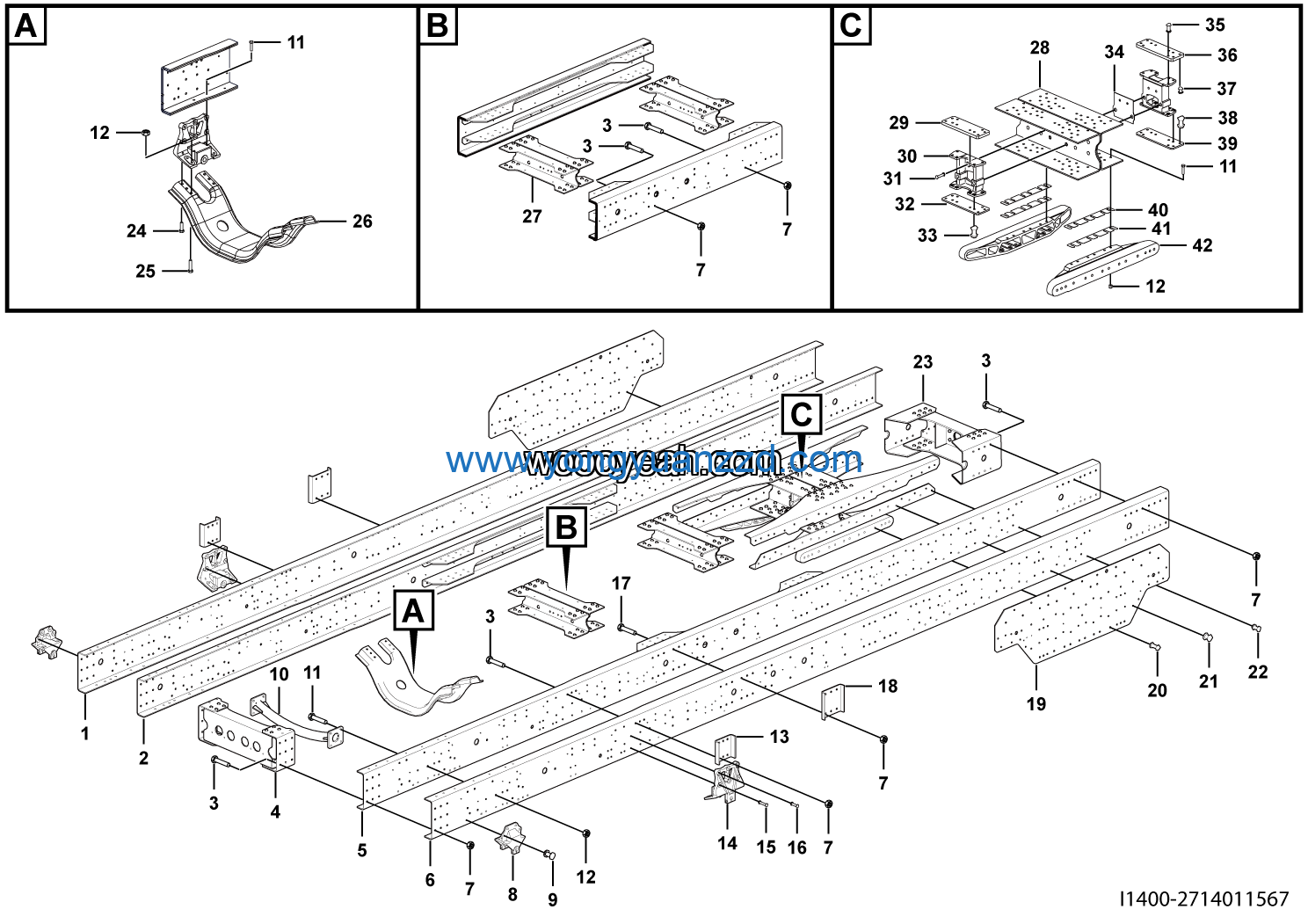

LGMG MT50 Mine Truck – Automotive chassis – I1400-2714011567
Category: Mine Truck > MT50 > M0500WE10
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | REINFORCE BEAM | 27140115581 | 1 |
| 2 | Bolt GB5786-M14*1.5*50EpZn-10.9 | 4011000916 | 19 |
| 3 | No longer used | 4013010181 | 23 |
| 4 | FRONT CONNECT PLATE | 27170117451 | 2 |
| 5 | Front plate spring rear support | 27120110881 | 2 |
| 6 | RIVET GB867-14*85 | 4019010171 | 6 |
| 7 | RIVET GB867-14*75 | 4019010172 | 6 |
| 8 | Bolt GB5786-M16*1.5*55EpZn-10.9 | 4011000842 | 6 |
| 9 | UP CONNECT PLATE | 27140113681 | 2 |
| 10 | SIDE FACE CONNECT PLATE | 27140115721 | 2 |
| 11 | RIGHT LENGTHWAYS BEAM | 27140115711 | 1 |
| 12 | RIVET GB867-16*46 | 4019000131 | 16 |
| 13 | RIVET GB867-14*55 | 4019000116 | 60 |
| 14 | RIVET GB867-14*46 | 4019000112 | 24 |
| 15 | FINAL BEAM ASSEMBLY | 27140113521 | 1 |
| 16 | Bolt GB5786-M14*1.5*30EpZn-10.9 | 4011000345 | 4 |
| 17 | Bolt GB5786-M14*1.5*45EpZn-10.9 | 4011000701 | 8 |
| 18 | Beam | 27120110891 | 1 |
| 19 | CROSSWISE BEAM ASSEMBLY | 27140113691 | 1 |
| 20 | Balance shaft reinforce beam assembly | 27140113581 | 1 |
| 21 | BASE PLATE | 27140113671 | 1 |
| 22 | RIGHT REINFORCE BEAM | 27140115701 | 1 |
| 23 | Seat | 27120110931 | 2 |
| 24 | RIVET GB867-14*68 | 4019000121 | 2 |
| 25 | BASE PLATE | 27140113661 | 1 |
| 26 | Rivet GB867-14*52 | 4019000115 | 12 |
| 27 | 3MM PLATE | 27140113831 | 1 |
| 28 | RIVET GB867-14*62 | 4019000119 | 12 |
| 29 | BASE PLATE | 27140113651 | 1 |
| 30 | RIVET GB867-14*48 | 4019000113 | 8 |
| 31 | RIVET GB867-14*36 | 4019000107 | 8 |
| 32 | Plate | 27140113841 | 1 |
| 33 | No longer used | 4011010113 | 88 |
| 34 | ADJUSTMENT GASKET | 27140115641 | 2 |
| 35 | ADJUSTMENT GASKET | 27140115651 | 2 |
| 36 | Support | 27120110921 | 2 |
| 37 | FIRST CROSSWISE BEAM ASSEMBLY | 27140113791 | 1 |
| 38 | LEFT REINFORCE BEAM | 27140115691 | 1 |
| 39 | Left carling | 27140115681 | 1 |
| 40 | Nut GB6185.2-M16*1.5EpZn-10 | 4013010171 | 94 |
| 41 | Front plate spring front support | 27120110871 | 2 |
| 42 | RIVET GB867-16*55 | 4019000135 | 12 |
