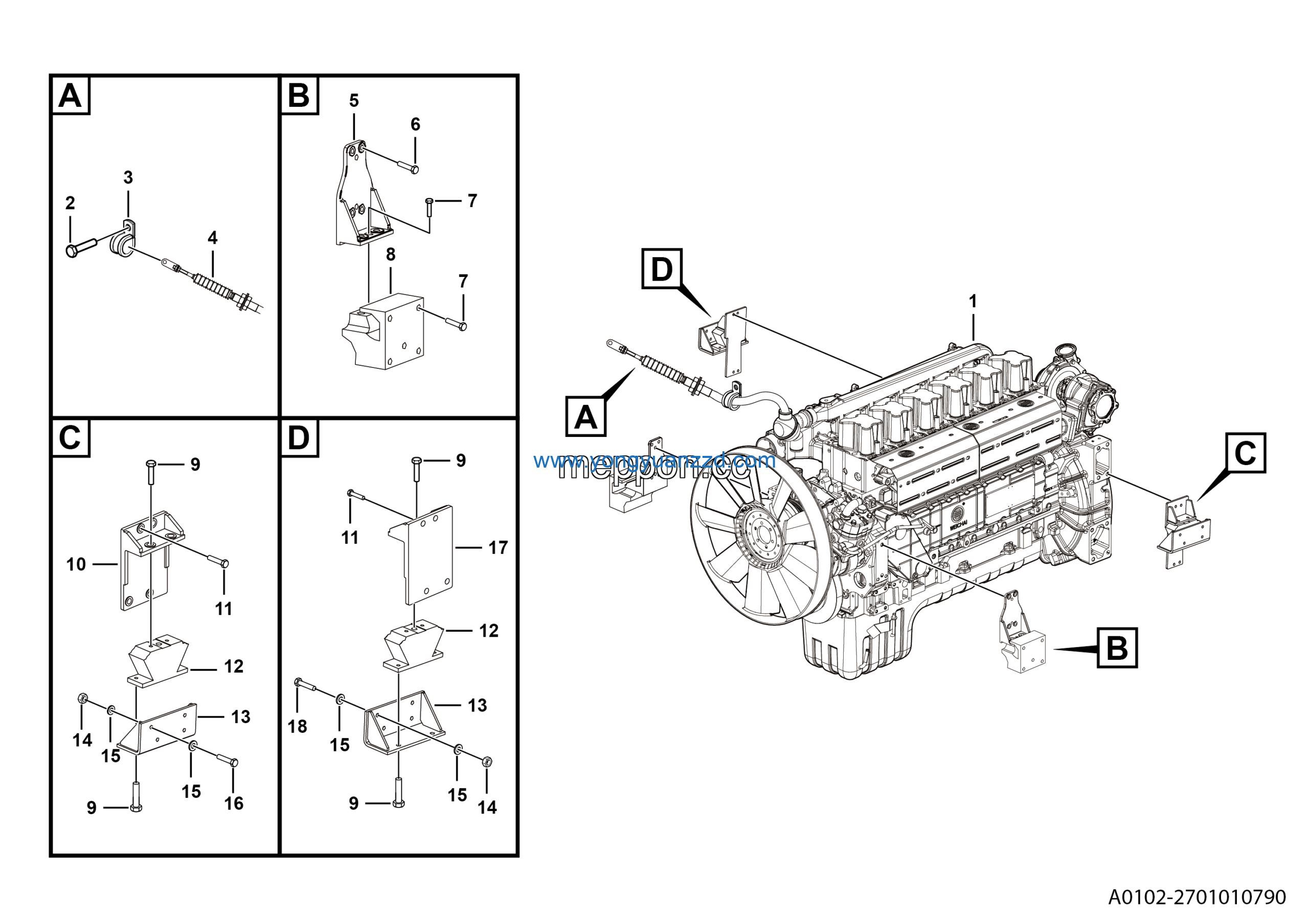

LGMG MT50 Mine Truck – Engine assy – A0102-2701010790
Category: Mine Truck > MT50 > M0500WE10
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | PLATE | 27010107832 | 1 |
| 2 | Bolt GB5786-M14*1.5*30EpZn-10.9 | 4011000345 | 8 |
| 3 | RR engine mount cushion | 4110000296 | 2 |
| 4 | SEAT | 27010111401 | 2 |
| 5 | Nut GB6170-M14EpZn-10 | 4013010010 | 8 |
| 6 | Washer GB97.1-14EpZn-300HV | 4015000177 | 16 |
| 7 | Bolt GB5783-M14*50-10.9 | 4011000889 | 6 |
| 8 | PLATE | 27010107842 | 1 |
| 9 | Bolt GB5782-M14*60EpZn-10.9 | 4011000539 | 2 |
| 10 | Engine assy WP10.340 | 4110000826 | 1 |
| 11 | Bolt GB5783-M8*12EpZn-8.8 | 4011000180 | 1 |
| 12 | Pipe clamp Ф13 | 27340100341 | 1 |
| 13 | Throttle drawing FY10-08A/1108030 | 4190000116 | 1 |
| 14 | Plate | 27010107821 | 2 |
| 15 | Bolt GB5783-M12*30EpZn-10.9 | 4011000747 | 8 |
| 16 | Bolt GB5785-M16*1.5*35EpZn-10.9 | 4011010153 | 14 |
| 17 | Engine FR rubber pad | 4110000832 | 2 |
| 18 | Bolt GB5786-M16*1.5*40EpZn-10.9 | 4011010291 | 8 |
