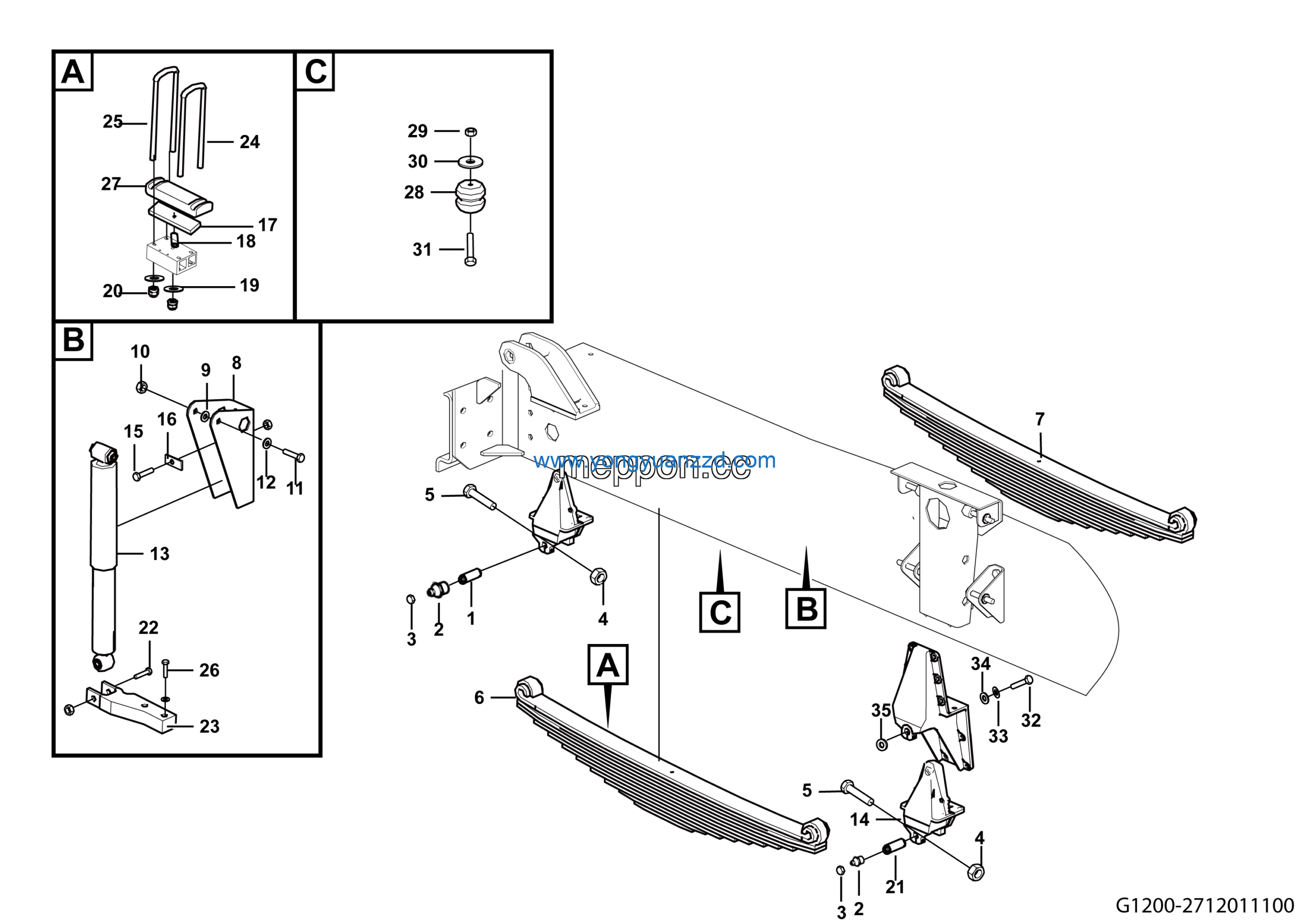

LGMG MT50 Mine Truck – Front the spring assembly – G1200-2712011100
Category: Mine Truck > MT50 > M0500WE11
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | No longer used | 4013010182 | 4 |
| 2 | Bolt GB5785-M16*1.5*140EpZn-10.9 | 4011010215 | 2 |
| 3 | Washer GB97.1-16EpZn-300HV | 4015000181 | 6 |
| 4 | Shock absorber | 27120104171 | 2 |
| 5 | Lifter | 27120110751 | 2 |
| 6 | No longer used | 4011000843 | 8 |
| 7 | Backing plate | 27120104201 | 4 |
| 8 | Plate | 27120110911 | 2 |
| 9 | Pin | 27120110901 | 2 |
| 10 | Sleeve | 27120110641 | 8 |
| 11 | Spring pin | 27120110861 | 4 |
| 12 | NUT | 4013010193 | 8 |
| 13 | tanhuangxiao | 27120107651 | 2 |
| 14 | Bolt GB5785-M16*1.5*90EpZn-10.9 | 4011000879 | 2 |
| 15 | Rear shock absorber frame | 27120110851 | 2 |
| 16 | Front leaf spring u bolt | 27120110722 | 2 |
| 17 | Front leaf spring u bolt | 27120110712 | 2 |
| 18 | Bolt GB5785-M16*1.5*70EpZn-10.9 | 4011010212 | 4 |
| 19 | Plate | 27120110681 | 2 |
| 20 | Front spring stop block | 27120103621 | 2 |
| 21 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 2 |
| 22 | Grease nipple JB7940.1-M10*1 | 4030000065 | 6 |
| 23 | Washer GB97.1-14EpZn-300HV | 4015000177 | 2 |
| 24 | Screw GB70.1-M14*50EpZn-8.8 | 4014010040 | 2 |
| 25 | Bolt GB5783-M10*20EpZn-10.9 | 4011000759 | 6 |
| 26 | Washer GB93-10-65Mn | 4015000025 | 6 |
| 27 | Washer | 27120107031 | 6 |
| 28 | Washer | 27120103552 | 20 |
| 29 | No longer used | 4030000107 | 6 |
| 30 | Nut GB6185.2-M12*1.25EpZn-10 | 4013010189 | 14 |
| 31 | BOLT | 4011010271 | 6 |
| 32 | FR leaf spring assy | 4110000809 | 1 |
| 33 | FR leaf spring assy | 4110000810 | 1 |
| 34 | Plate assembly | 27120112771 | 2 |
| 35 | No longer used | 4015000305 | 8 |
