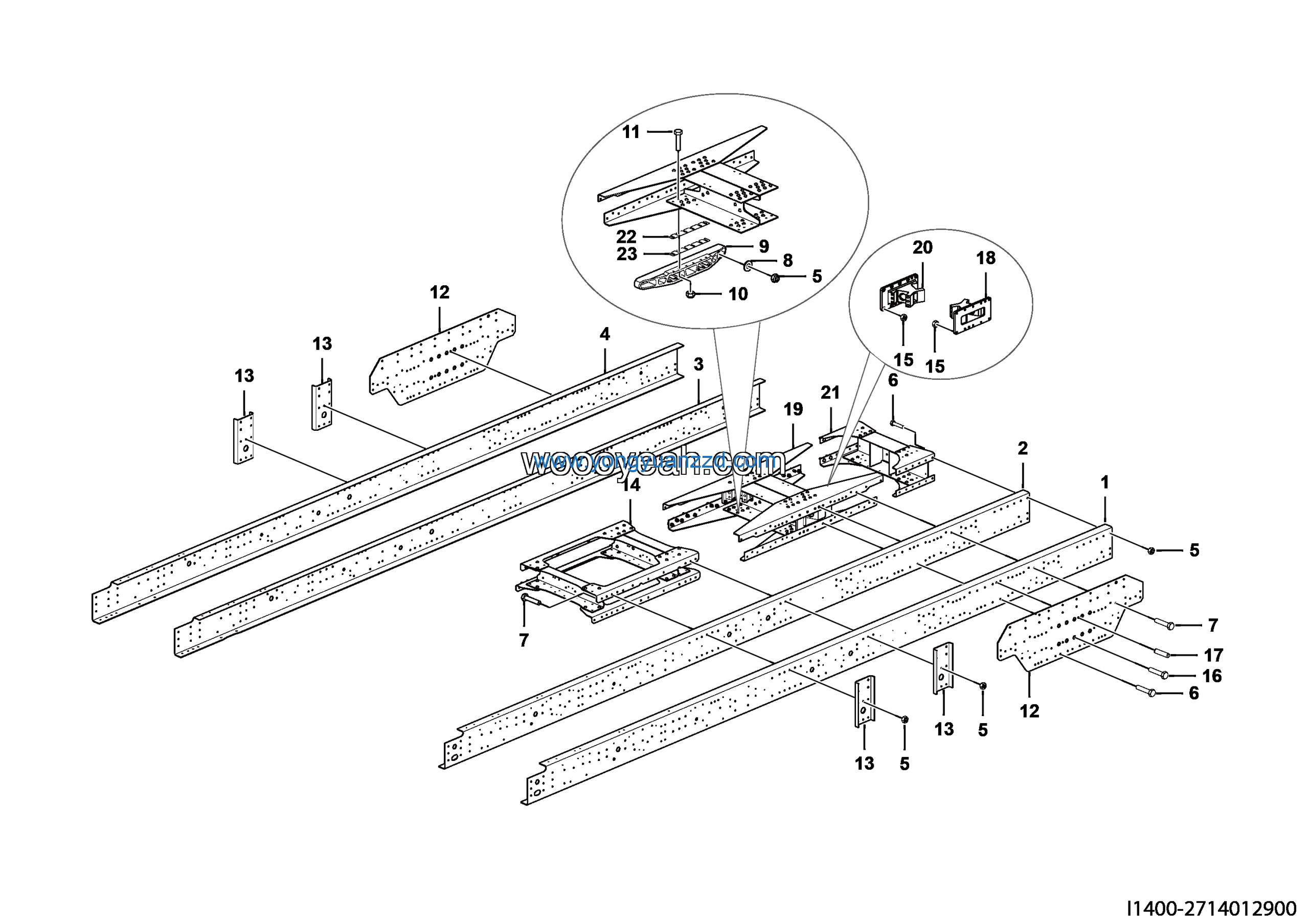

LGMG MT60 Mine Truck – Frame assy – I1400-2714012900
Category: Mine Truck > MT60 > M0600WE42-1
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6185.2-M14*1.5-12 | 4013010266 | 12 |
| 2 | Bolt GB5786-M14*1.5*50-12.9 | 4011010606 | 12 |
| 3 | Side attaching plate | 27140125422 | 2 |
| 4 | Superstructure connect plate | 27140122661 | 4 |
| 5 | RIGHT BEAM | 27140128991 | 1 |
| 6 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 20 |
| 7 | Bolt GB5785-M16*1.5*70flZnyc-12.9-480 | 4011010598 | 20 |
| 8 | Cylindrical pin | 27120106921 | 4 |
| 9 | Left carling support | 27120108601 | 1 |
| 10 | Balance shaft reinforce beam assembly | 27140125361 | 1 |
| 11 | SPACER | 27140129011 | 1 |
| 12 | Right carling support | 27120108591 | 1 |
| 13 | Final beam assembly | 27140123881 | 1 |
| 14 | Adjustment gasket | 27140123971 | 2 |
| 15 | Adjustment gasket | 27140123981 | 2 |
| 16 | Sign | 27140129021 | 1 |
| 17 | RIGHT REINFORCE | 27140129032 | 1 |
| 18 | Right carling | 27140129042 | 1 |
| 19 | Nut GB6185.2-M16*1.5-12 | 4013010222 | 117 |
| 20 | BOLT GB5786-M16*1.5*50-12.9 | 4011010738 | 65 |
| 21 | Bolt GB5786-M16*1.5*60-12.9 | 4011010219 | 52 |
| 22 | Washer GB1230-16EpZn-45 | 4015000001 | 28 |
| 23 | Middle support | 27140123771 | 2 |
