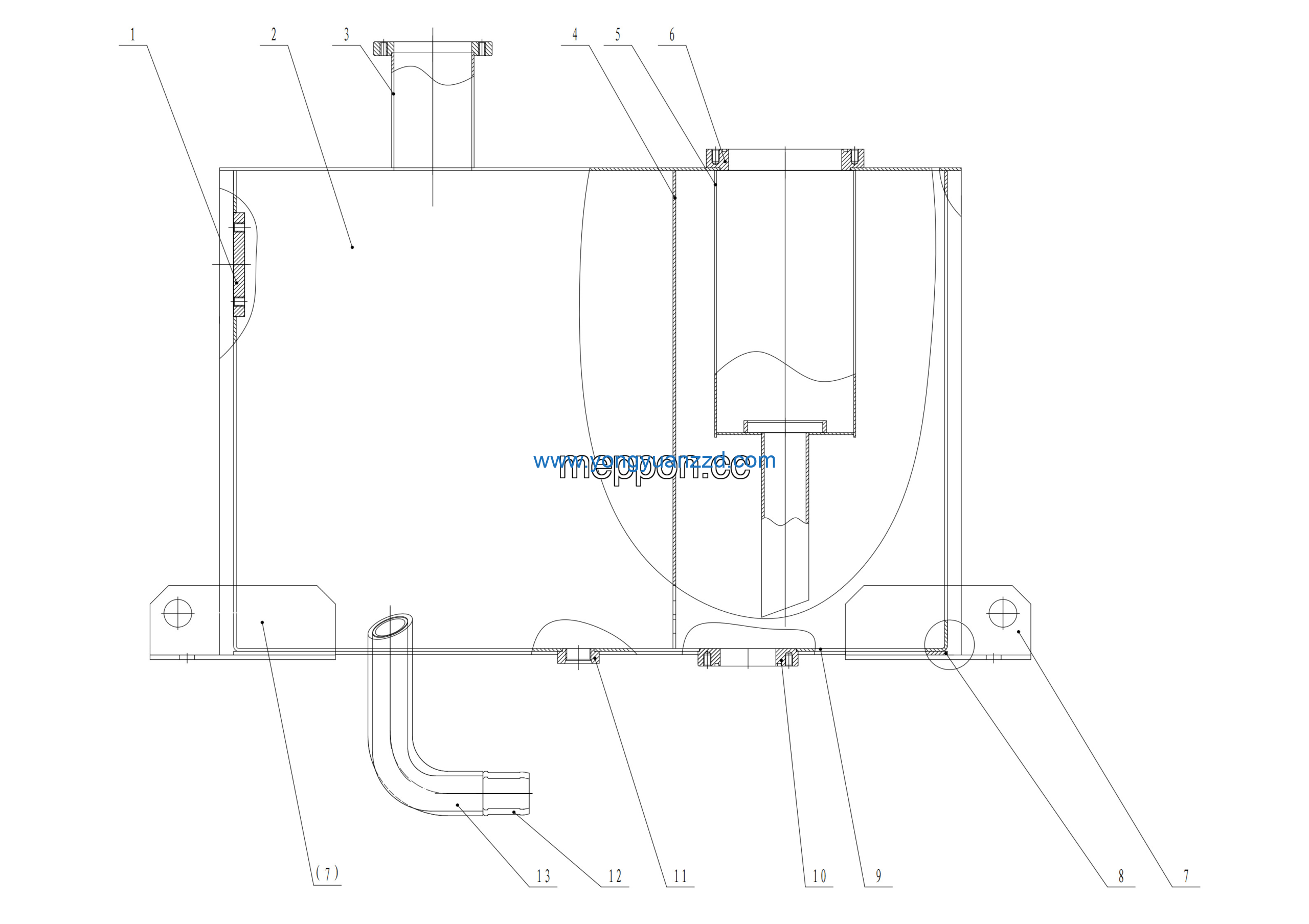

LGMG MT60 Mine Truck – Oil tank – M3-2716010216
Category: Mine Truck > MT60 > MT60
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | WSHING FLANGE BASE | 27160101801 | 1 |
| 2 | OIL DRAIN SEAT | 27160101721 | 1 |
| 3 | PIPE | 27160102151 | 1 |
| 4 | PIPE | 27160102131 | 1 |
| 5 | Dipstick base | 27160102001 | 1 |
| 6 | Above plate | 27160101571 | 1 |
| 7 | RESPIRATOR FIXED TUBE | 27160101771 | 1 |
| 8 | Insulate plate | 27160101741 | 1 |
| 9 | Cover | 27160101651 | 1 |
| 10 | Flage base | 27160101751 | 1 |
| 11 | Fixed base | 27160101761 | 2 |
| 12 | Plate | 27160101821 | 2 |
| 13 | Under plate | 27160101581 | 1 |
