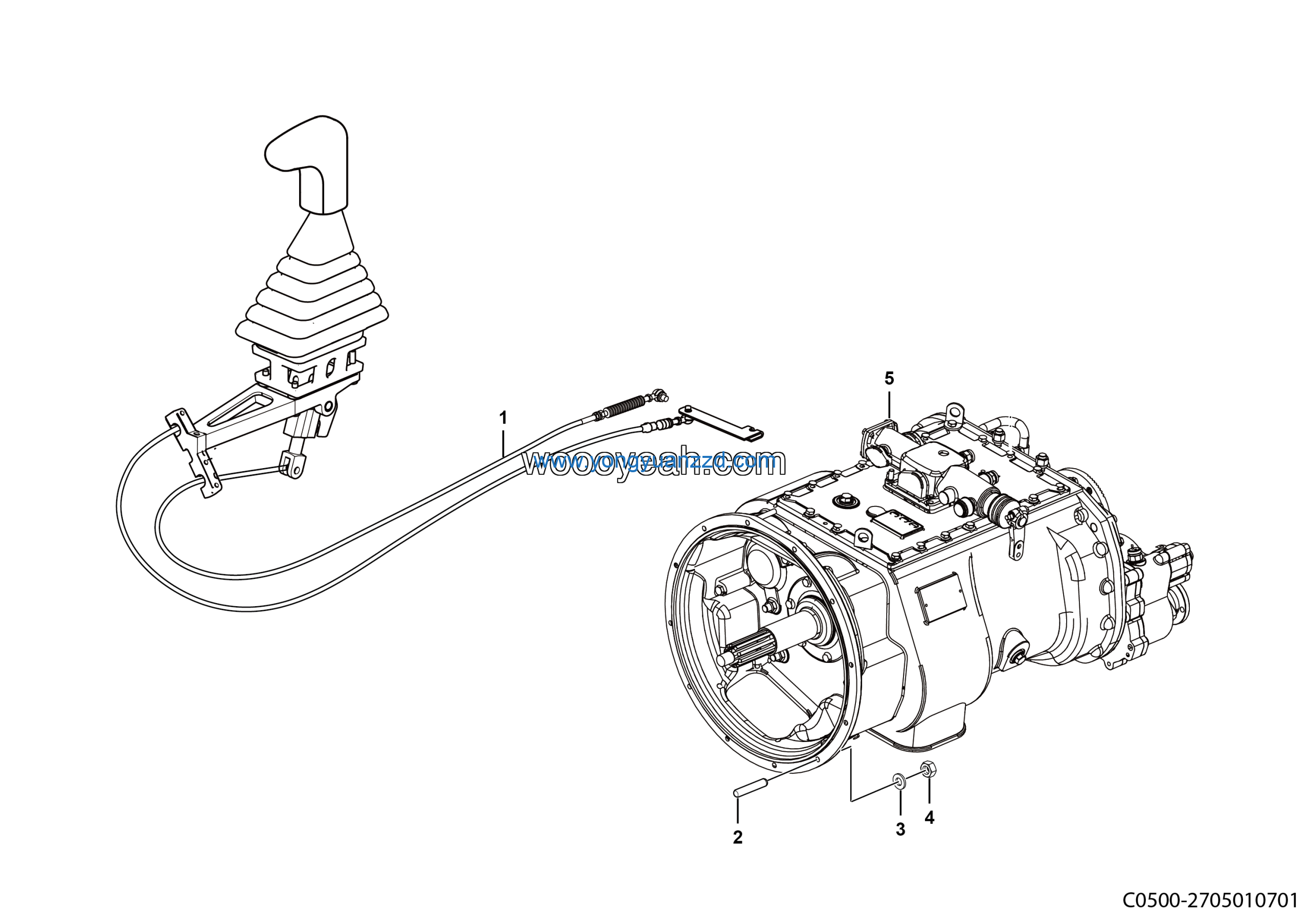

LGMG MT60 Mine Truck – Transmission assy – C0500-2705010701
Category: Mine Truck > MT60 > M0600WE30
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Gearbox control assembly | 27050107021 | 1 |
| 2 | STUD | 4110001449 | 12 |
| 3 | Washer GB97.1-10EpZn-300HV | 4015000162 | 12 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 12 |
| 5 | Transmission box assy 7DS200 | 4110702245 | 1 |
