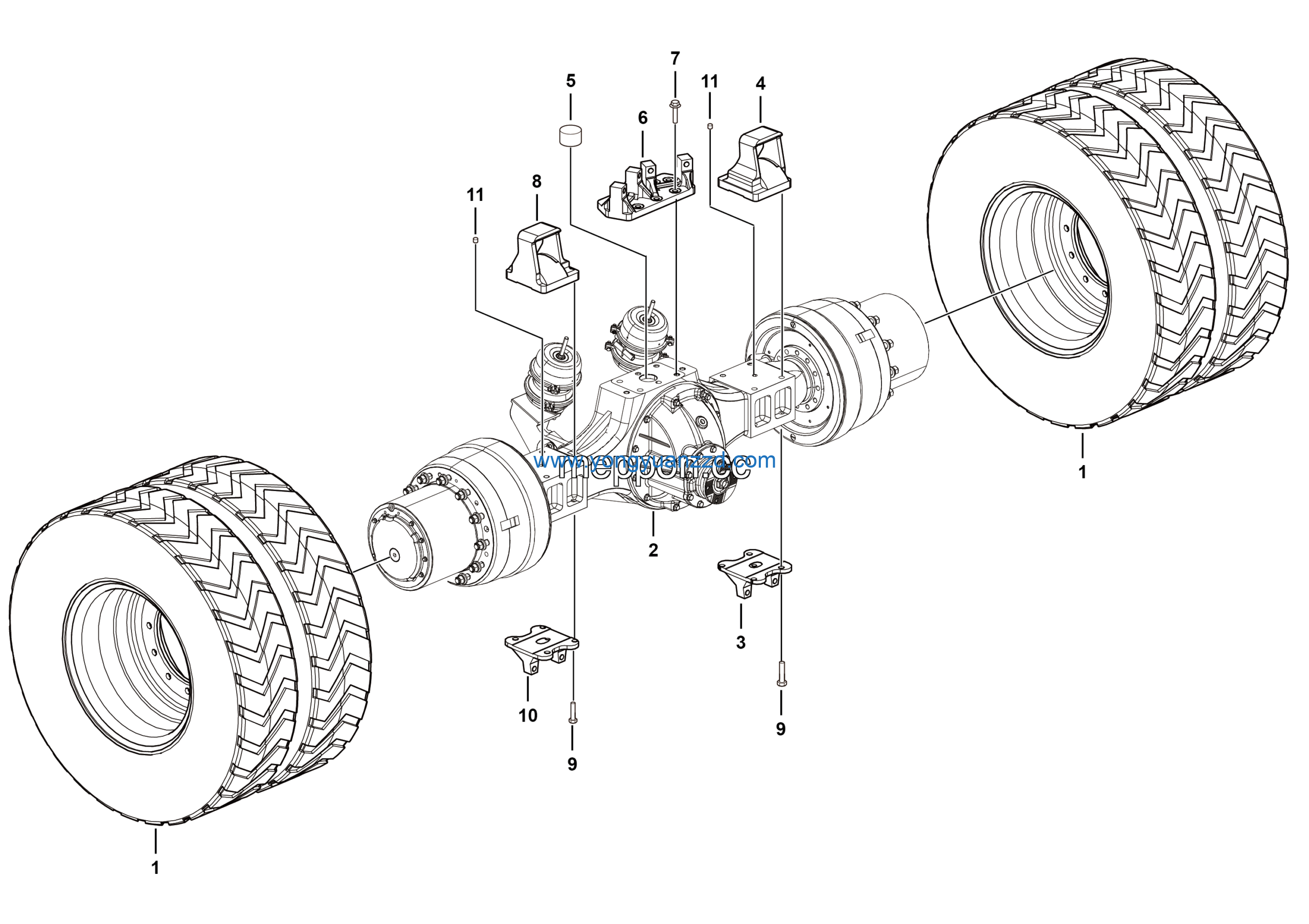

LGMG MT60D Mine Truck – Rear axle assy – E0801-2708010341
Category: Mine Truck > MT60D > M060DWA10
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Right support | 27070103891 | 1 |
| 2 | PIN | 27070103491 | 4 |
| 3 | tyre assembly | 27060101101 | 4 |
| 4 | RR axle assy | 4110702198 | 1 |
| 5 | Left support | 27070103881 | 1 |
| 6 | The bridge left spring seat | 27080103161 | 1 |
| 7 | Locating pin | 27070101441 | 1 |
| 8 | Axle support | 27070104051 | 1 |
| 9 | Heagonal bolt with serrated flange | 27070101281 | 9 |
| 10 | The bridge right spring seat | 27080103171 | 1 |
| 11 | Bolt m22*1.5 | 27070103501 | 8 |
