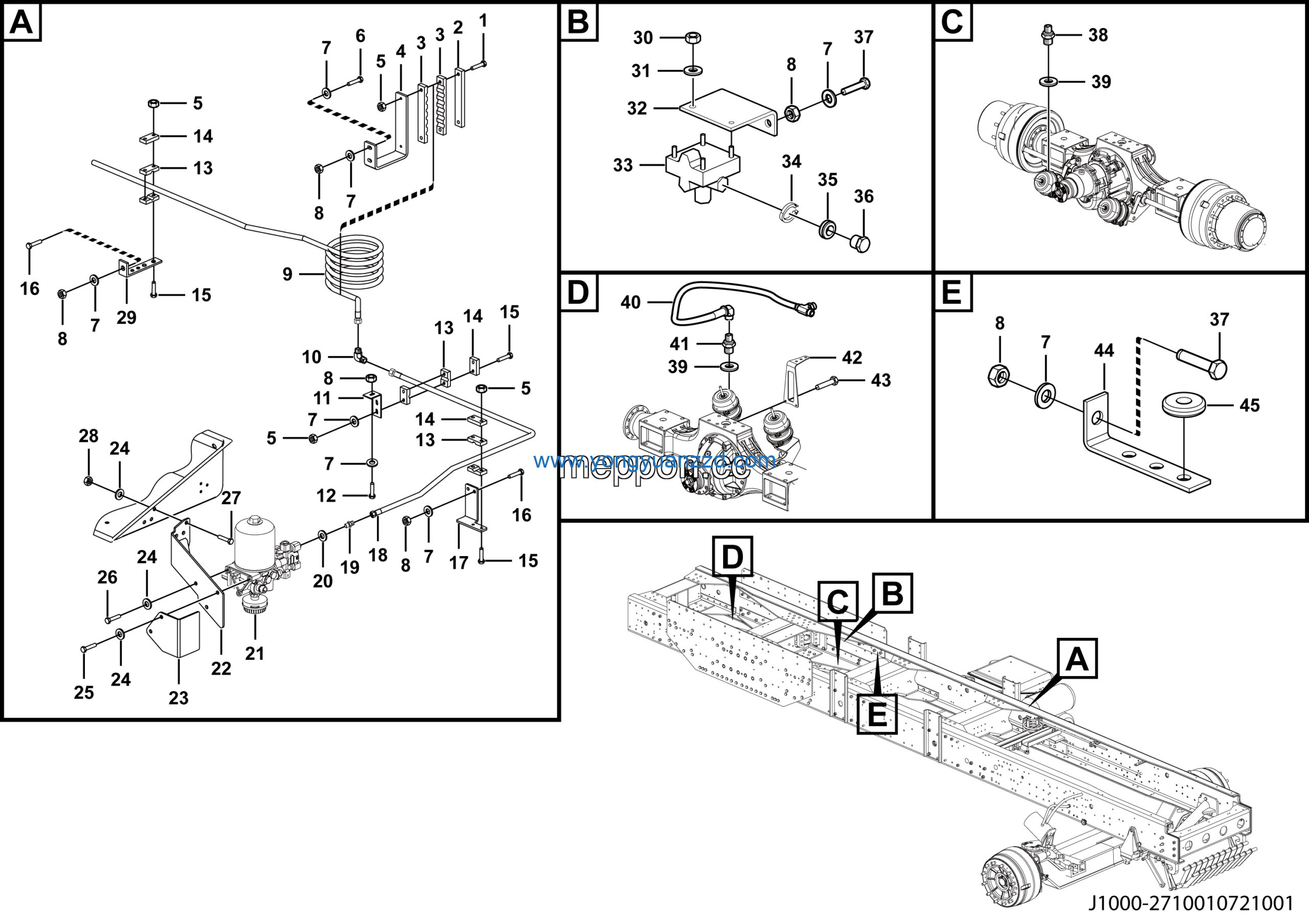

LGMG MT76 Mine Truck – Brake service assembly – J1000-2710010721001
Category: Mine Truck > MT76 > M0760HA00
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | M22-M22 Rectangular joint | 27100105931 | 1 |
| 2 | Bracket | 27100106361 | 1 |
| 3 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 5 |
| 4 | Rubber fixed chunk | 27100104181 | 6 |
| 5 | Fixed plate | 27100104191 | 3 |
| 6 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 6 |
| 7 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 5 |
| 8 | Bracket | 27100105771 | 1 |
| 9 | Pipe assembly | 27100107182 | 1 |
| 10 | M22-m22 rectangular connector | 27100100691 | 1 |
| 11 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
| 12 | Washer JB982-22 | 4015000092 | 1 |
| 13 | Air Handling unit | 4120001086 | 1 |
| 14 | The dryer bracket | 27100107331 | 1 |
| 15 | Guard plate | 27100107411 | 1 |
| 16 | Washer GB97.1-12EpZn-300HV | 4015000168 | 10 |
| 17 | Bolt GB5786-M12*1.5*35EpZn-8.8 | 4011010010 | 2 |
| 18 | Bolt GB5786-M12*1.5*30EpZn-8.8 | 4011000317 | 1 |
| 19 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 7 |
| 20 | Nut GB6170-M12EpZn-8 | 4013000011 | 7 |
| 21 | Steel tube support | 27100105871 | 3 |
| 22 | Plate | 27100105741 | 1 |
| 23 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 24 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 25 | Relay valve bracket | 27100103551 | 1 |
| 26 | Relay valve | 4120000137 | 1 |
| 27 | Clip spring NG8 | 4120000196 | 1 |
| 28 | Elastic element NG8 | 4120000197 | 1 |
| 29 | Nut seat NG8 | 4120000194 | 1 |
| 30 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 3 |
| 31 | CONNECTOR | 27100100661 | 4 |
| 32 | Washer JB982-16 | 4015000141 | 6 |
| 33 | Rubber clip | 27100105751 | 2 |
| 34 | Brake pipe assembly | 4120001266 | 1 |
| 35 | M16-M18 rectangular connector | 27100100641 | 2 |
| 36 | Rear axle pipe bracket | 27100103811 | 1 |
| 37 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 38 | Bracket 1 | 27100103561 | 1 |
| 39 | Spacer ring | 4120000226 | 3 |
| 40 | Spiral steel pipe bracket | 27100106591 | 1 |
| 41 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 42 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 2 |
| 43 | Washer GB97.1-10EpZn-300HV | 4015000162 | 15 |
| 44 | Nut GB6170-M10EpZn-8 | 4013000007 | 13 |
| 45 | Spiral steel pipe | 27100106351 | 1 |
