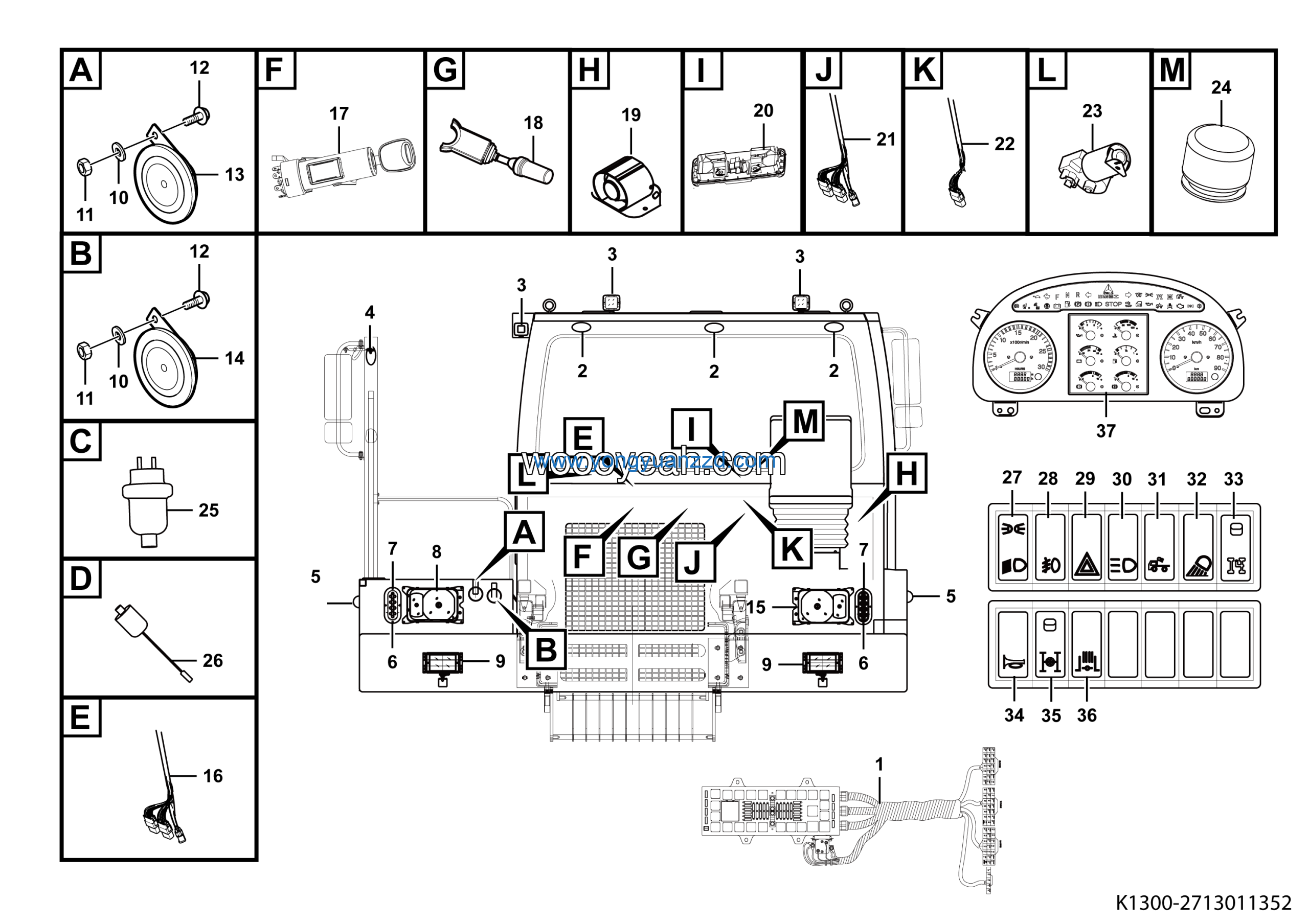

LGMG MT76 Mine Truck – Cab electrical system – K1300-2713011352
Category: Mine Truck > MT76 > M0760HA00
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 2 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 3 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 2 |
| 4 | Monophonic disc wooFer（treble） | 4130000028 | 1 |
| 5 | Monophonic disc woofer | 4130000029 | 1 |
| 6 | FR headlamp（LH） | 4130000249 | 1 |
| 7 | Cab harness | 27130115291 | 1 |
| 8 | Lgnition lock assy LG751 | 4130000309 | 1 |
| 9 | Combination switch CS-102599 | 4130000308 | 1 |
| 10 | Alarm | 4130000261 | 1 |
| 11 | Centor electrical control unit KZQ-003A | 4130000618 | 1 |
| 12 | Indoor ceiling lamp LG751 | 4130000312 | 1 |
| 13 | Cab ceiling harness | 27200102772 | 1 |
| 14 | Head cap harness | 27200102781 | 1 |
| 15 | Wiper motor | 4190000432 | 1 |
| 16 | Cigarette lighter LG770 | 4130000364 | 1 |
| 17 | Air pressure sensor YG2221S（M16*1.5） | 4130000012 | 2 |
| 18 | Stop lamp switch YK209KLA | 4130000492 | 1 |
| 19 | Work/position light rocker switch JK939C | 4130000318 | 1 |
| 20 | FR fog lamp rocker switch JK939C | 4130000314 | 1 |
| 21 | Central alarm rocker switch JK939C | 4130000320 | 1 |
| 22 | CAB INDICATOR LAMP-LG751 | 4130000313 | 4 |
| 23 | Main-beam headlamp rocker switch JK939C | 4130000331 | 1 |
| 24 | Cab RR work lamp rocker switch JK939C | 4130000342 | 1 |
| 25 | Work lamp rocker switch JK939C | 4130000319 | 1 |
| 26 | Parking power rocker switch JK939C | 4130000316 | 1 |
| 27 | Horn rocker switch JK939C | 4130000315 | 1 |
| 28 | Rocker switch JK939C（Differential） | 4130000317 | 1 |
| 29 | Exhaust brake rocker switch JK939C | 4130000322 | 1 |
| 30 | Indicator assembly ZB208FLGA3414B-4.0JBS | 4130000699 | 1 |
| 31 | RR working lamp 1GA 996.506-52 | 4130000576 | 3 |
| 32 | Platform harness | 27200102601 | 1 |
| 33 | Side steering lamp 43-3001A | 4130000343 | 2 |
| 34 | LED FR steering lamp | 4130000252 | 2 |
| 35 | Bolt GB16674.1-M5*16EpZn-8.8 | 4011010372 | 8 |
| 36 | FR headlamp（RH） | 4130000250 | 1 |
| 37 | FR fog lamp | 4130000664 | 2 |
