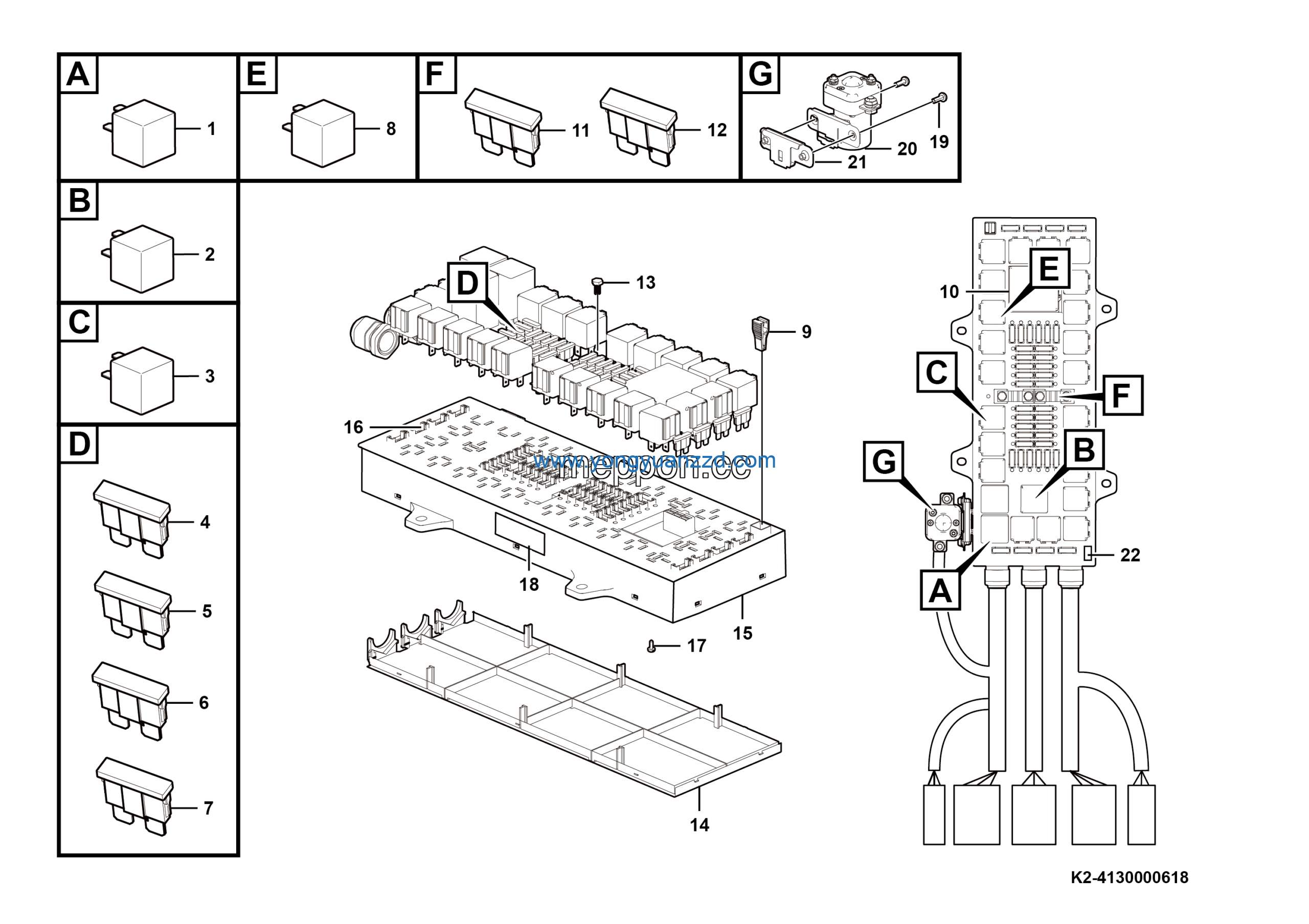

LGMG MT76 Mine Truck – Centor electrical control unit KZQ-003A – K2-4130000618
Category: Mine Truck > MT76 > M0760WE70
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Wiper intermittent controller JQ404A | 4130000620 | 1 |
| 2 | Fuse ANS 50A | 4130000392 | 1 |
| 3 | Fuse ANS-40A | 4130000391 | 1 |
| 4 | Copper cylinder 11EM8.074.038 | 4130000395 | 4 |
| 5 | Lower plate 11EM8.051.128 | 4130000397 | 1 |
| 6 | Upper plate 11EM8.051.127 | 4130000396 | 1 |
| 7 | PCB 11EM8.051.127 | 4130000398 | 1 |
| 8 | Screw GB845-ST2.9*9.5-C-H | 4019010160 | 14 |
| 9 | Identification 11EM8.861.119 | 4130000621 | 1 |
| 10 | Screw GB 9074.8 -M4*12 | 4019010161 | 6 |
| 11 | Buzzer relay JQ911C | 4130000393 | 2 |
| 12 | Contactor JCC100/1C24.48A | 4130000337 | 1 |
| 13 | Fixing 11EM8.060.176 | 4130000400 | 1 |
| 14 | Identification 11EM8.861.120 | 4130000622 | 1 |
| 15 | Lighter relay JQ608A | 4130000335 | 1 |
| 16 | Normally open relay JQ201S-AED | 4130000368 | 20 |
| 17 | Fuse ATS-5A | 4130000375 | 3 |
| 18 | Fuse ATS-10A | 4130000376 | 18 |
| 19 | Fuse ATS-15A | 4130000377 | 11 |
| 20 | Fuse ATS-20A | 4130000378 | 5 |
| 21 | Conversion relay JQ202S-AED | 4130000401 | 2 |
| 22 | Piece-puling component PP1402205 | 4130000394 | 1 |
