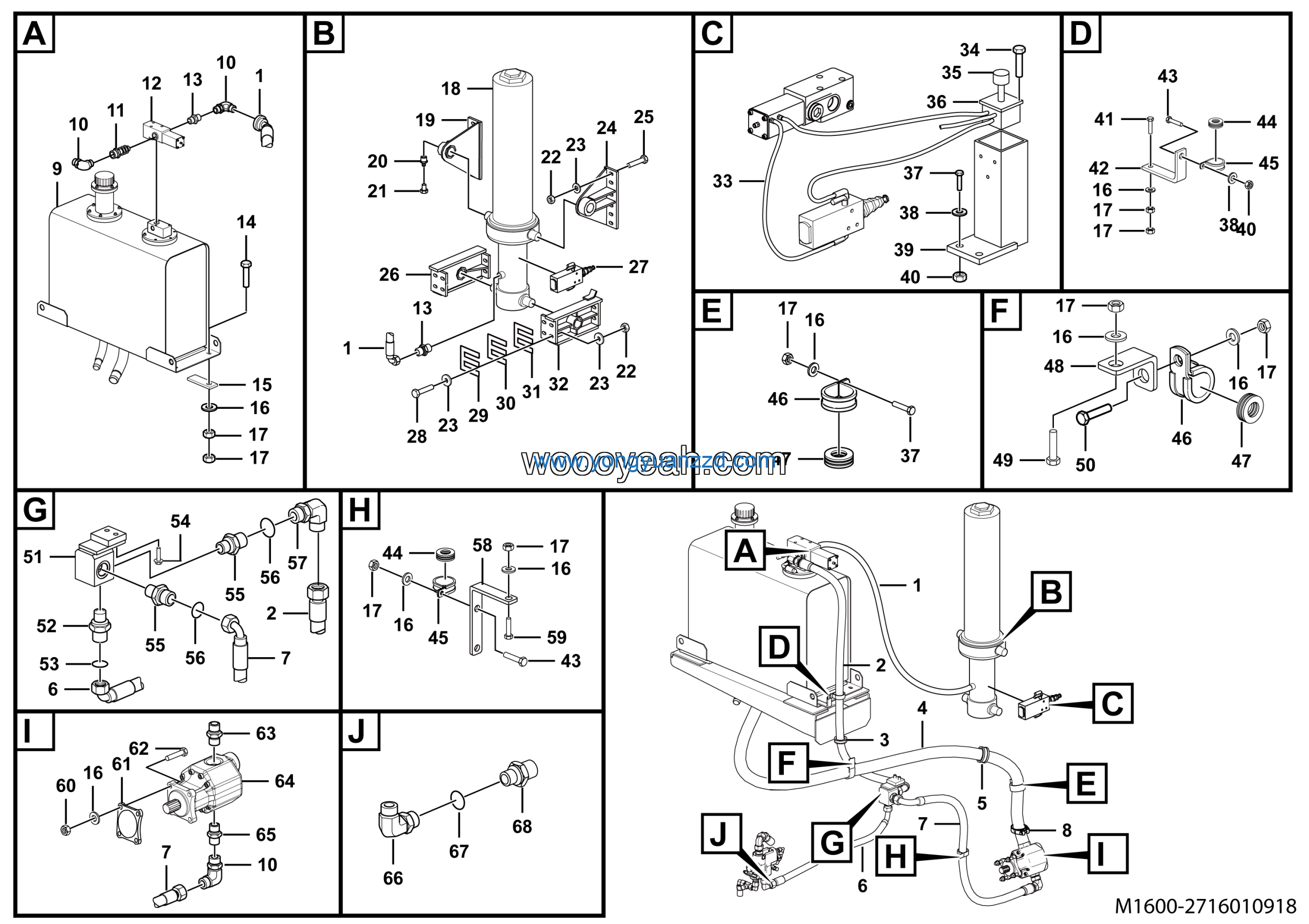

LGMG MT76 Mine Truck – Hydraulic lifting assembly – M1600-2716010918
Category: Mine Truck > MT76 > M0760WAA0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | JOINT LGB143-03625 | 4041001211 | 3 |
| 2 | Check valve | 4120000990 | 1 |
| 3 | Lifting valve | 4120001101 | 1 |
| 4 | Straight joint 1CB-36-16 | 4120000581 | 2 |
| 5 | Bolt GB5782-M12*65EpZn-8.8 | 4011000261 | 3 |
| 6 | Pad | 27160104481 | 4 |
| 7 | Washer GB97.1-12EpZn-300HV | 4015000168 | 15 |
| 8 | Nut GB6170-M12EpZn-8 | 4013000011 | 11 |
| 9 | Hydraulic lifting cylinder | 4120001020 | 1 |
| 10 | Hydro-cylinder bracket（RH） | 4120001007 | 1 |
| 11 | HIGH PRESSURE HOSE -1650 | 27160105701 | 1 |
| 12 | Butter nozzle | 4120001010 | 4 |
| 13 | No longer used | 4030000107 | 4 |
| 14 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 28 |
| 15 | Washer GB1230-16EpZn-45 | 4015000001 | 44 |
| 16 | Hydro-cylinder bracket（LH） | 4120001006 | 1 |
| 17 | Bolt GB5782-M16*65EpZn-10.9 | 4011010012 | 12 |
| 18 | Frame bracket | 4120001008 | 1 |
| 19 | Limit valve | 4120001018 | 1 |
| 20 | Bolt GB5782-M16*60EpZn-10.9 | 4011000607 | 16 |
| 21 | Trimmed gasket | 27160106411 | 1 |
| 22 | Hose assembly | 27160108341 | 1 |
| 23 | Trimmed gasket | 27160106421 | 1 |
| 24 | Trimmed gasket | 27160106431 | 1 |
| 25 | Frame bracket | 27160106881 | 1 |
| 26 | Gas line | 4120001022 | 1 |
| 27 | Bolt GB16674.1-M6*12EpZn-8.8 | 4011010234 | 3 |
| 28 | Pneumatic control valve assy | 4120001213 | 1 |
| 29 | Pneumatic valve mounting kit | 4120001024 | 1 |
| 30 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 3 |
| 31 | Washer GB97.1-10EpZn-300HV | 4015000162 | 5 |
| 32 | Bracket | 27160100061 | 1 |
| 33 | FAGGING | 27140106971 | 3 |
| 34 | Nut GB6170-M10EpZn-8 | 4013000007 | 5 |
| 35 | Bolt GB5782-M12*70EpZn-8.8 | 4011000212 | 1 |
| 36 | Plate | 27160104461 | 1 |
| 37 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 38 | Cushion sleeve LGB123-0635 | 4041001253 | 2 |
| 39 | Pipe clamp LGB167-0635 | 4041000801 | 2 |
| 40 | No longer used | 4041010220 | 2 |
| 41 | Cushion sleeve LGB123-1060 | 4041000866 | 2 |
| 42 | Bracket | 27160108781 | 1 |
| 43 | Bolt GB5783-M12*35EpZn-8.8 | 4011000090 | 1 |
| 44 | Hose | 27160107281 | 1 |
| 45 | Bolt GB5783-M12*25EpZn-8.8 | 4011000197 | 1 |
| 46 | Block | 27160108321 | 1 |
| 47 | Straight joint LGB155-02730 | 4041000140 | 1 |
| 48 | O-ring GB3452.1-28.0*2.65G | 4030000090 | 1 |
| 49 | Bolt GB16674.1-M12*25EpZn-8.8 | 4011000560 | 2 |
| 50 | Straight joint LGB155-03336 | 4041001038 | 2 |
| 51 | O-ring GB3452.1-32.5*2.65G | 4030000276 | 2 |
| 52 | Combination joint LGB143-13625 | 4041001485 | 1 |
| 53 | Plate | 27160108631 | 1 |
| 54 | Bolt GB5783-M12*45EpZn-8.8 | 4011000207 | 1 |
| 55 | GUARD | 27160106271 | 2 |
| 56 | Nut GB6170-M12EpZn-10 | 4013000150 | 4 |
| 57 | Gasket | 27160104721 | 1 |
| 58 | Bolt GB5782-M12*60EpZn-10.9 | 4011010334 | 4 |
| 59 | Low pressure joint G1 1/4-φ46 | 4120001028 | 1 |
| 60 | Gear pump CBW57G080R | 4120001079 | 1 |
| 61 | Joint GE28LR11/4EDOMD | 4190001242 | 1 |
| 62 | Combination joint LGB143-03019 | 4041001262 | 1 |
| 63 | O-ring LGB168-12331 | 4041000779 | 1 |
| 64 | Straight joint LGB120-03028 | 4041000188 | 1 |
| 65 | Hose assembly lgb128-012102 | 4041010176 | 1 |
| 66 | Hose assembly | 27160108641 | 1 |
| 67 | Double head double layer clamp 50-60 | 4120000953 | 2 |
| 68 | Hydraulic oil tank assembly | 27160105501 | 1 |
