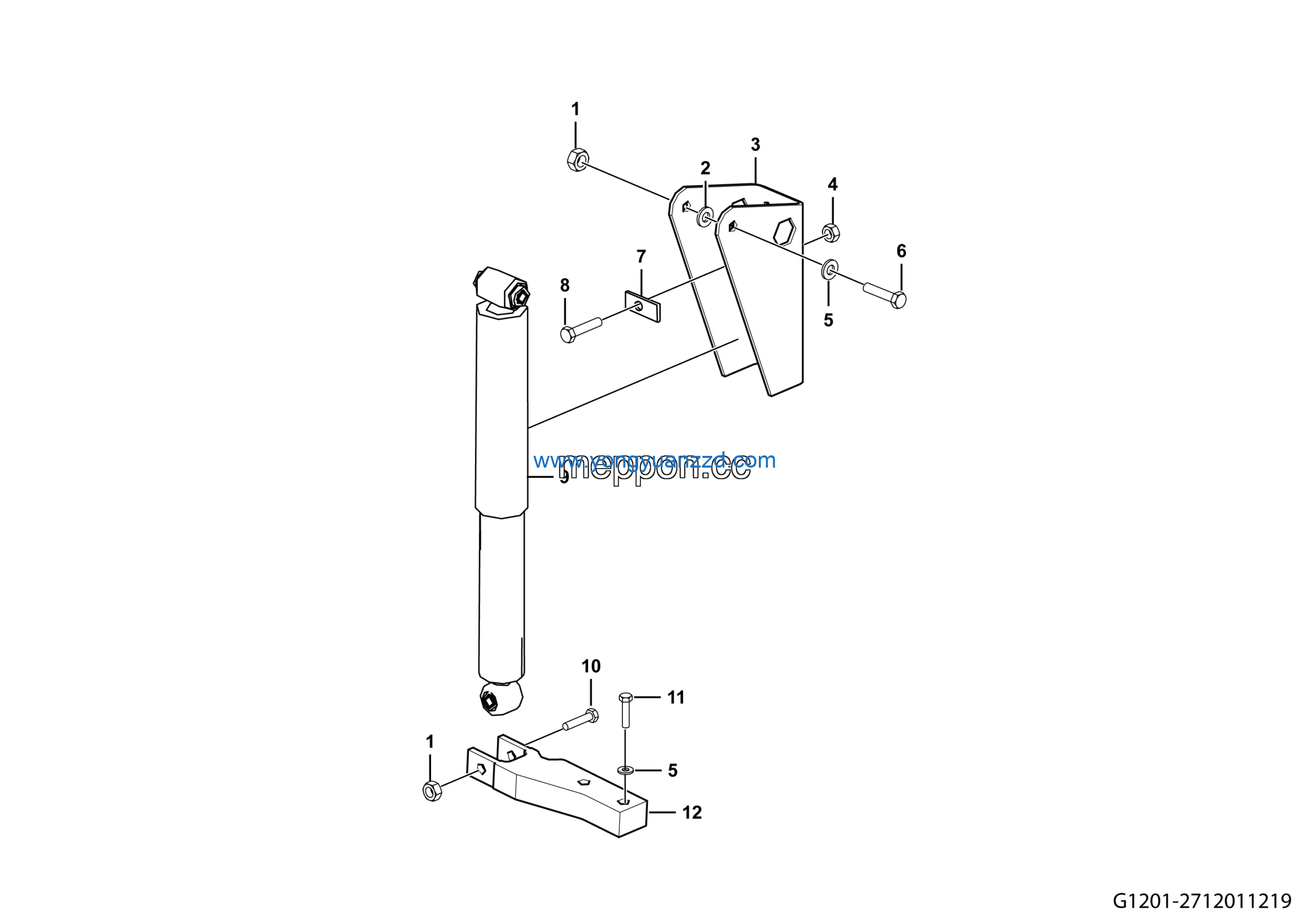

LGMG MT76 Mine Truck – Shock absorber intall assembly – G1201-2712011219
Category: Mine Truck > MT76 > M0760WEE0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5785-M16*1.5*90EpZn-10.9 | 4011000879 | 2 |
| 2 | Bolt GB5785-M16*1.5*70EpZn-8.8 | 4011000499 | 4 |
| 3 | Shock absorber down bracket assembly | 27120104041 | 2 |
| 4 | No longer used | 4013010182 | 4 |
| 5 | No longer used | 4015000305 | 8 |
| 6 | Front shock absorber holder | 27120106992 | 2 |
| 7 | Nut GB6185.2-M12EpZn-8 | 4013010159 | 8 |
| 8 | Washer GB97.1-16EpZn-300HV | 4015000181 | 6 |
| 9 | Bolt GB5785-M16*1.5*130EpZn-10.9 | 4011010135 | 2 |
| 10 | Backing plate | 27120104201 | 4 |
| 11 | Bolt GB5786-M12*1.25*45EpZn-8.8 | 4011010405 | 8 |
| 12 | Shock absorber assy | 4110001000 | 2 |
