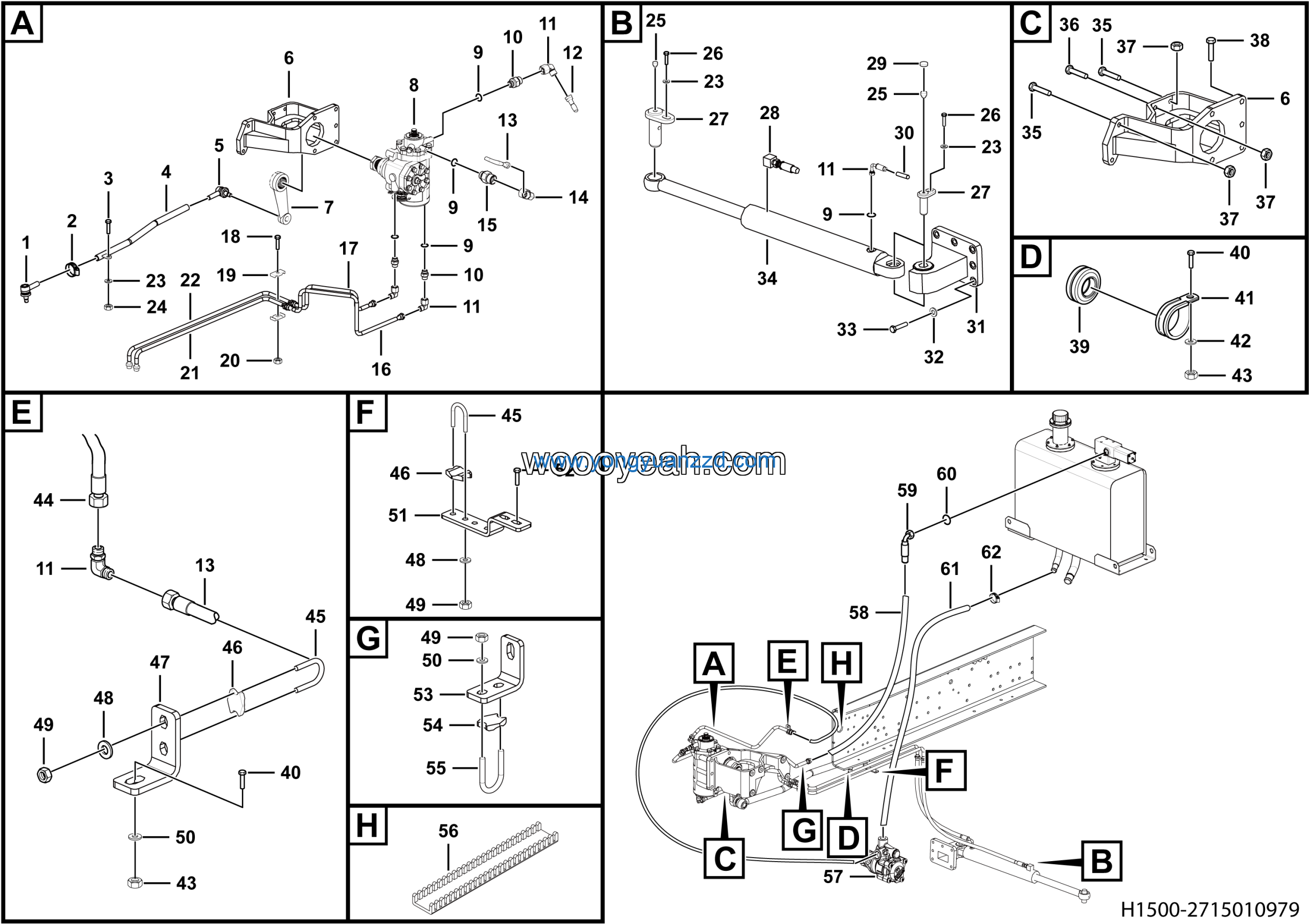

LGMG MT76 Mine Truck – Steering assembly – H1500-2715010979
Category: Mine Truck > MT76 > M0760WED0
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Straight joint LGB155-01822 | 4041000822 | 4 |
| 2 | Combination joint LGB143-02213 | 4041001156 | 4 |
| 3 | Steering box fuel inlet steel pipe | 27150107541 | 1 |
| 4 | Steering box fuel return steel pipe | 27150107521 | 1 |
| 5 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 6 | Straight joint | 27150102981 | 1 |
| 7 | Steel pipe assembly | 27150107501 | 1 |
| 8 | Steel pipe assembly | 27150107481 | 1 |
| 9 | Bolt GB5782-M16*65EpZn-8.8 | 4011000459 | 1 |
| 10 | BLOCK | 27150102811 | 2 |
| 11 | Steering link headball | 27150100661 | 1 |
| 12 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 1 |
| 13 | Steel pipe assembly A | 27150107821 | 1 |
| 14 | Steel pipe assembly B | 27150107841 | 1 |
| 15 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 16 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 17 | Grease nipple JB7940.1-M10*1 | 4030000065 | 2 |
| 18 | Bolt GB5783-M12*25EpZn-8.8 | 4011000197 | 2 |
| 19 | Axis | 27150108681 | 2 |
| 20 | hose assembly | 4041010113 | 1 |
| 21 | Butter nozzle cap JXHF-00006 | 4120000015 | 2 |
| 22 | CLAMP JB8870-D110 | 4017000012 | 1 |
| 23 | PIPE LGB128-006075 | 4041000702 | 1 |
| 24 | Front axle steering anchorage | 27150107401 | 1 |
| 25 | Washer GB93-16-65Mn | 4015000098 | 6 |
| 26 | Bolt GB5783-M16*45EpZn-10.9 | 4011000564 | 6 |
| 27 | Booster cylinder HSGL-70*40*405-730 | 4120001104 | 1 |
| 28 | Bolt GB5783-M16*65EpZn-10.9 | 4011000665 | 4 |
| 29 | Bolt GB5782-M16*80EpZn-10.9 | 4011000438 | 1 |
| 30 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 5 |
| 31 | No longer used | 4011010178 | 5 |
| 32 | Cushion sleeve LGB123-0952 | 4041010216 | 2 |
| 33 | Bolt GB5782-M12*60EpZn-8.8 | 4011000260 | 2 |
| 34 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 3 |
| 35 | Pipe clamp LGB167-0952 | 4041000800 | 2 |
| 36 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 37 | Nut GB6170-M10EpZn-8 | 4013000007 | 3 |
| 38 | Hose pipe LGB128-006134 | 4041001192 | 1 |
| 39 | U-Bolt LGB159-11826 | 4041001225 | 3 |
| 40 | Baseplate LGB160-1826 | 4041001226 | 3 |
| 41 | Bracket | 27150105991 | 1 |
| 42 | Washer GB96.1-8EpZn-300HV | 4015000256 | 8 |
| 43 | Nut GB6170-M8EpZn-8 | 4013000033 | 8 |
| 44 | Steering link assembly | 27150109811 | 1 |
| 45 | Washer GB96.1-10EpZn-300HV | 4015000197 | 1 |
| 46 | Bracket | 27150104301 | 1 |
| 47 | Bolt GB5783-M8*40EpZn-8.8 | 4011000299 | 2 |
| 48 | Bracket | 27150106161 | 1 |
| 49 | Baseplate LGB160-2028 | 4041001240 | 1 |
| 50 | U-bolt LGB159-12028 | 4041001239 | 1 |
| 51 | Binding protection tube | 27140110421 | 1 |
| 52 | Steering pump assembly(ZF) | 27150106131 | 1 |
| 53 | Hose LGB165-010300 | 4041010111 | 1 |
| 54 | Straight joint LGB120-02622 | 4041000187 | 1 |
| 55 | Steering link headball | 27150100671 | 1 |
| 56 | O-ring LGB168-11924 | 4041000771 | 1 |
| 57 | Hose | 27150106521 | 1 |
| 58 | No longer used | 4030100020 | 2 |
| 59 | Steering box bracket | 27150107391 | 1 |
| 60 | Steering arm | 4120001461 | 1 |
| 61 | Steering gear NT12590P | 4120001029 | 1 |
| 62 | O-ring GB3452.1-19.0*2.65G | 4030000280 | 5 |
