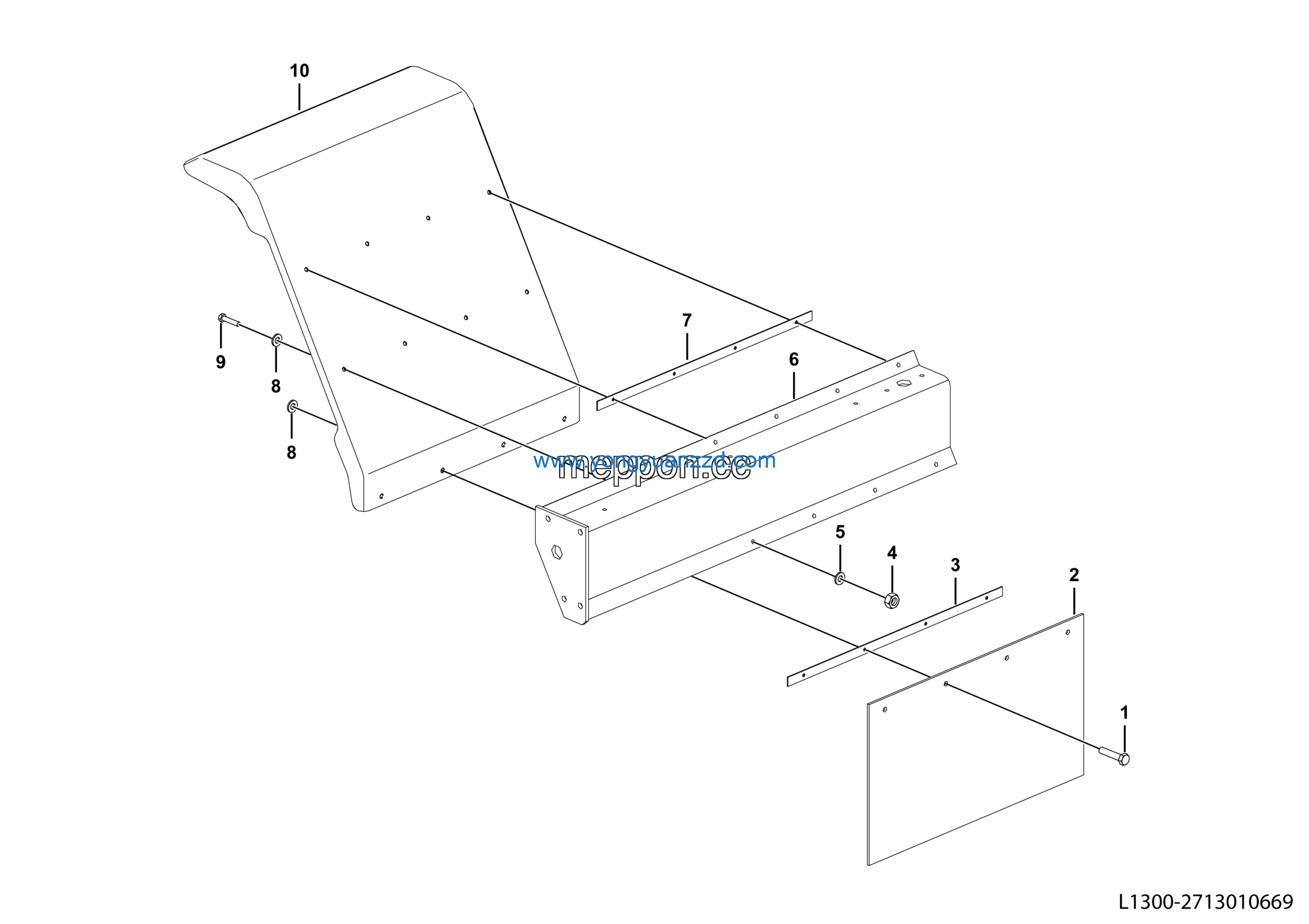

LGMG MT76 Mine Truck – The right to block masonry assembly – L1300-2713010669
Category: Mine Truck > MT76 > M0760HA00
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 2 | Rubber blade | 27130102582 | 1 |
| 3 | Clamping plate | 27130102601 | 1 |
| 4 | The right brace | 27130106751 | 1 |
| 5 | Right mudguard | 27130105071 | 1 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 7 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 8 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 8 |
| 9 | Rubber gasket | 27130113531 | 2 |
| 10 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
