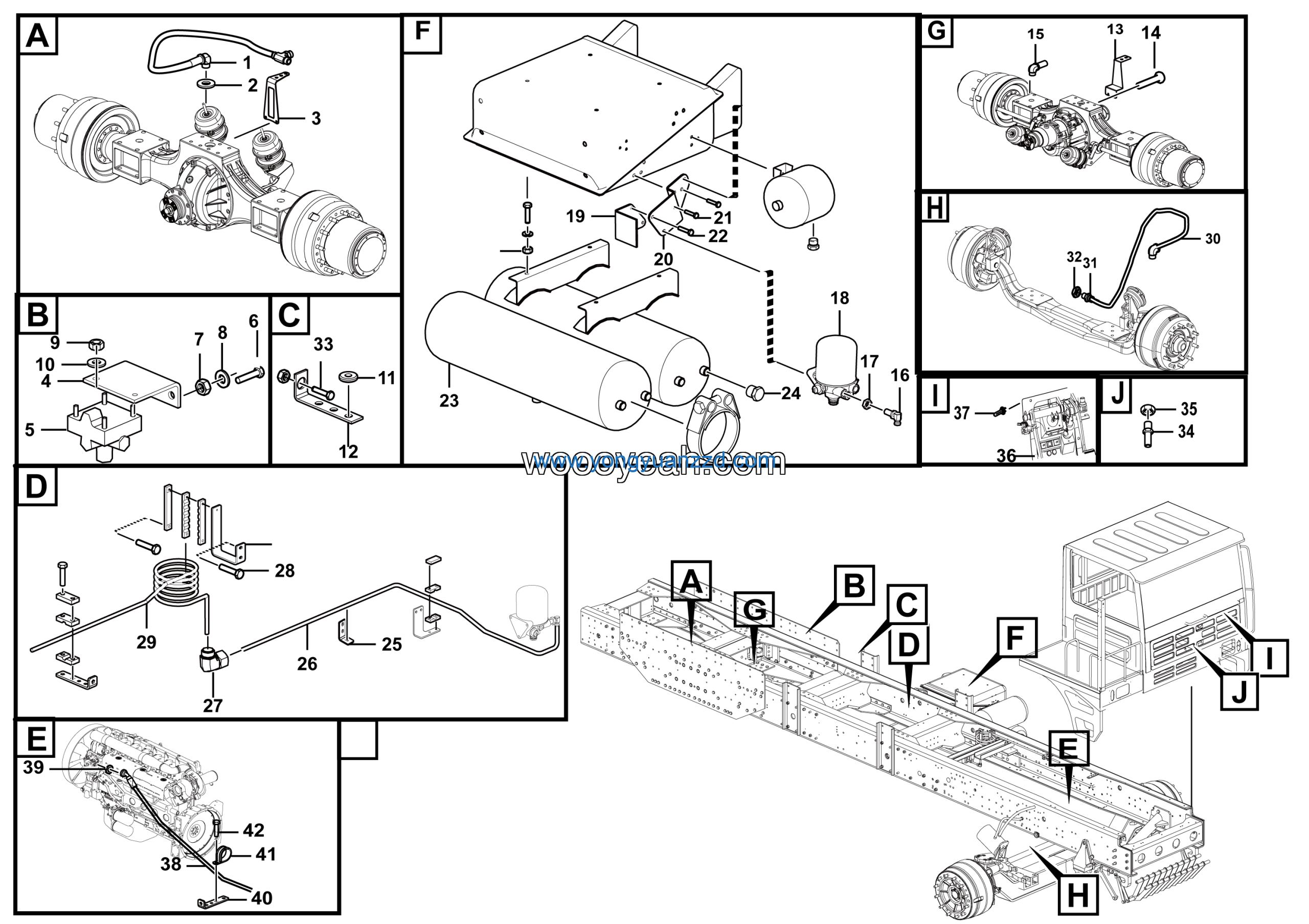

LGMG MT76 Mine Truck – Travel brake – J1-2710010652001
Category: Mine Truck > MT76 > M0760WE70
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-8EpZn-300HV | 4015000072 | 5 |
| 2 | Spacer ring | 4120000226 | 3 |
| 3 | Bracket 1 | 27100103561 | 1 |
| 4 | Mid axle pipe bracket | 27100105561 | 1 |
| 5 | Bolt GB16674.1-M8*16EpZn-8.8 | 4011000461 | 2 |
| 6 | CONNECTOR | 27100100661 | 4 |
| 7 | M22-M22 direct head | 27100101031 | 1 |
| 8 | Washer JB982-22 | 4015000092 | 1 |
| 9 | Air dryer | 4120000135 | 1 |
| 10 | Guard plate | 27100106531 | 1 |
| 11 | M16-M18 rectangular connector | 27100100641 | 2 |
| 12 | The dryer bracket | 27100103631 | 1 |
| 13 | Bolt GB5786-M12*1.5*30EpZn-8.8 | 4011000317 | 1 |
| 14 | Bolt GB5786-M12*1.5*35EpZn-8.8 | 4011010010 | 2 |
| 15 | Air reservoir 50L | 4120000141 | 2 |
| 16 | Plug NG12-M22*1.5 | 4120000201 | 3 |
| 17 | Bracket | 27100106361 | 1 |
| 18 | Drier steel pipe | 27100106511 | 1 |
| 19 | M22-M22 Rectangular joint | 27100105931 | 1 |
| 20 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 2 |
| 21 | Spiral steel pipe | 27100106351 | 1 |
| 22 | Washer JB982-16 | 4015000141 | 6 |
| 23 | Air pipe GPU-13-I-800-SG | 27100104361 | 2 |
| 24 | Partition connector body L12 NG12 | 4120000257 | 2 |
| 25 | Nut M18 | 4120000230 | 5 |
| 26 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 3 |
| 27 | Straight bulkhead joint NG6/2-M16*1.5 | 4120000233 | 2 |
| 28 | Thin nut M16*1.5 | 4120000234 | 2 |
| 29 | Foot brake valve | 4120000133 | 1 |
| 30 | M14-NPT1/8 bulkhead union | 27100106211 | 1 |
| 31 | Steel wire hose | 27100106501 | 1 |
| 32 | Washer | 27010100551 | 1 |
| 33 | Rear axle pipe bracket | 27100103811 | 1 |
| 34 | Steel tube support | 27100105871 | 2 |
| 35 | Pipe clamp | 26370001941 | 1 |
| 36 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 3 |
| 37 | Relay valve bracket | 27100105091 | 1 |
| 38 | Relay valve | 4120000137 | 1 |
| 39 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 8 |
| 40 | Nut GB6170-M10EpZn-8 | 4013000007 | 19 |
| 41 | Washer GB97.1-10EpZn-300HV | 4015000162 | 23 |
| 42 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
