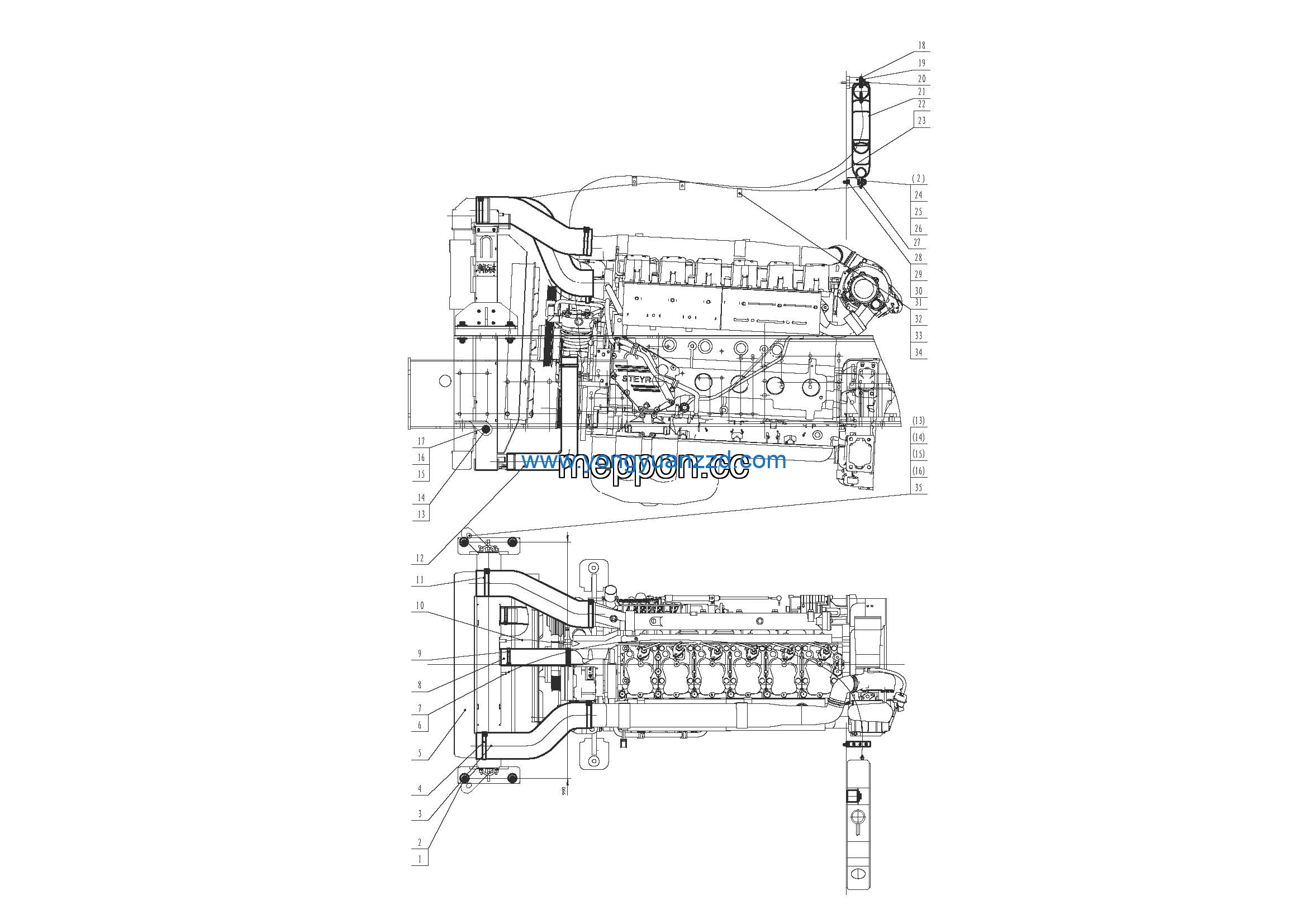

LGMG MT80 Mine Truck – radiator assembly – A4-2703010319
Category: Mine Truck > MT80 > 0M0800WA0P
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | pipe | 27030102201 | 1 |
| 2 | Intercooler outlet pipe | 27030101891 | 1 |
| 3 | pipe | 27030101901 | 1 |
| 4 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 2 |
| 5 | Washer GB96.1-10EpZn-300HV | 4015000197 | 2 |
| 6 | Block | 27030103031 | 2 |
| 7 | Spacer sleeve | 27030103041 | 2 |
| 8 | plate | 27030103011 | 1 |
| 9 | Rubber shock block | 4110000211 | 1 |
| 10 | washer | 27030102011 | 2 |
| 11 | Washer GB96.1-12EpZn-300HV | 4015000186 | 8 |
| 12 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 1 |
| 13 | Expansion water tank | 4190000607 | 1 |
| 14 | Water supply tube of water tank | 27030102031 | 1 |
| 15 | Hose clamp JB8870-D32 | 4017000011 | 2 |
| 16 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 2 |
| 17 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 18 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 19 | E*PANSION TANK BRACKET | 27030102221 | 1 |
| 20 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 21 | Washer GB93-8-65Mn | 4015000036 | 4 |
| 22 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 10 |
| 23 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 24 | Bracket 1 | 27100103561 | 4 |
| 25 | Nut GB6170-M6EpZn-8 | 4013000028 | 3 |
| 26 | Washer GB93-6-65Mn | 4015000035 | 3 |
| 27 | Washer GB97.1-6EpZn-300HV | 4015000207 | 3 |
| 28 | plate | 27030103021 | 1 |
| 29 | Intercooler intake pipe | 27030101881 | 1 |
| 30 | No longer used | 4019010001 | 4 |
| 31 | Radiator | 4110000174 | 1 |
| 32 | Air pipe | 27030102021 | 1 |
| 33 | No longer used | 4190000343 | 4 |
| 34 | pipe | 27030101911 | 1 |
| 35 | No longer used | 4019010101 | 4 |
