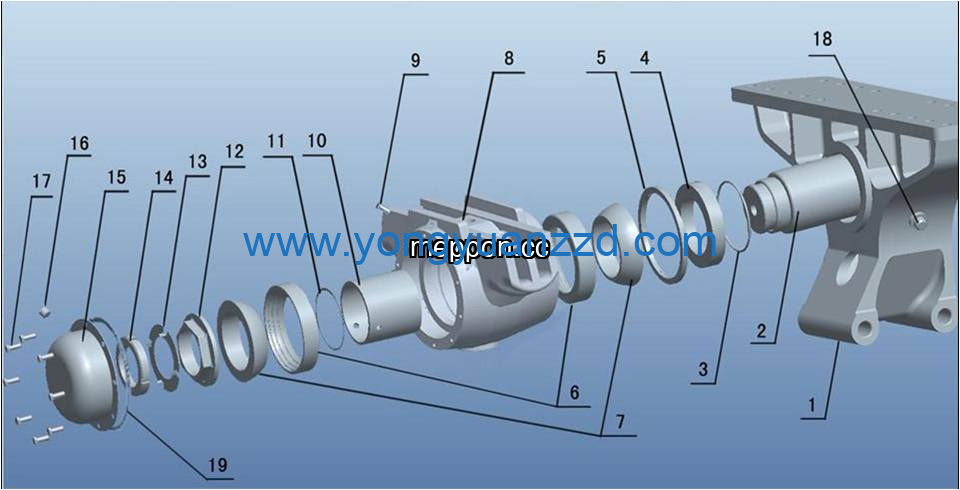

LGMG MT80C Mine Truck – Balance shaft assembly – G8-4110000589
Category: Mine Truck > MT80C > MT80C
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Spacer bushings 87029110031 | 4110000589010 | 2 |
| 2 | Locating washer 87029110037 | 4110000589011 | 2 |
| 3 | Thrust gasket（LH）TL87029180040 | 4110000589012 | 2 |
| 4 | Stop washer TL87029180041 | 4110000589013 | 2 |
| 5 | Grooved nut TL87029180030（RH） | 4110000589014 | 2 |
| 6 | Balance shaft housing cover LW87029110036Z | 4110000589021 | 1 |
| 7 | Refueling inspection plug Q61902 | 4110000589016 | 2 |
| 8 | Bolt & washer set Q150B0816/Q40308 | 4110000589017 | 16 |
| 9 | Rubber plug/cylindrical pin 87029110038/190003900008（GB120-86-A25X80） | 4110000589018 | 2 |
| 10 | O-ring 40002060 | 4110000589020 | 2 |
| 11 | Balance shaft bracket AZ9770520217 | 4110000589001 | 2 |
| 12 | Balance shaft LW87029180027A | 4110000589002 | 1 |
| 13 | O-ring 614130062A | 4110000589003 | 2 |
| 14 | Bearing seal cover 87029110134 | 4110000589004 | 2 |
| 15 | Shaft seal ring 87029110035A | 4110000589005 | 2 |
| 16 | Bearing outer ring 87029110032 | 4110000589006 | 4 |
| 17 | Bearing inner ring 87029110033 | 4110000589007 | 4 |
| 18 | Balance shaft housing LW87029180029 | 4110000589008 | 2 |
| 19 | Bolt & washer set Q150B0810/Q72308 | 4110000589009 | 2 |
