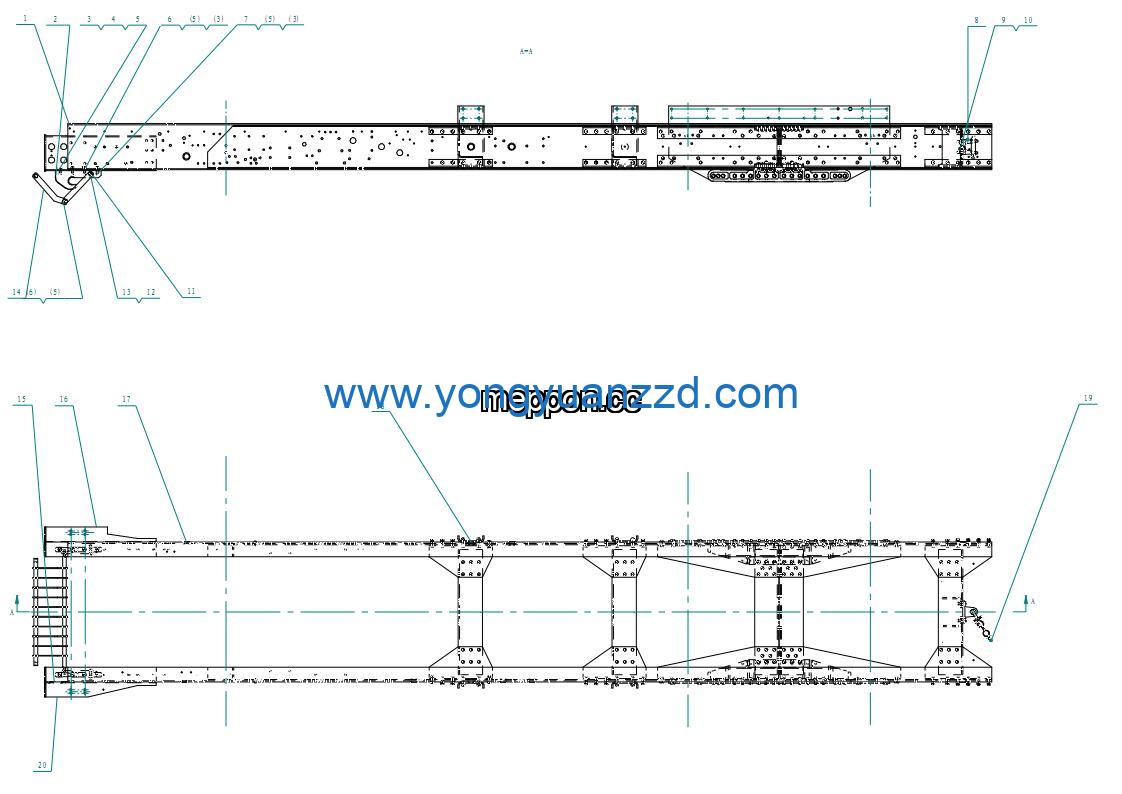

LGMG MT80C Mine Truck – CHASISS – I1-2714011154
Category: Mine Truck > MT80C > MT80C
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M16*60EpZn-8.8 | 4011000068 | 4 |
| 2 | Connecting rod | 27140104991 | 2 |
| 3 | Nut GB6171-M16*1.5-10 | 4013000196 | 2 |
| 4 | Bolt GB5785-M16*1.5*75EpZn-10.9 | 4011010151 | 2 |
| 5 | Front guard | 27140104951 | 1 |
| 6 | Walking wire sheath | 27140105041 | 2 |
| 7 | right plate asembly | 27140111561 | 1 |
| 8 | Guard | 27140105031 | 2 |
| 9 | String casing | 27140105021 | 8 |
| 10 | REAR PIN | 27140105881 | 1 |
| 11 | FRAME | 27140111551 | 1 |
| 12 | left plate asembly | 27140111581 | 1 |
| 13 | former draught catch | 27140104941 | 2 |
| 14 | Washer GB97.1-16EpZn-300HV | 4015000181 | 8 |
| 15 | Bolt GB5785-M16*1.5*35EpZn-10.9 | 4011010153 | 2 |
| 16 | Washer GB93-16-65Mn | 4015000098 | 10 |
| 17 | Bolt GB5785-M16*1.5*45EpZn-10.9 | 4011010152 | 6 |
| 18 | Bolt | 4011010011 | 2 |
| 19 | Rear traction seat | 27140104821 | 1 |
| 20 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 4 |
