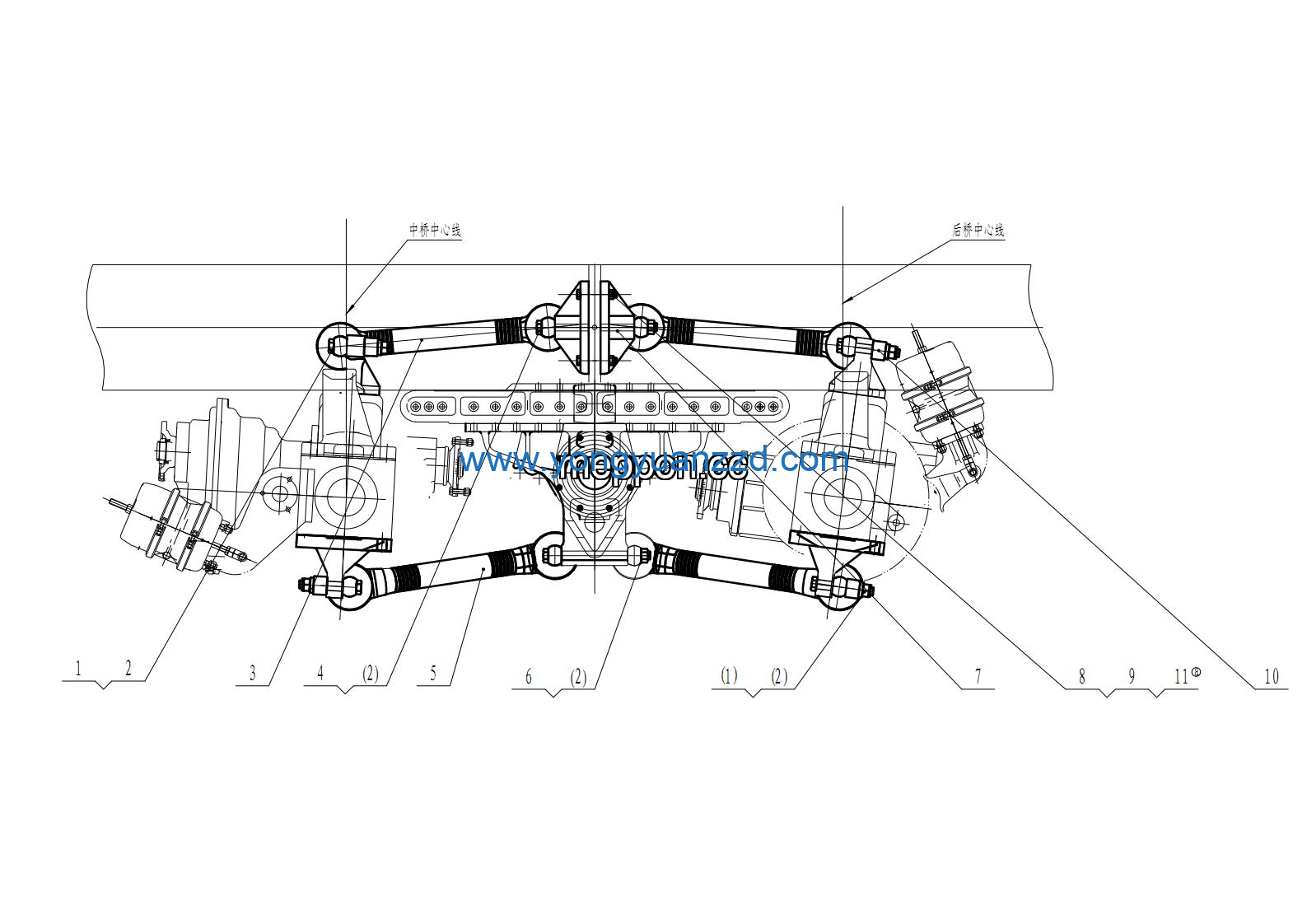

LGMG MT80C Mine Truck – Rear thrusting rod mounting assembly – G7-2712010392
Category: Mine Truck > MT80C > MT80C
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Spacer sleeve | 27120105031 | 12 |
| 2 | Washer GB1230-16EpZn-45 | 4015000001 | 6 |
| 3 | BOLT GB5782-M27*180-12.9 | 4011010191 | 12 |
| 4 | Hexangular self-locking nut with the shoulder M27 | 27120103881 | 18 |
| 5 | Upper thrusting rod assembly | 27120103861 | 2 |
| 6 | Bolt M27*3*370-12.9 | 27120103871 | 2 |
| 7 | Lower thrusting rod assembly | 27120103891 | 4 |
| 8 | Bolt M27*3*330-12.9 | 27120103721 | 4 |
| 9 | Thrust rod bearings | 27120104241 | 2 |
| 10 | Bolt GB5782-M16*110EpZn-10.9 | 4011000730 | 6 |
| 11 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 6 |
