LGMG MT86D Mine Truck – Drive shaft assy – F0900-4110000392
Category: Mine Truck > MT86D > M086DWA86

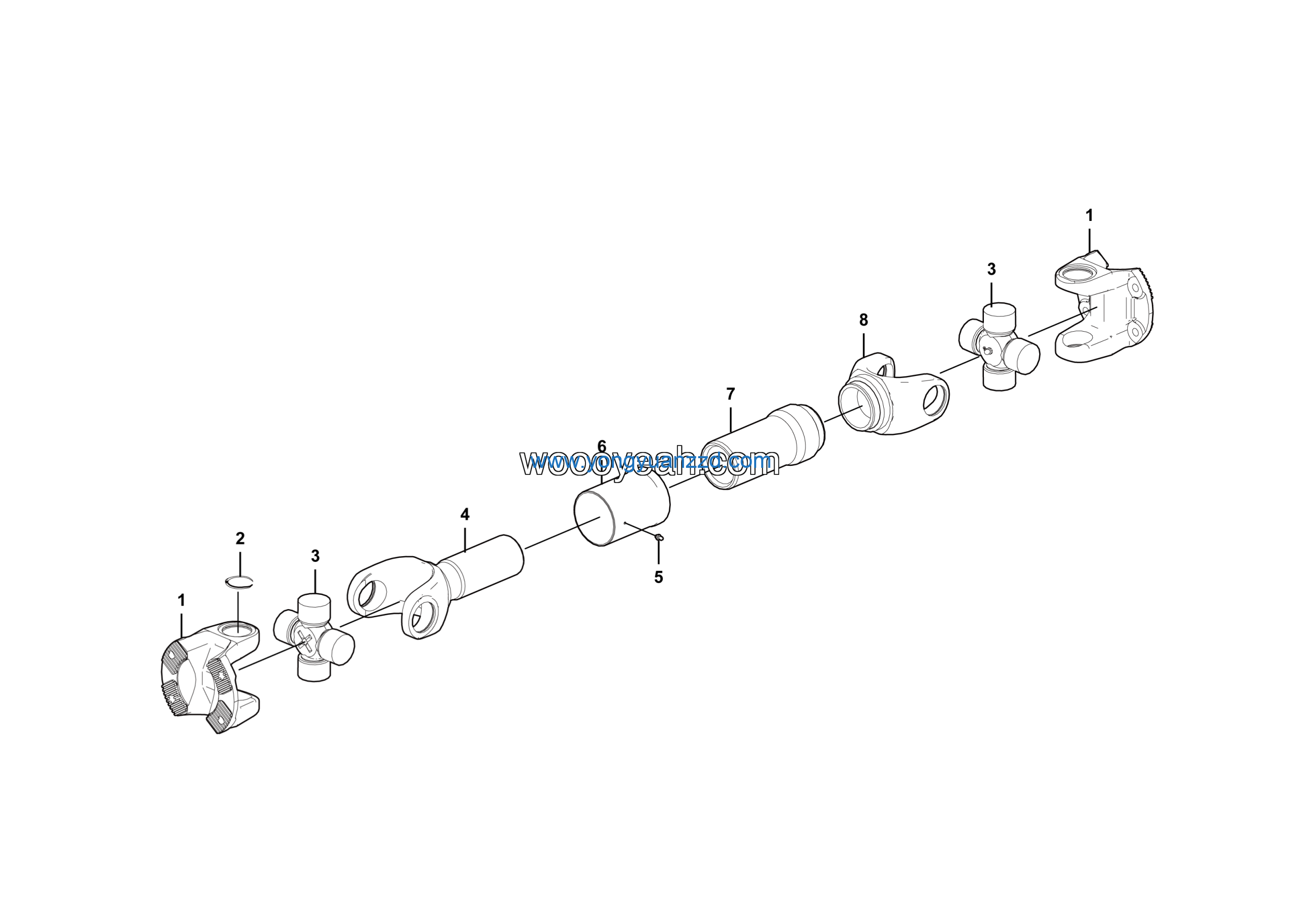

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | End tooth flange fork 5004110811 | 4110000186001 | 2 |
| 2 | 0069942941 Circlip | 4110000186002 | 8 |
| 3 | Universal cardan assy 395-57152 | 4110000186003 | 2 |
| 4 | Splined York | 4110000186004 | 1 |
| 5 | Grease nipple M6 | 4030000535 | 1 |
| 6 | Sheath pipe 0082FCZ-145 | 4110000186010 | 1 |
| 7 | Spline hub 1491.707-2205097-A | 4110000392001 | 1 |
| 8 | Cardan fork 5004110905 | 4110000186008 | 1 |
