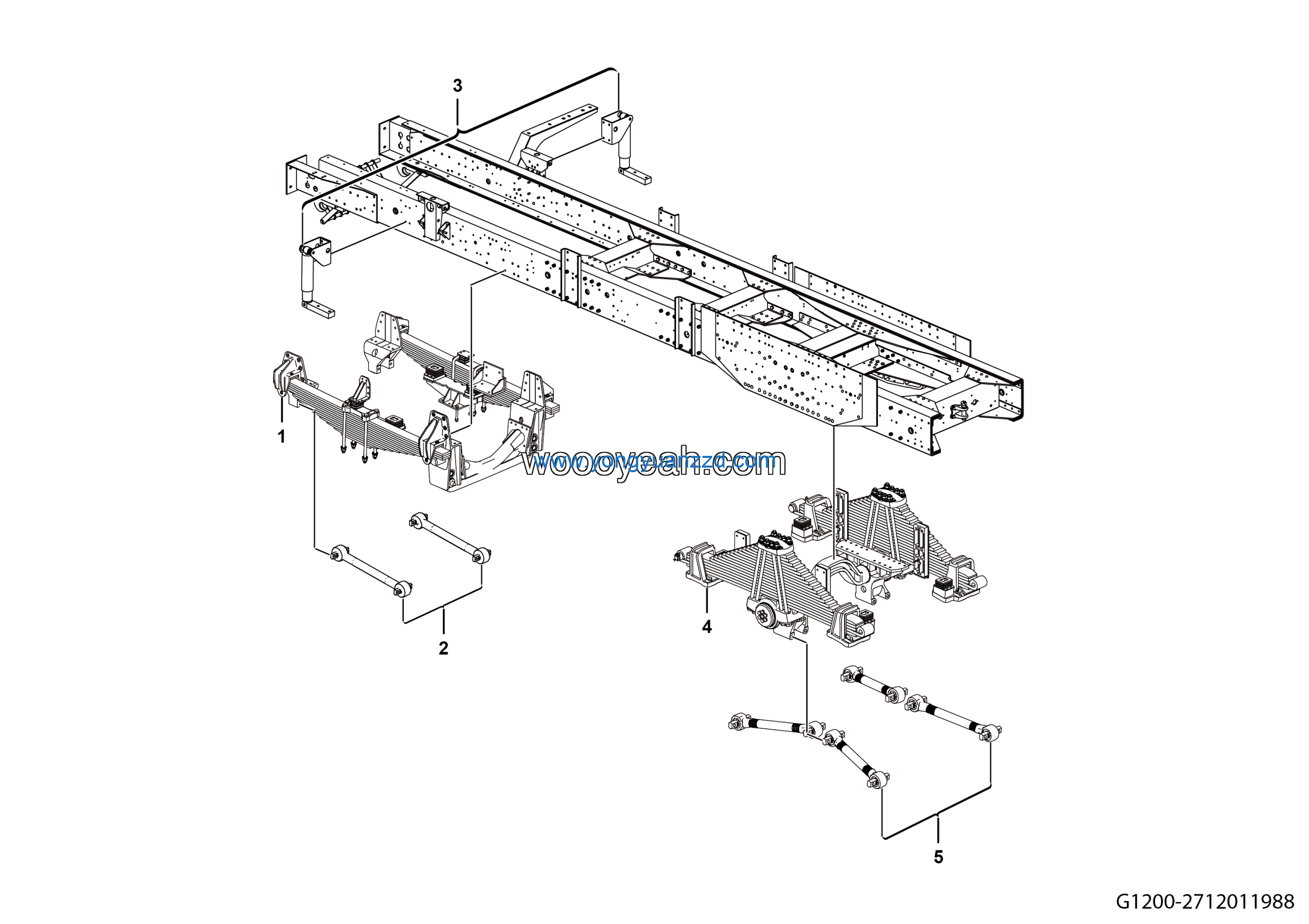

LGMG MT86D Mine Truck – Suspension assy – G1200-2712011988
Category: Mine Truck > MT86D > M086DWAH1
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Front the spring assembly | 27120119411 | 1 |
| 2 | Front thrust rod install assembly | 27120114131 | 1 |
| 3 | Shock absorber assembly | 27120114141 | 1 |
| 4 | Rear suspension assembly | 27120108981 | 1 |
| 5 | Rear thrusting rod mounting assembly | 27120103921 | 1 |
