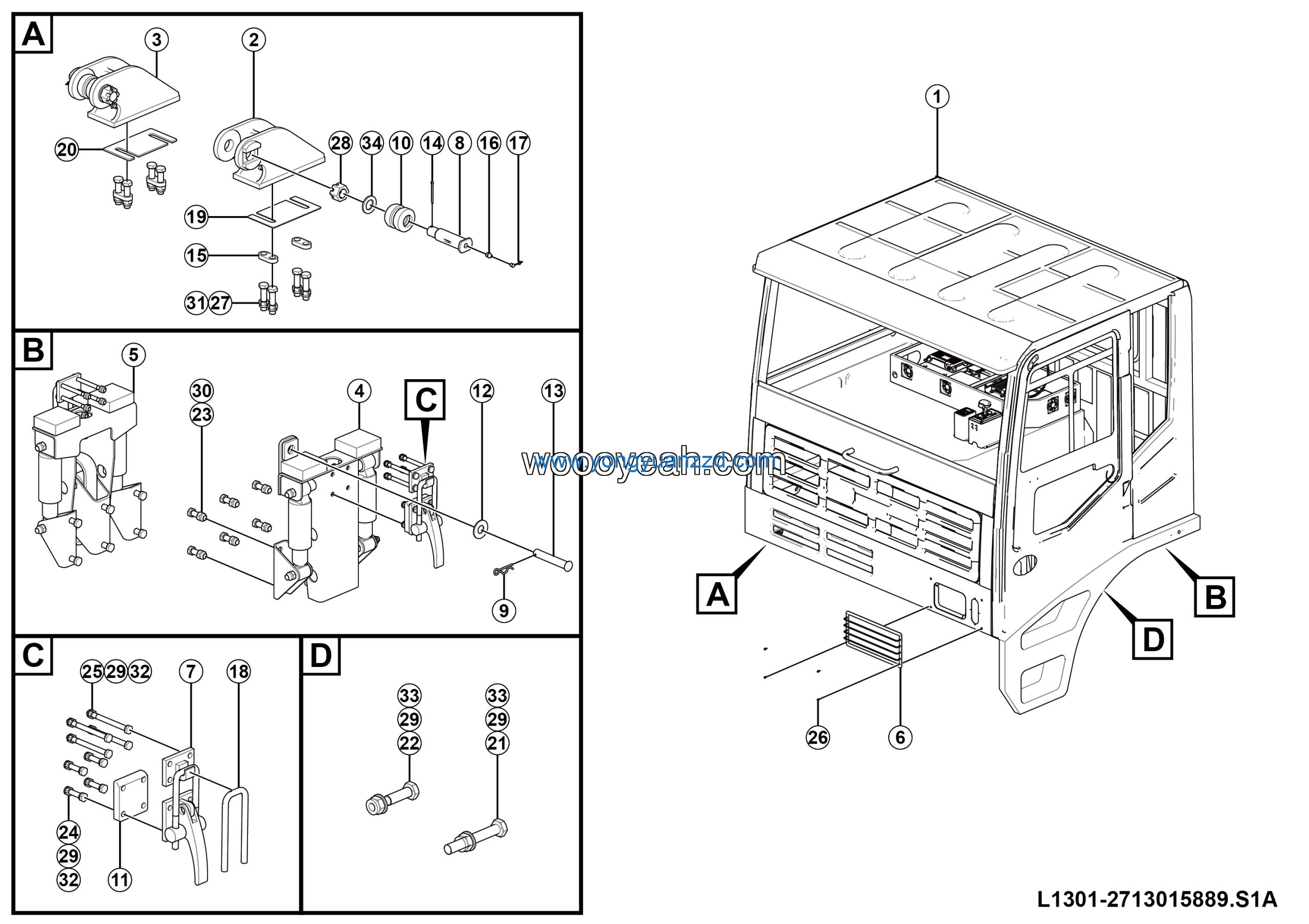

LGMG MT86H 2025 – Cab installation – L1301-2713015889.S1A
Category: 2025 > MT86H > M086HWG83
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Front suspension lining | 27130104471 | 2 |
| 2 | Plate | 27130117291 | 2 |
| 3 | Retaining ring | 27130117601 | 1 |
| 4 | Pipe | 27130117631 | 1 |
| 5 | Pin GB91-4*45EpZn-Q235A | 4016000057 | 2 |
| 6 | Plate | 27130119932 | 4 |
| 7 | Grease nipple JB7940.1-M10*1 | 4030000065 | 2 |
| 8 | Butter nozzle cap JXHF-00006 | 4120000015 | 2 |
| 9 | U-polit | 27130117912 | 2 |
| 10 | Adjustment shim | 27130103081 | 1 |
| 11 | Tiltable left-mounted cab lg13-jss-5893 | 27130158931 | 1 |
| 12 | Adjustment shim 1 | 27130103091 | 1 |
| 13 | Bolt GB5782-M10*70EpZn-8.8 | 4011000051 | 4 |
| 14 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 15 | Bolt GB5783-M14*45EpZn-8.8 | 4011000203 | 12 |
| 16 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 8 |
| 17 | Bolt GB5782-M10*110EpZn-8.8 | 4011000797 | 8 |
| 18 | Bolt GB16674.1-M5*16EpZn-8.8 | 4011010372 | 8 |
| 19 | Bolt GB5783-M14*60flZnyc-12.9-480 | 4011010612 | 8 |
| 20 | Nut GB9459-M24*2-8 | 4013000274 | 2 |
| 21 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 24 |
| 22 | Sign | 27130120992 | 1 |
| 23 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 12 |
| 24 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 8 |
| 25 | Washer GB93-10-65Mn | 4015000025 | 16 |
| 26 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 27 | Washer GB97.1-24EpZn-300HV | 4015000167 | 2 |
| 28 | Plate | 27130121032 | 1 |
| 29 | Left rear suspension assembly | 27130117861 | 1 |
| 30 | Right rear suspension assembly | 27130117891 | 1 |
| 31 | Lamp bonnet | 27130105321 | 2 |
| 32 | Mechanical lock assy | 4190002377 | 2 |
| 33 | Roller alxe | 27130133601 | 2 |
| 34 | Sping | 27130117641 | 1 |
