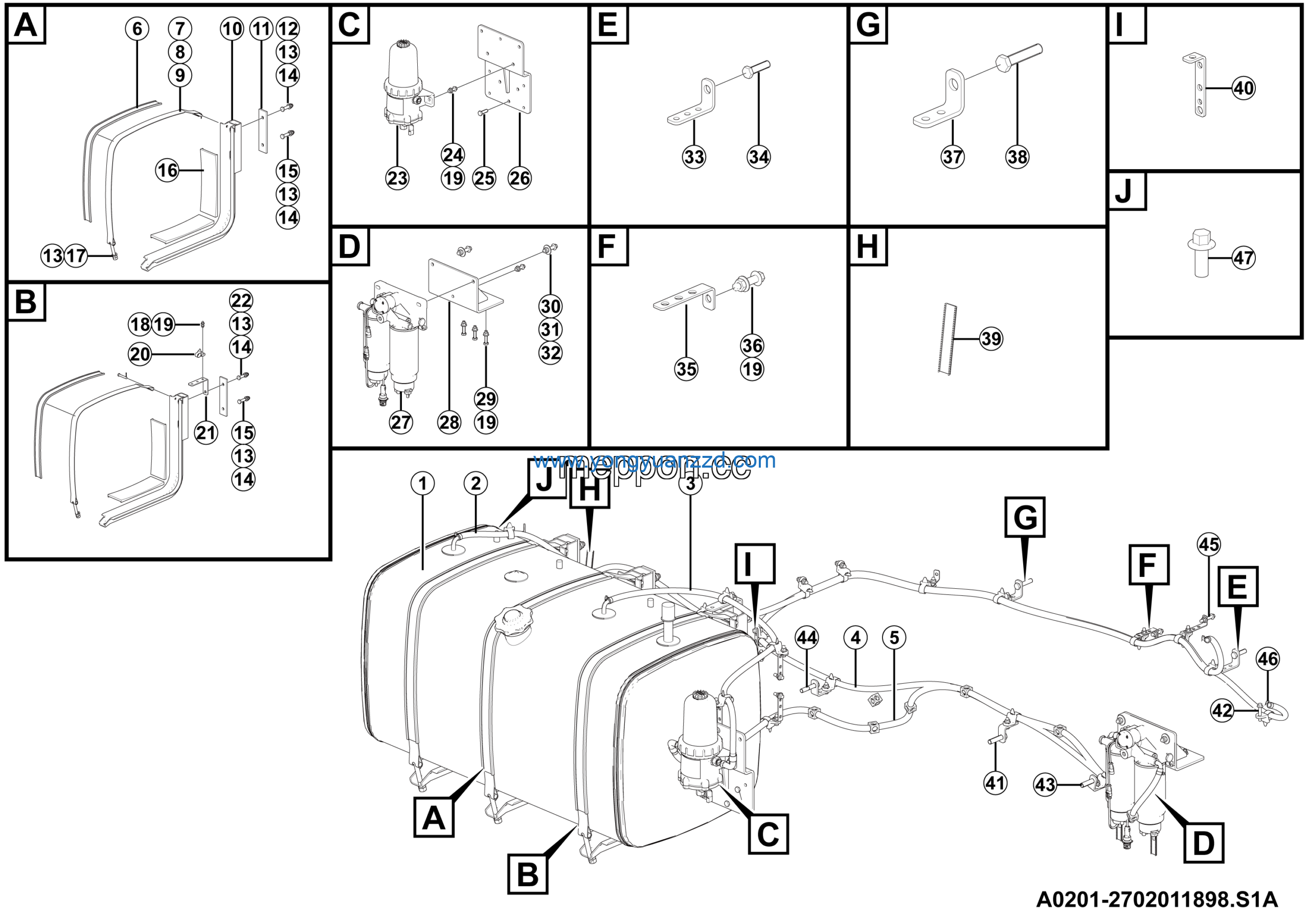

LGMG MT86H 2025 – Fuel tank assy – A0201-2702011898.S1A
Category: 2025 > MT86H > M086HW3A0A022
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Fuel tank bracket assy | 4110000118 | 3 |
| 2 | Backing plate | 27020101971 | 2 |
| 3 | Bolt GB5783-M16*75EpZn-10.9 | 4011010232 | 3 |
| 4 | Washer GB97.1-16EpZn-300HV | 4015000181 | 9 |
| 5 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 6 |
| 6 | Bolt GB5782-M16*85EpZn-10.9 | 4011010349 | 2 |
| 7 | Flap | 4110000122 | 6 |
| 8 | Nut GB6170-M16EpZn-8 | 4013000016 | 6 |
| 9 | Bolt GB16674.1-M10*30flZnyc-8.8-480 | 4011010712 | 23 |
| 10 | Nut GB6177.1-M10flZnyc-8-480 | 4013010375 | 33 |
| 11 | Iron fuel tank 530L LG02-RYX-04 | 4190707631 | 1 |
| 12 | Cable tie HS-J117 | 4130704969 | 19 |
| 13 | Plate | 27240108821 | 1 |
| 14 | Bolt GB5782-M16*80EpZn-10.9 | 4011000438 | 1 |
| 15 | Water separator-FH23029 | 4190709085 | 1 |
| 16 | Bolt GB16674.1-M10*35flZnyc-8.8-480 | 4011011104 | 5 |
| 17 | Bolt GB5786-M12*1.5*35EpZn-8.8 | 4011010010 | 3 |
| 18 | Welding of coarse filter support | 27020111731 | 1 |
| 19 | Engine fuel filter | 4110702781 | 1 |
| 20 | Support | 27020104141 | 1 |
| 21 | Bolt GB5783-M10*50flZnyc-8.8-480 | 4011010976 | 3 |
| 22 | Fuel tube LZB103-14*4200-P | 4049010241 | 1 |
| 23 | Bolt GB16674.1-M12*55flZnyc-8.8-480 | 4011011134 | 2 |
| 24 | Washer GB96.1-12flZnyc-300HV-480 | 4015010286 | 2 |
| 25 | Nut GB6185.1-M12flZnyc-8-480 | 4013010358 | 2 |
| 26 | Plate | 27020109941 | 1 |
| 27 | Bolt GB5783-M14*50EpZn-8.8 | 4011000338 | 1 |
| 28 | Holder | 27200147051 | 3 |
| 29 | Bolt GB16674.1-M10*40flZnyc-8.8-480 | 4011011086 | 1 |
| 30 | Plate | 27020110001 | 4 |
| 31 | BOLT GB5783-M14*65flZnyc-12.9-480 | 4011010546 | 1 |
| 32 | String casing | 27140105021 | 3 |
| 33 | Fuel hose 22*4*1600 | 27020119041 | 1 |
| 34 | Plate | 27010113352 | 7 |
| 35 | Bolt GB5783-M16*65EpZn-8.8 | 4011000421 | 1 |
| 36 | Bolt GB16674.1-M10*55EpZn-8.8 | 4011000473 | 1 |
| 37 | Bolt GB5783-M16*60EpZn-10.9 | 4011010205 | 1 |
| 38 | Bolt GB5782-M14*70flZnyc-12.9-480 | 4011010561 | 1 |
| 39 | Bolt GB16674.1-M10*55flZnyc-8.8-480 | 4011011009 | 1 |
| 40 | Hose clamp JB8870-D20 | 4017000010 | 6 |
| 41 | Bolt GB16674.1-M8*20flZnyc-8.8-480 | 4011010966 | 1 |
| 42 | Fuel hose 22*4*5800 | 27020119061 | 1 |
| 43 | Fuel hose 22*4*3300 | 27020119051 | 1 |
| 44 | Flap | 4110000121 | 3 |
| 45 | Cable tie assy | 4110000119 | 3 |
| 46 | Pin | 4110000120 | 3 |
| 47 | Pin GB91-3.2*22EpZn-Q235A | 4016000183 | 3 |
