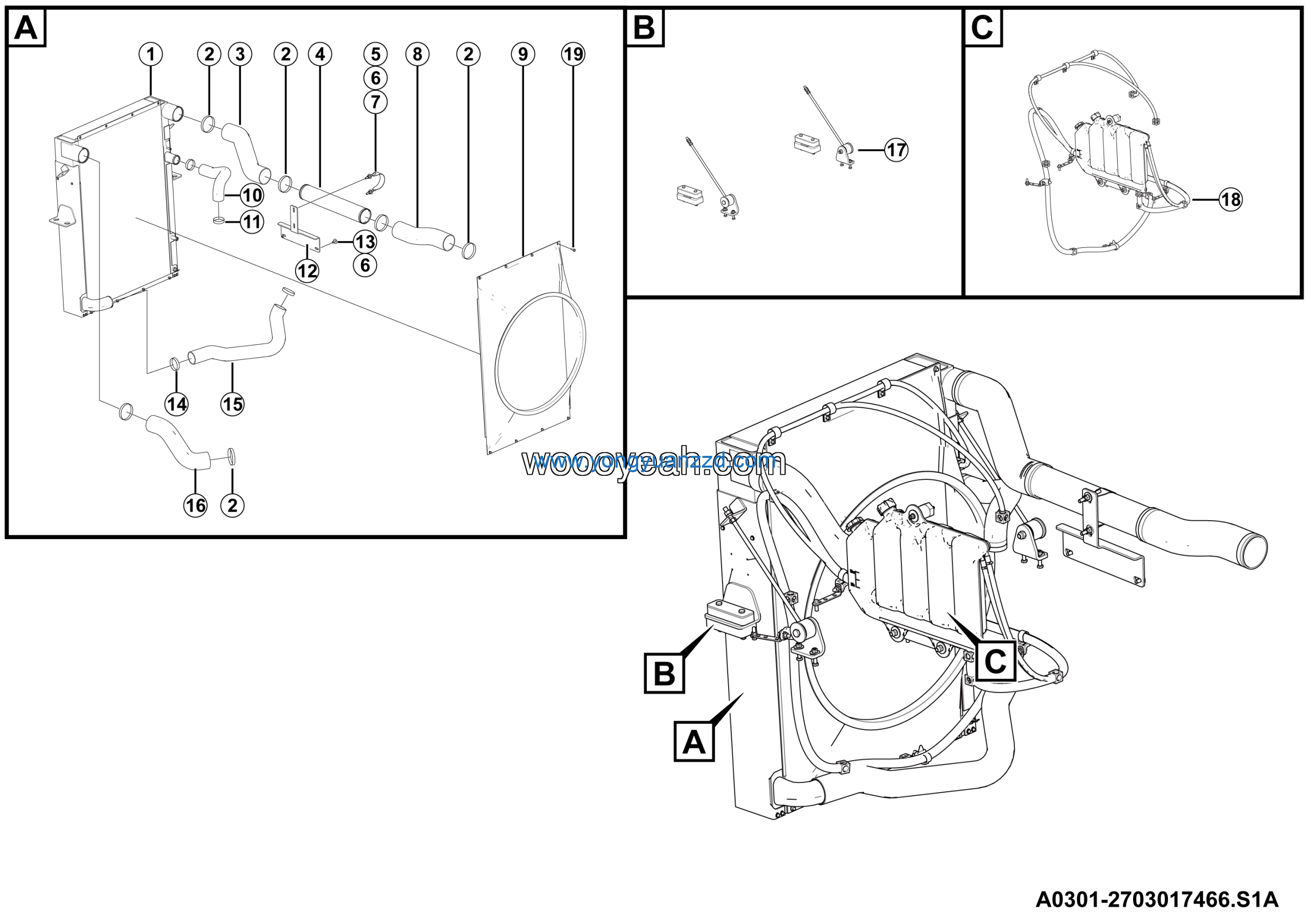

LGMG MT86H 2025 – Water radiator assy – A0301-2703017466.S1A
Category: 2025 > MT86H > M086HWF31
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27030126381 | 1 |
| 2 | Butterfly spring clamp φ57-φ79 | 4190708163 | 2 |
| 3 | Bracket, fixing radiator pipe | 27030134511 | 1 |
| 4 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 5 | Butterfly spring clamp φ70-φ92 | 4190708164 | 2 |
| 6 | Hose 85*5 | 27030174701 | 1 |
| 7 | Pipe | 27030105993 | 1 |
| 8 | Cooler assemble support | 27030109981 | 1 |
| 9 | Expansion tank assy | 27030174681 | 1 |
| 10 | Bolt GB16674.1-M8*25flZnyc-8.8-480 | 4011010994 | 8 |
| 11 | Radiator assy | 4110001572 | 1 |
| 12 | Butterfly spring clamp φ93-φ118 | 4190708166 | 6 |
| 13 | Inlet hose | 27030137102 | 1 |
| 14 | Inlet pipe, radiator, outlet pipe,compressor to inlet pipe,raidator | 27030134531 | 1 |
| 15 | Exhaust pipe strap | 27240102332 | 1 |
| 16 | Washer GB96.1-10EpZn-300HV | 4015000197 | 4 |
| 17 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 18 | Gas compressor outlet hose | 27030137091 | 1 |
| 19 | Glass fiber Reinforced plastic wind guide cover | 4110001522 | 1 |
