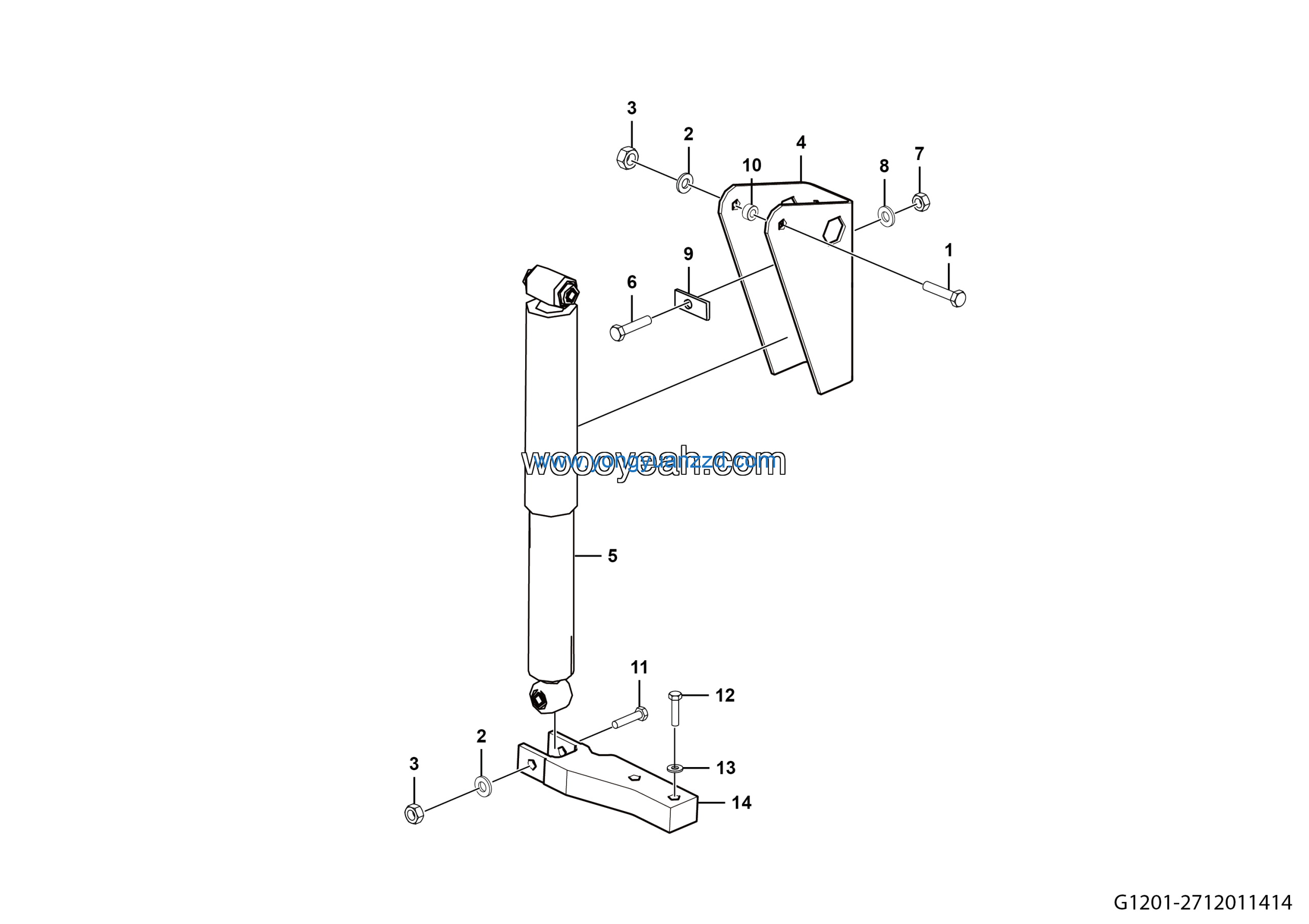

LGMG MT86H Mine Truck – Absorber installation assy – G1201-2712011414
Category: Mine Truck > MT86H > M086HWF10
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Sleeve | 27120114271 | 4 |
| 2 | BOLT GB5785-M24*1.5*110flZnyc-12.9-480 | 4011010575 | 2 |
| 3 | BOLT GB5785-M20*1.5*80flZnyc-12.9-480 | 4011010586 | 4 |
| 4 | Washer GB97.1-20EpZn-300HV | 4015000176 | 4 |
| 5 | Stents under shock absorber | 27120115631 | 2 |
| 6 | BOLT GB5785-M24*1.5*180flZnyc-12.9-480 | 4011010574 | 2 |
| 7 | Washer GB97.1-24EpZn-300HV | 4015000167 | 4 |
| 8 | Nut GB6185.2-M24*1.5flZnyc-12-480 | 4013010258 | 4 |
| 9 | Shock absorber upper bracket assembly | 27120114231 | 2 |
| 10 | Telescopic shock absorber assy | 4110001240 | 2 |
| 11 | Bolt GB5786-M16*1.5*60flZnyc-12.9-480 | 4011010585 | 8 |
| 12 | Nut GB6185.2-M16*1.5flZnyc-12-480 | 4013010255 | 8 |
| 13 | Washer GB97.1-16EpZn-300HV | 4015000181 | 8 |
| 14 | Base plate | 27120114261 | 4 |
