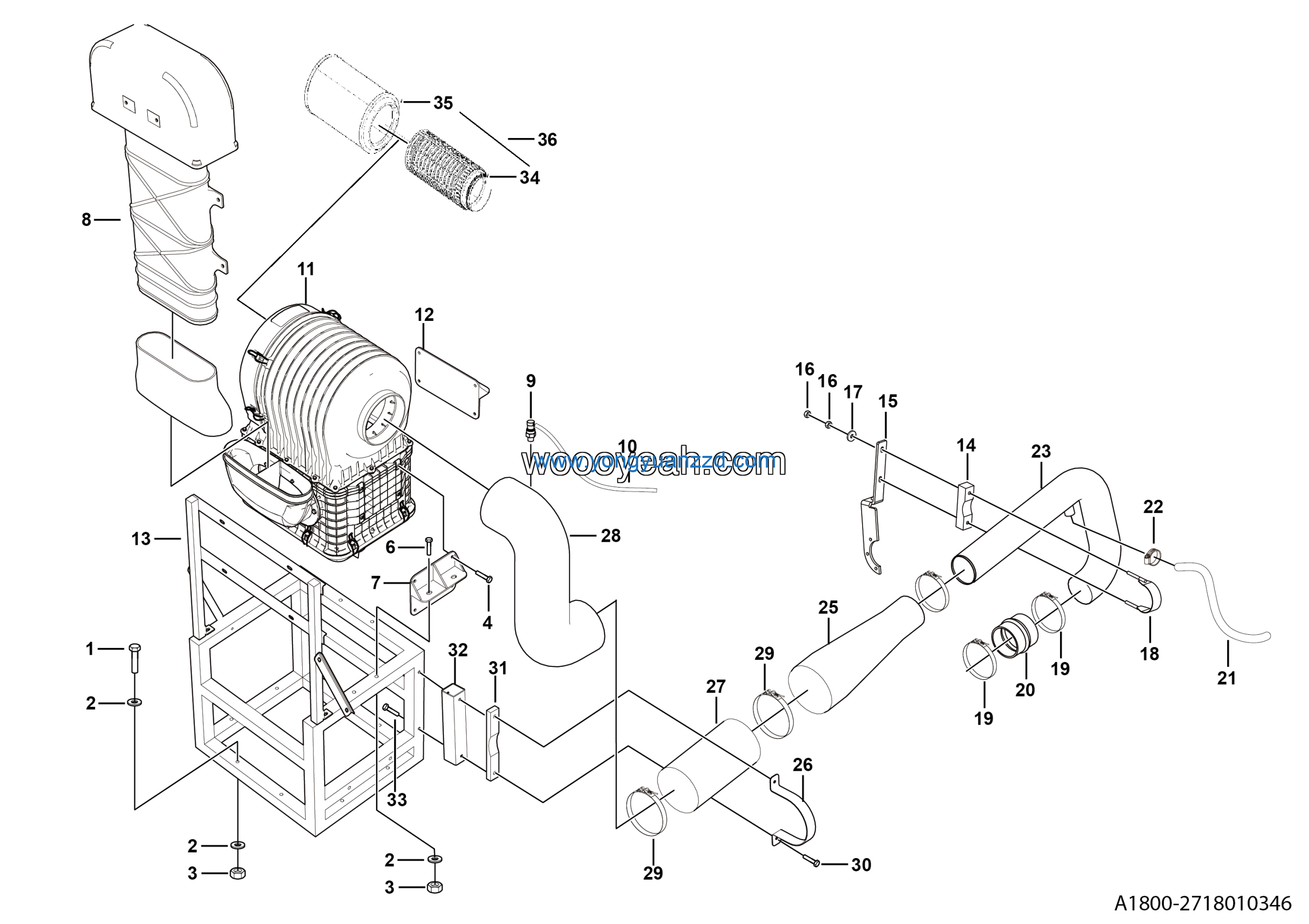

LGMG MT86H Mine Truck – Air filter assy – A1800-2718010346
Category: Mine Truck > MT86H > M086HWF13
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Wire | 27200107621 | 1 |
| 2 | Air filter assy（Donaldson） | 4190002628 | 1 |
| 3 | Support assembly ⅰ | 27180102961 | 1 |
| 4 | Fixed bracket | 4190002592 | 1 |
| 5 | Block | 27180102272 | 1 |
| 6 | ASSEMBLY | 27180102682 | 1 |
| 7 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 6 |
| 8 | Washer GB96.1-10EpZn-300HV | 4015000197 | 6 |
| 9 | Exhaust pipe strap | 27240102331 | 1 |
| 10 | No longer used | 4019010001 | 3 |
| 11 | Bolt GB5782-M12*110EpZn-8.8 | 4011000262 | 8 |
| 12 | Pipe | 27180102181 | 1 |
| 13 | Pipe | 27180102832 | 1 |
| 14 | Hose clamp JB8870-D32 | 4017000011 | 2 |
| 15 | Protecting cover | 27180102281 | 1 |
| 16 | Inlet air steel pipe of engine | 27180103501 | 1 |
| 17 | Connecting pipe | 27180103491 | 1 |
| 18 | Clamp 190 | 27180103511 | 1 |
| 19 | Connecting steel tube | 27180103481 | 1 |
| 20 | Outlet air pipe of filter | 27180103471 | 1 |
| 21 | T-bolt clamp φ188-φ196 | 4190002630 | 3 |
| 22 | Washer GB96.1-12EpZn-300HV | 4015000186 | 12 |
| 23 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 2 |
| 24 | Rubber pad | 27180103521 | 1 |
| 25 | Rectangular tube 60*60-4 | 27180103531 | 1 |
| 26 | Bolt GB5782-M10*70EpZn-8.8 | 4011000051 | 2 |
| 27 | Air filter safety element（Donaldson） | 4110002111 | 1 |
| 28 | Air filter primary element 1001041604（Donaldson） | 4110002110 | 1 |
| 29 | Air filter element assy（Donaldson） | 4110702583 | 1 |
| 30 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 12 |
| 31 | Bolt GB16674.1-M10*25EpZn-12.9 | 4011010295 | 8 |
| 32 | Connecting hose | 4190002594 | 1 |
| 33 | Bolt GB5782-M12*75EpZn-8.8 | 4011000874 | 4 |
| 34 | Support assembly ⅱ | 27180103021 | 1 |
| 35 | High level intake assy | 4190002593 | 1 |
| 36 | Vacuum level alarm | 4110001427 | 1 |
