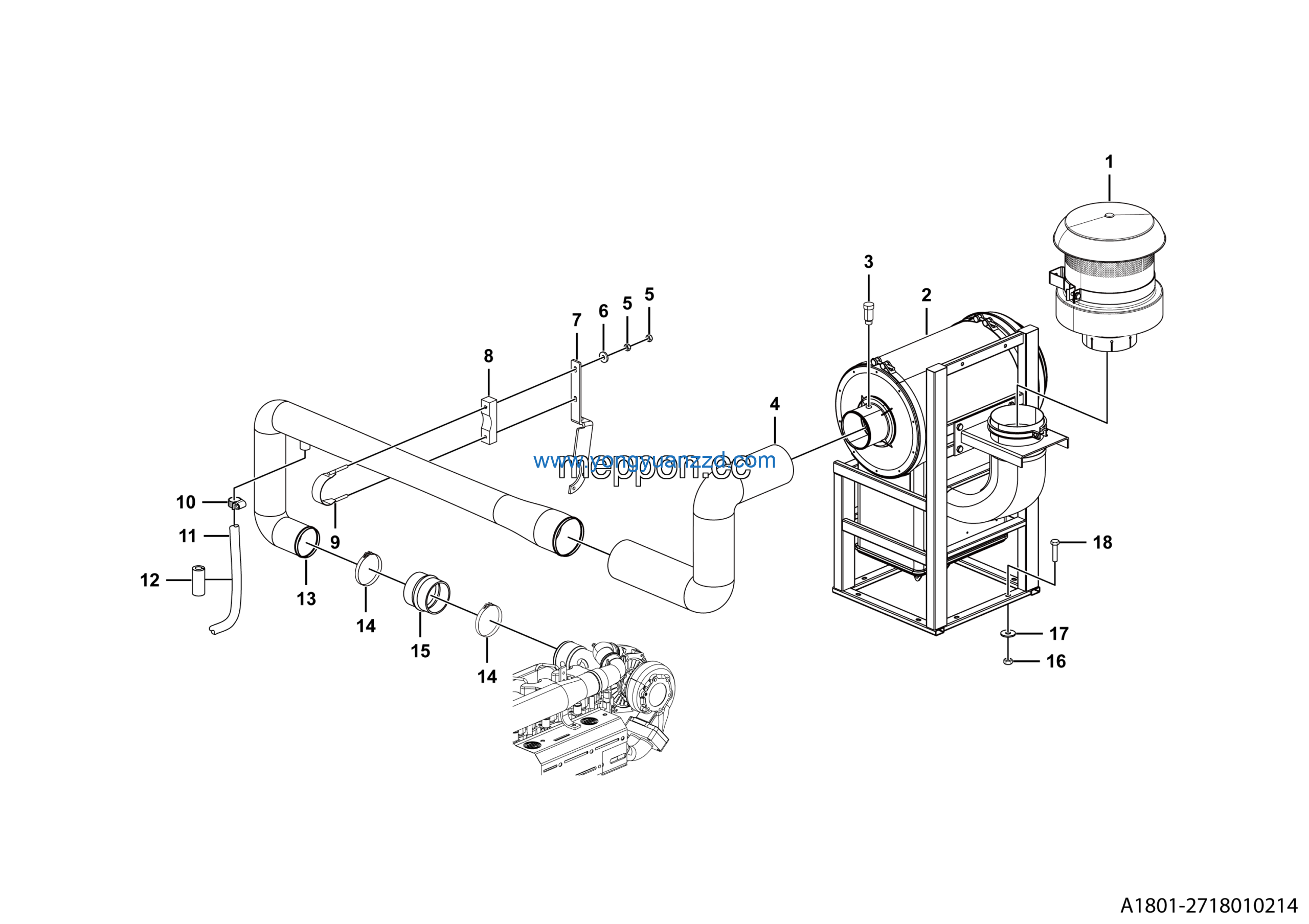

LGMG MT86H Mine Truck – Air filter assy – A1801-2718010214
Category: Mine Truck > MT86H > M086HWE93
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Hose clamp JB8870-D32 | 4017000011 | 2 |
| 2 | Pipe | 27180102833 | 1 |
| 3 | Protecting cover | 27180102281 | 1 |
| 4 | Pipe | 27180102511 | 1 |
| 5 | No longer used | 4019010001 | 2 |
| 6 | Pipe | 27180102181 | 1 |
| 7 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 8 | Washer GB96.1-12EpZn-300HV | 4015000186 | 8 |
| 9 | Bolt GB5782-M12*90EpZn-8.8 | 4011000414 | 8 |
| 10 | Cyclone coarse filter subassy 1000293601 | 4110001274 | 1 |
| 11 | Dust air filter assy 1000777278 | 4110001324 | 1 |
| 12 | Air filter blockage alarm 1000267954 | 4110001277 | 1 |
| 13 | Connecting hose | 4190001795 | 1 |
| 14 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 15 | No longer used | 4015000152 | 2 |
| 16 | ASSEMBLY | 27180102682 | 1 |
| 17 | Block | 27180102272 | 1 |
| 18 | Exhaust pipe strap | 27240102332 | 1 |
