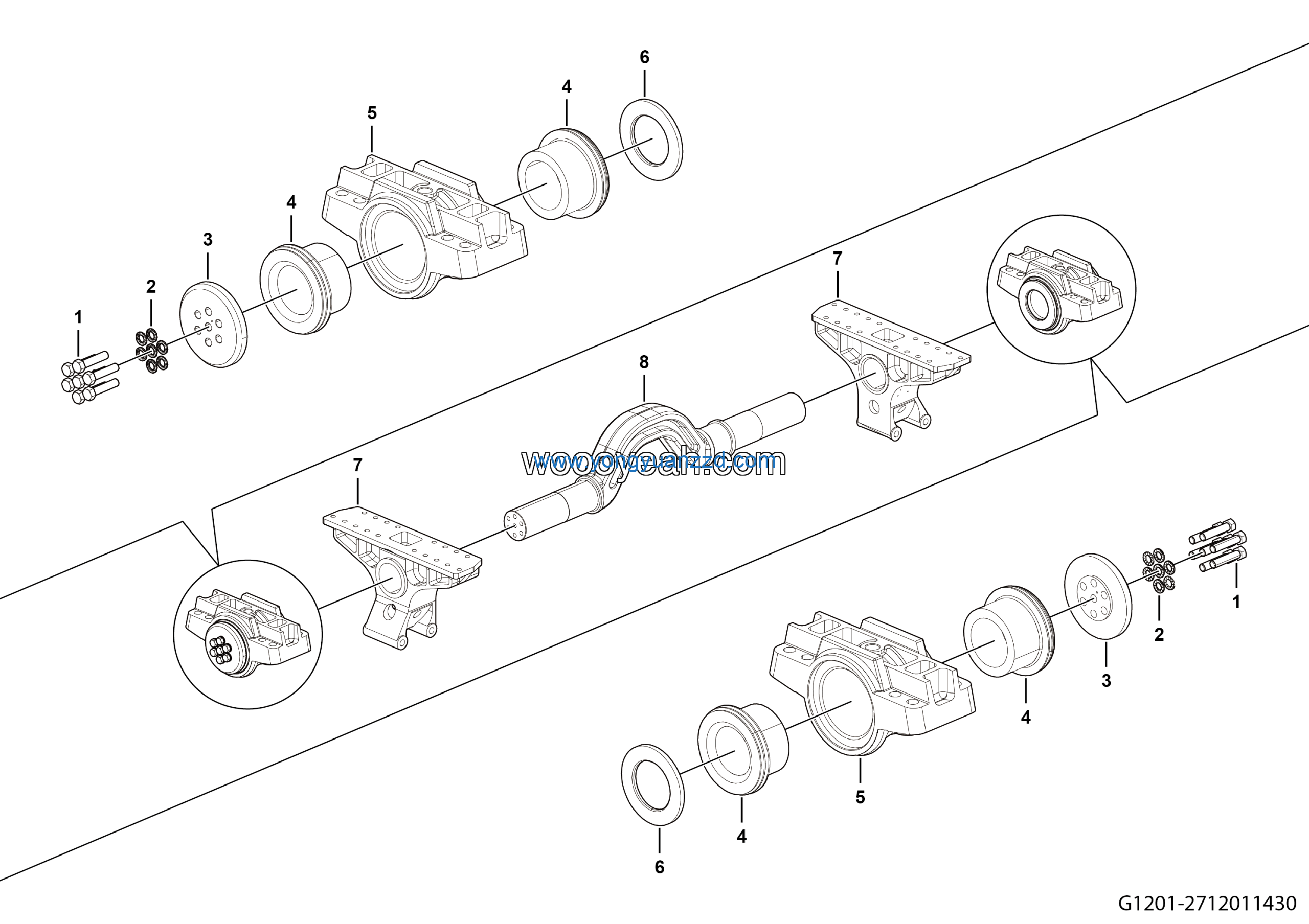

LGMG MT86H Mine Truck – Balance shaft – G1201-2712011430
Category: Mine Truck > MT86H > M086HWD12
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5786-M20*1.5*90-12.9 | 4011010455 | 14 |
| 2 | NORD-LOCK WASHER NL20 | 4015010255 | 14 |
| 3 | Cover | 27120114351 | 2 |
| 4 | Rubber bearing LG12-130 | 4190001651 | 4 |
| 5 | Balance shaft housing | 27120116751 | 2 |
| 6 | Washer | 27120114332 | 2 |
| 7 | Balance shaft holder | 27120114321 | 2 |
| 8 | Balance shaft | 27120114311 | 1 |
