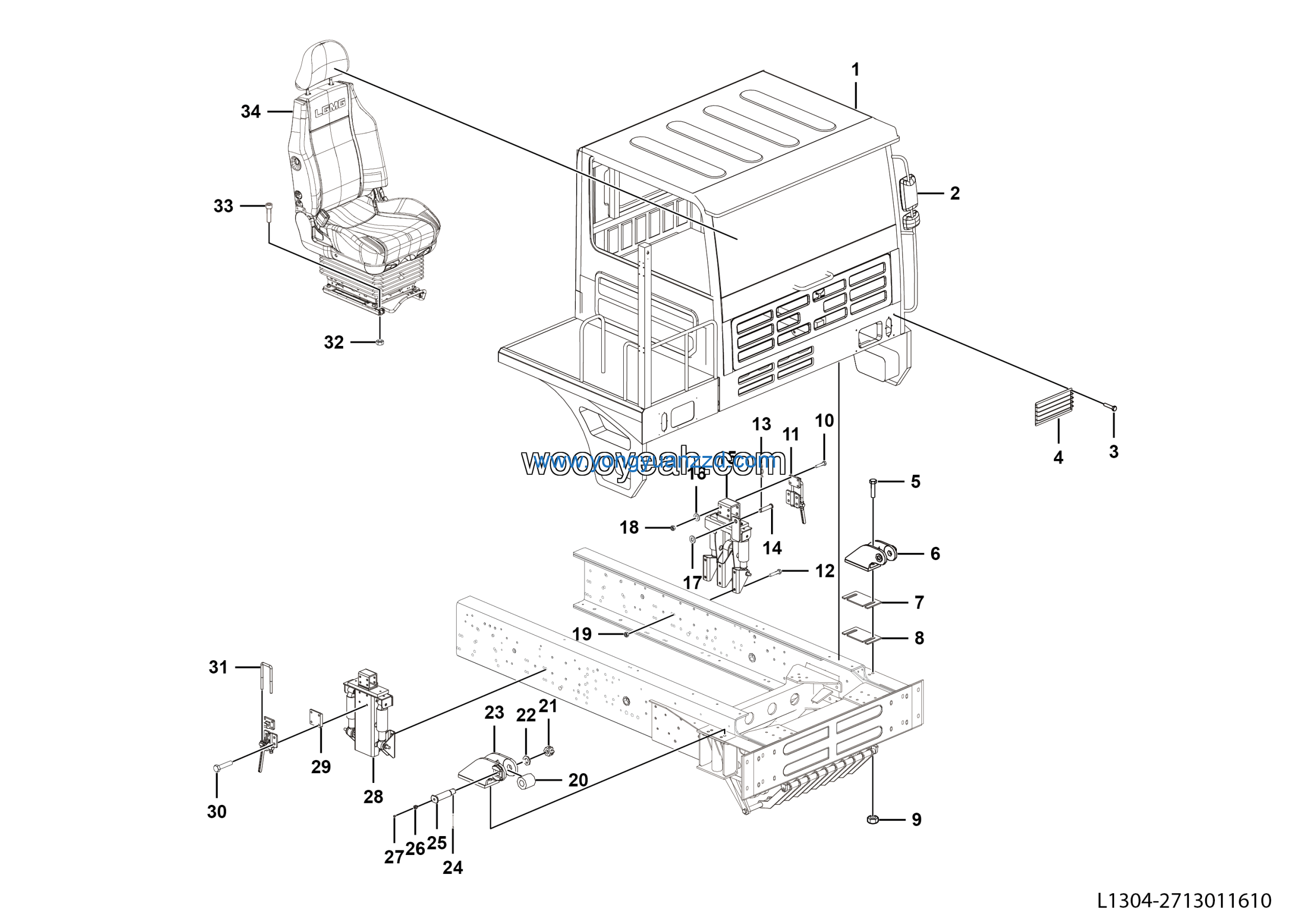

LGMG MT86H Mine Truck – Cab assembly – L1304-2713011610
Category: Mine Truck > MT86H > MT86H
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M10*110EpZn-8.8 | 4011000797 | 8 |
| 2 | Mechanical lock assy | 4190002377 | 2 |
| 3 | Bolt GB5783-M14*45EpZn-8.8 | 4011000203 | 12 |
| 4 | Sping | 27130117641 | 1 |
| 5 | Pipe | 27130117631 | 1 |
| 6 | Left rear suspension assembly | 27130117861 | 1 |
| 7 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 8 | Retaining ring | 27130117601 | 1 |
| 9 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 16 |
| 10 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 12 |
| 11 | Cab | 4190003470 | 1 |
| 12 | Front suspension lining | 27130104471 | 2 |
| 13 | Nut GB9459-M24*2-8 | 4013000274 | 2 |
| 14 | Washer GB97.1-24EpZn-300HV | 4015000167 | 2 |
| 15 | Right roller bracket | 27130102202 | 1 |
| 16 | Pin GB91-4*45EpZn-Q235A | 4016000057 | 2 |
| 17 | Roller axle | 27130102251 | 2 |
| 18 | Grease nipple JB7940.1-M10*1 | 4030000065 | 2 |
| 19 | No longer used | 4030000107 | 2 |
| 20 | Right rear suspension assembly | 27130117891 | 1 |
| 21 | Plate | 27130117291 | 2 |
| 22 | LH rearview mirror assy | 4190002294 | 1 |
| 23 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 8 |
| 24 | U-polit | 27130117912 | 2 |
| 25 | Nut GB6170-M8EpZn-8 | 4013000033 | 4 |
| 26 | Screw GB70.1-M8*25-8.8 | 4014000171 | 4 |
| 27 | Seating（air） | 27130117281 | 1 |
| 28 | Bolt GB16674.1-M5*16EpZn-8.8 | 4011010372 | 8 |
| 29 | Lamp bonnet | 27130105321 | 2 |
| 30 | Bolt GB5782-M14*50EpZn-12.9 | 4011010350 | 8 |
| 31 | Left roller bracket | 27130102192 | 1 |
| 32 | Adjustment shim | 27130103081 | 1 |
| 33 | Adjustment shim 1 | 27130103091 | 1 |
| 34 | Nut GB6185.1-M14EpZn-12 | 4013010213 | 8 |
